• Model NO.：LTE1615-3,4,6,8
• IP Rating：IP67
• Certification：CE, ECE R65 & SAE J845 & R10 Amber
• Colour：White,Red,Blue,Amble,Custom
• Voltage：DC10-30V
• Current：1A or Less
• Mounting：Screw,Permanent
• Transport Package：Carton
• Specification：Multiple Size
• Trademark：SENKEN
• Origin：China
• Production Capacity：6505 Pieces,Month

Basic Info.

Model NO. LTE1615-3/4/6/8 IP Rating IP67 Certification CE, ECE R65 & SAE J845 & R10 Amber Colour White,Red,Blue,Amble,Custom Voltage DC10-30V Current 1A or Less Mounting Screw/Permanent Transport Package Carton Specification Multiple Size Trademark SENKEN Origin China Production Capacity 6505 Pieces/Month

Product Description

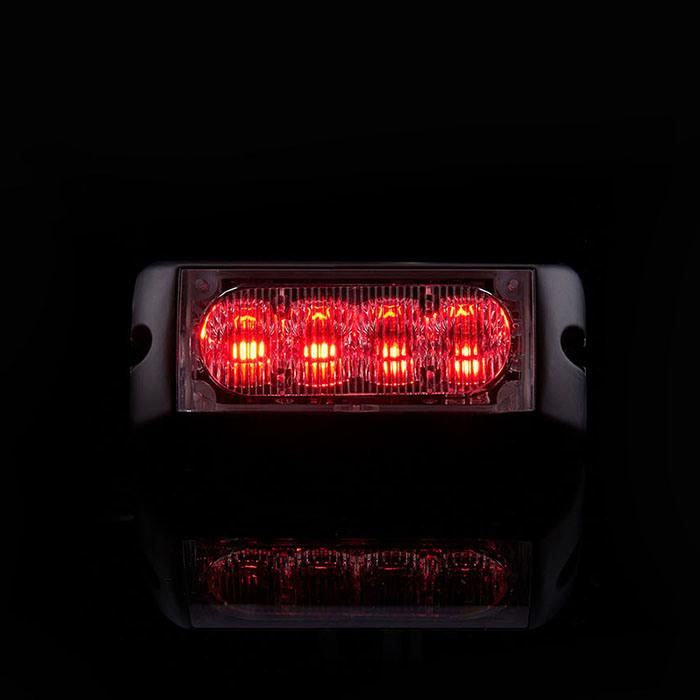

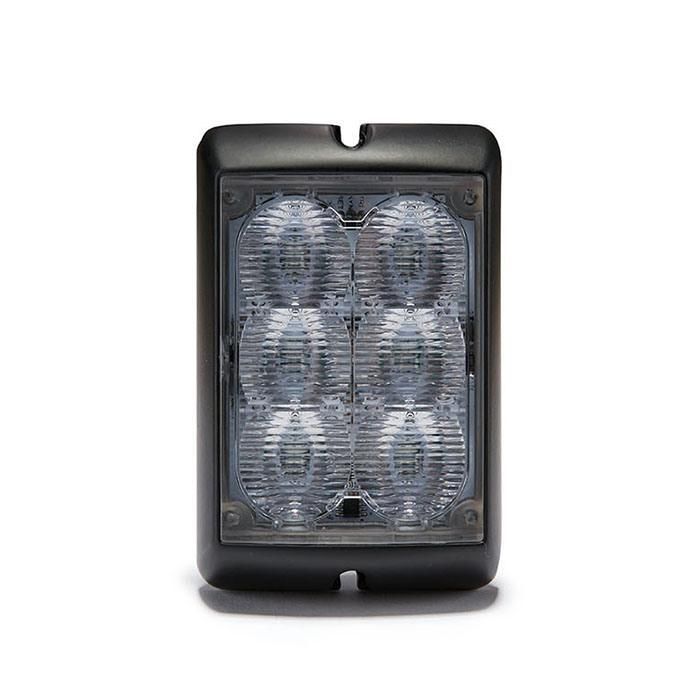

LED Warning Light LTE1615-3/4/6/8

 Features

·High power Gen III led as light source.
·Unique appearance,compact structure and convenient operation.
·With low profile for flexible mounting to meet different applications.
·New structure that have air hole on the inside lens to avoid deformation caused by internal air expansion.
·Several synchronous flash pattern and several asynchronous flash pattern available; It can be customized according to your requirements.
·Black and chrome aluminum housings available.
·Compliant to ECE R65 regulation.

Product










Technical Parameters

Model	LTE1615-3	LTE1615-4	LTE1615-6	LTE1615-8
Working voltage	DC10-30V	DC10V-30V	DC10V-30V	DC10V-30V
Working current	Less than 0.8A	Less than 0.8A	1A	1A
Mounting	Bolt	Bolt	Bolt	Bolt
Flash patterns	13 synchronous and 13 asynchronous	13 synchronous and 13 asynchronous	/	/
Dimension	115*45*26mm	115*45*26mm	/	115*75*27.5mm

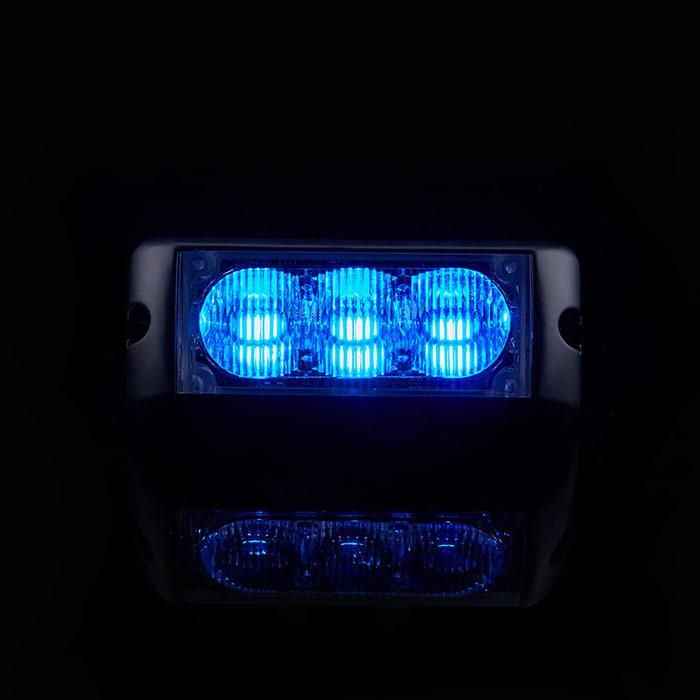

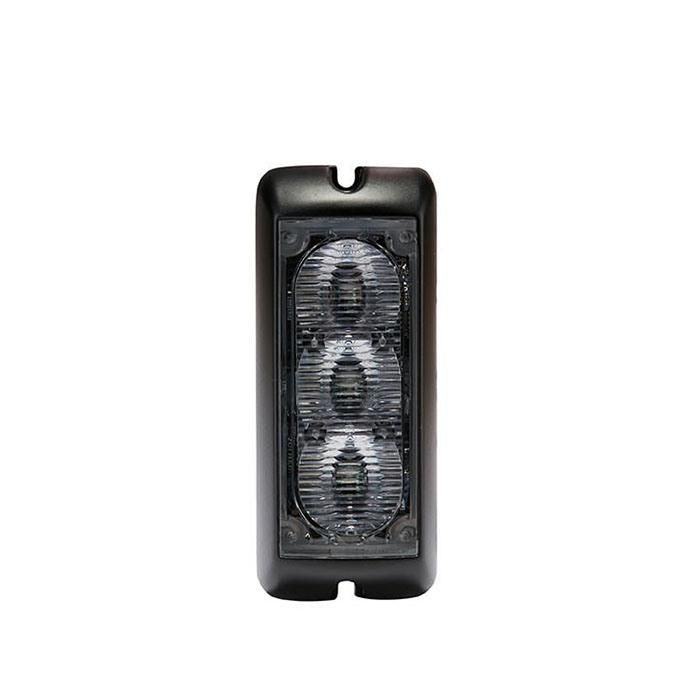

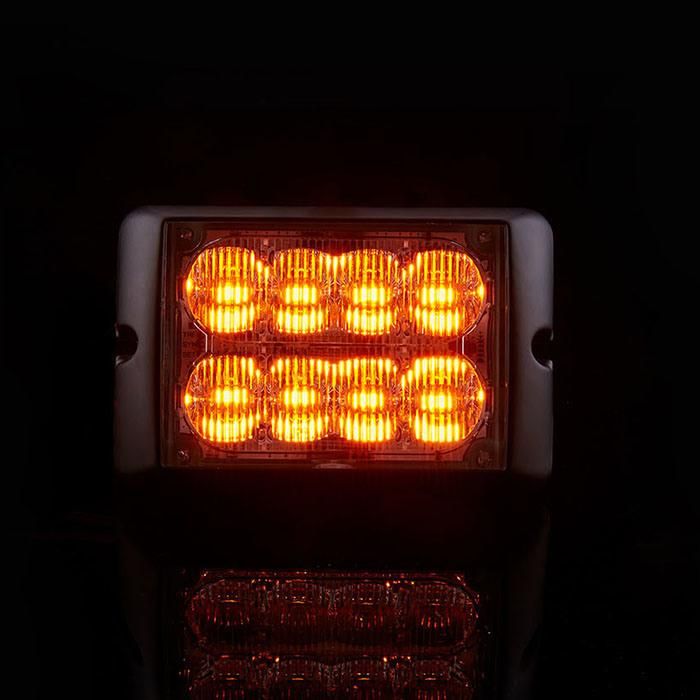

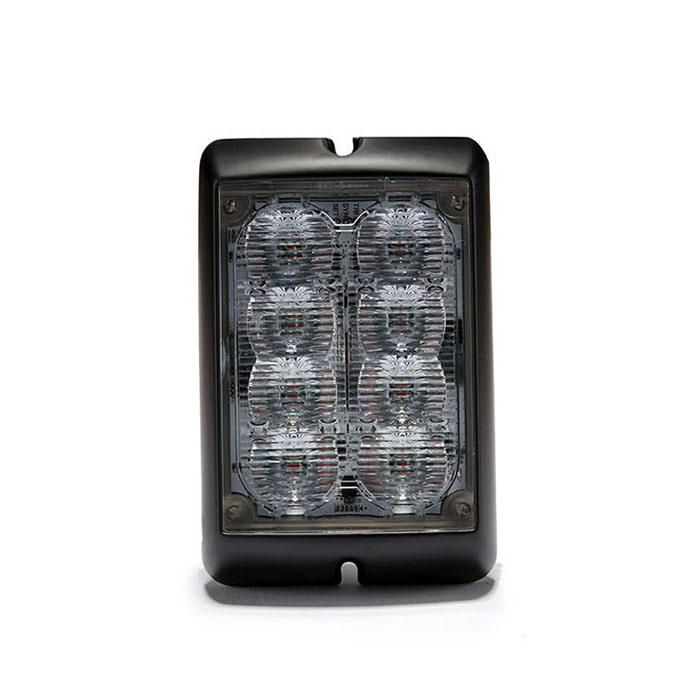

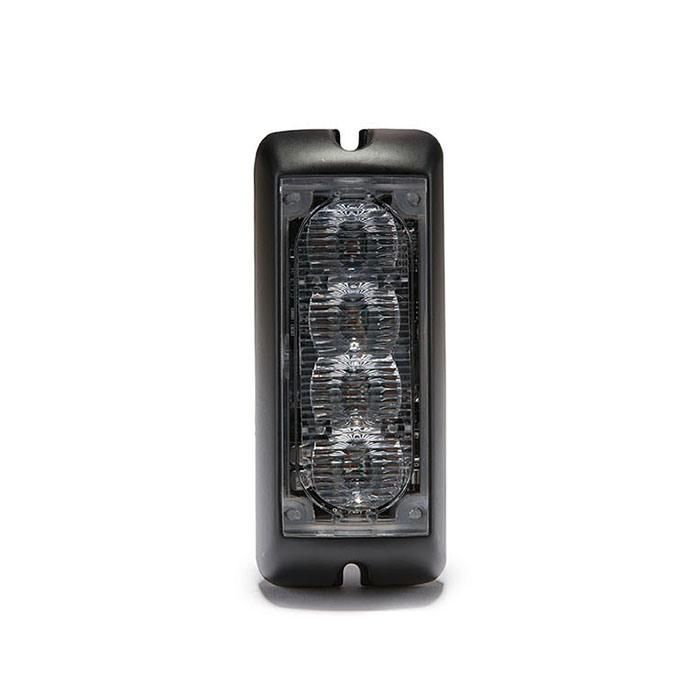

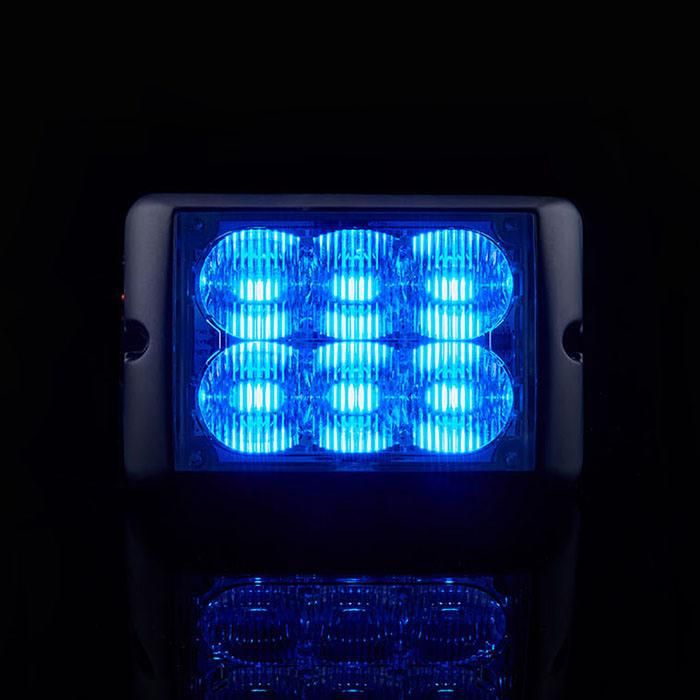

Light source	3pcs 3W LEDs	4pcs 3W LED	6pcs 3W   LED	8pcs 3W   LED
