25W AC12V Synchronous Control Plastic Shell Wall Mounted Vinyl Swimming Pool Light
Shenzhen Heguang Lighting Co., Ltd.- IP Rating：IP68
- Emitting Color：Cool White
- With Light Source：Without Light Source
- Application：Swimming Pool
- Lamp Body Material：Anti-UV PC Cover
- Lampshade Material：ABS Light Body +Anti-UV PC Cover
Base Info
- Model NO.：HG-PL-18X3W-V-T
- Style：Modern Chinese Style
- Base Type：AR111
- Technics：Electroplating
- Voltage：12V
- Certification：CE, FCC, RoHS, VDE, IP68
- Hz：50,60Hz
- Current：2860mA
- Ledchip：3X38mil RGB(3in1) High Light LED
- LED(PCS)：18PCS
- CCT：R:620-630nm,G:515-525nm,B:460-470nm
- Lumen：1200lm
- Warranty：2years
- Wattage：25W
- Transport Package：Transport Packaging
- Specification：310x310x188 mm
- Trademark：birmate
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：50000pieces,Year
Description

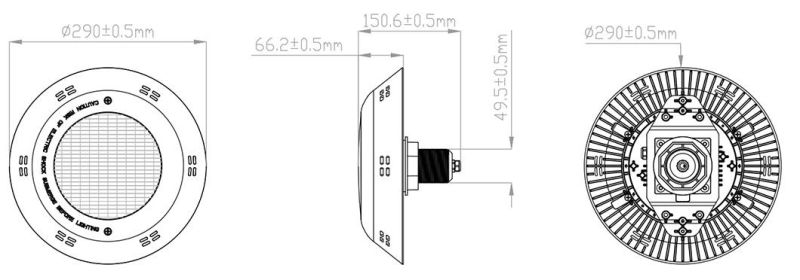

Default: Regardless of positive and negative poles, can be connected arbitrarilyProduct Size :
Advantages:
1. Anti-UV PC cover, excellent yellowing resistance, and durable
2. Environmental ABS material shell, 7 colors for optional.
3. IP68 Structure waterproof, without resin-filled
4. Patented 4-layers waterproof structure, more stable than resin-filled pool lights
5. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
6. All products succeeded in 10m deep water testing before delivery.
7. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
8. Constant current driver, comply with CE & EMC standard.
9. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.

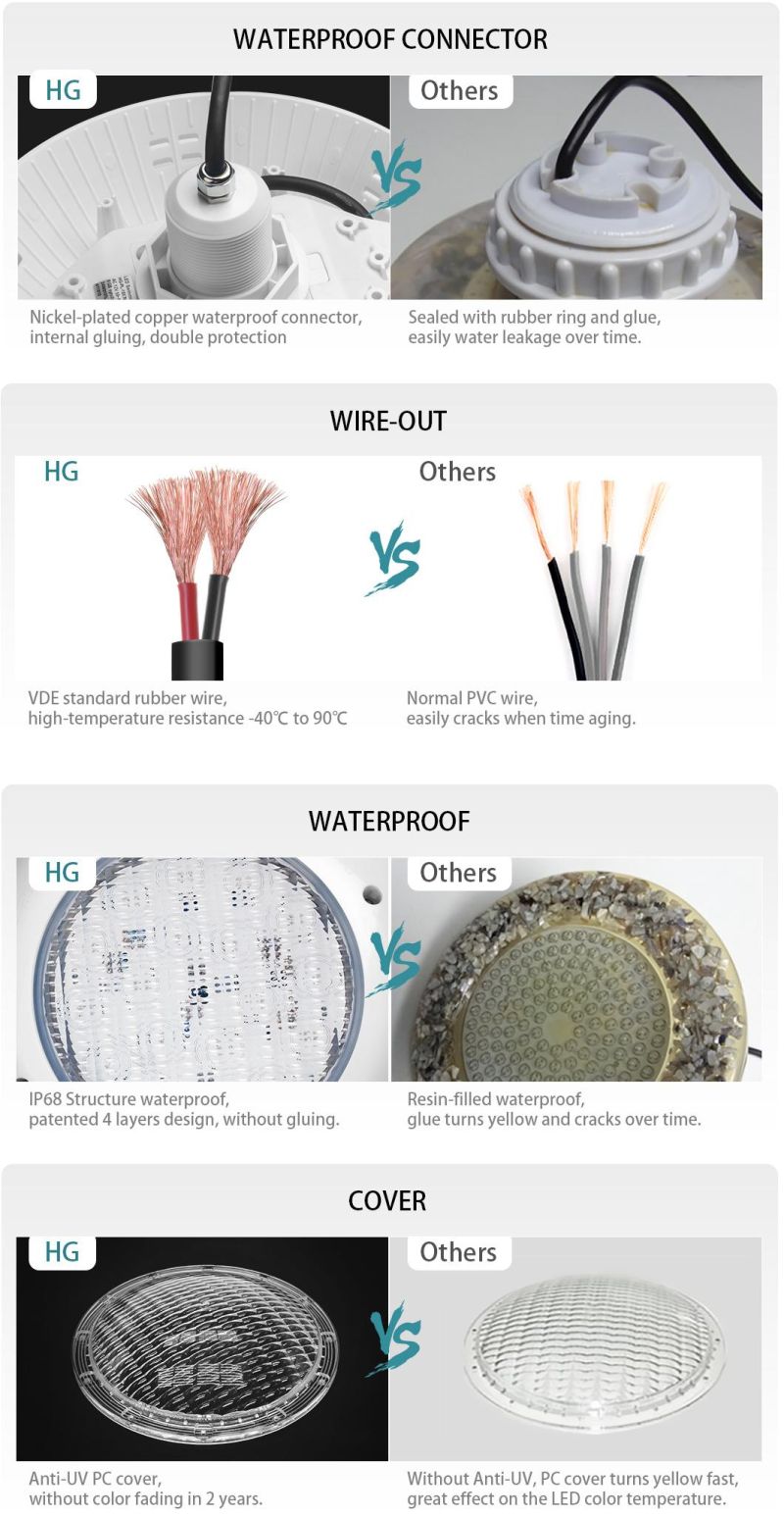

compared to others:

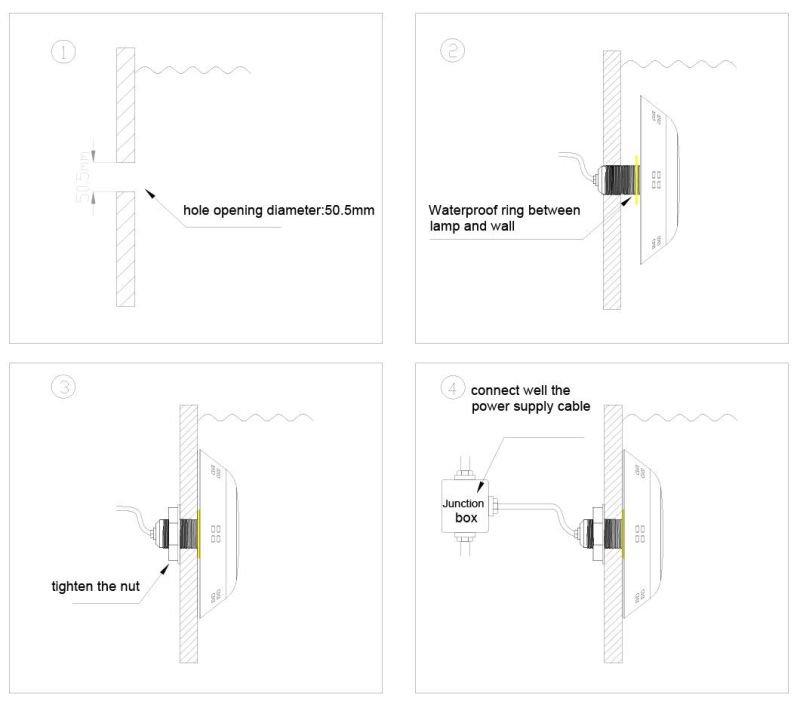

Installation:

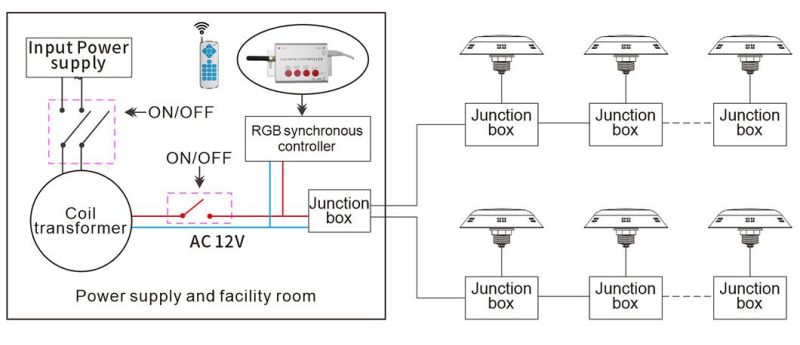

Connection Diagram:

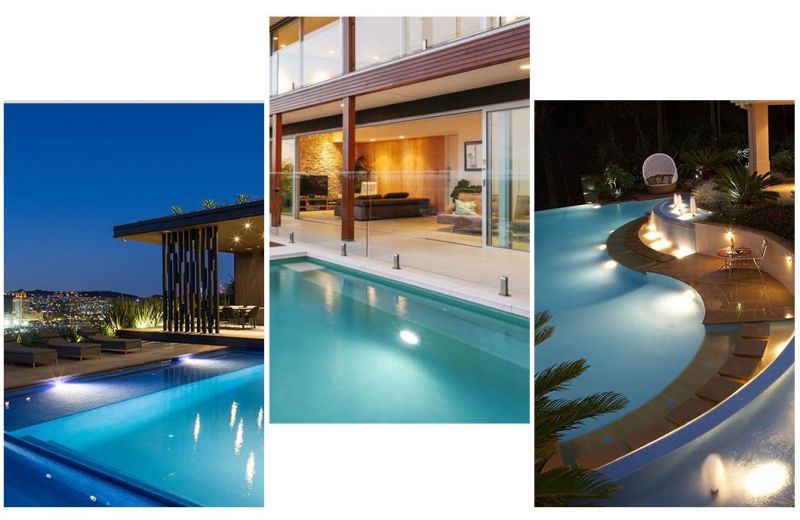

Application:
ip68 led surface mounted swimming pool light use in concrete pool, underwater IP68, Concrete pool ,Vinyl pool Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
About Company:
In 2006, we began working on LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only China LED Swimming pool light manufacturer who is UL listed.
Main Products:
1. UL Certificated pool light
2. LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spotlight
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10. RGB Led Controller
11. IP68 par56 housing/Niche/fixture
Certifications & Glory:
1. UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68, IK10, VDE
2. ISO9001 certification
3. Private model products
4. Structure waterproof technology
5. Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market, and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit the factory.
Heguang LED pool lighting Certification :
Heguang Exhibitions :
We attend the lighting fair/spa fair all over the world ,such as the Germany lighting fair,US-LAS VEGAS lighting fair ,HK lighting fair ,Spain lighting fair ,France lighting fair ,etc .we aim to a win-win cooperation from all of our clients!
Why Choose Us
1.Heguang with 14 years experience specialized in LED pool light/IP68 underwater lights
2.Professional R&D team,Patent design with private mold, structure waterproof technology instead of glue filled
3.Experienced in different OEM/ODM project, artwork design for free
4.Strict quality control : 30 Steps inspection before shipment,reject ratio ≤0.3%
5.Quick response to the complains ,worry-free after-sale service
6.The only one China pool light supplier who listed in UL (for US and Canada)
