Floodlight Aluminum Alloy 50W 220V 50/60Hz Waterproof IP66 LED Light Ik09 6500K 7000lm for Mark II 3G Ex Nr Iic T5 Gc / II 3D Ex Td Iiic T95 DC LED Light

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Lamp Body Material：Aluminum Alloy
  • IP Rating：IP66
  • Base Type：LED Engine
  • Irradiated Area：≥30m²
  • Input Voltage：220v
  • Power：60-100w

Base Info

  • Model NO.：LCD-BHD6610-50-LNXXX
  • Color Temperature：3000K 4000K 6500K
  • Emitting Color：Warm White, , Neutral White, Cool White
  • LED Chips Brand：Osram
  • Certification：CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL
  • Transport Package：Carton Box
  • Specification：330x255x166mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

Electrical parametersProduct typeRated input voltageRated input currentVoltage frequencyRated powerLED input currentPFTHDLCD-BHD6610-50-LNXXX100~277VAC1~0.2150/60Hz50W600mA>0.98<10%LCD-BHD6610-80-LNXXX100~277VAC1~0.3250/60Hz80W600mA>0.98<10%LCD-BHD6610-100-LNXXX100~277VAC1.1~0.3750/60Hz100W600mA>0.98<10%LCD-BHD6610-120-LNXXX100~277VAC1.4~0.4550/60Hz120W600mA>0.98<10%LCD-BHD6610-150-LNXXX100~277VAC1.65~0.550/60Hz150W600mA>0.98<10%LCD-BHD6610-200-LNXXX100~277VAC1.9~0.8550/60Hz200W600mA>0.98<10%LCD-BHD6610-250-LNXXX100~277VAC1.85~0.7850/60Hz250W600mA>0.98<10%
Photometric parametersOptical dataProduct typeColor temp.CRICCT(K)luminous flux(lm)Beam angle(°)LCD-BHD6610-50-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K775030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-80-LNXXXwarm / Neutral / cool 83/80/723000k / 4000K / 6500K1240030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-100-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K1550030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-120-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K1920030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-150-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K2400030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-200-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K3200030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-250-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K4000030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°LCD-BHD6610-300-LNXXXwarm / Neutral  / cool83/80/723000k / 4000K / 6500K4800030°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°General information Product typeSize (mm)Weight(kg)Ambient temp.(ºC)Max.surface temp.      ( test in 25ºC)Temp.classificationIP codeInsulationIK codeLCD-BHD6610-50-LNXXX330x255x166mm10KG- 30ºC~+ 50ºC42T5-T6IP66IIK09LCD-BHD6610-80-LNXXX330x255x166mm10KG- 30ºC~+ 50ºC43T5-T6IP66IIK09LCD-BHD6610-100-LNXXX330x255x166mm10KG- 30ºC~+ 50ºC45T5-T6IP66IIK09LCD-BHD6610-120-LNXXX446x306x166mm14.5KG- 30ºC~+ 50ºC46T5-T6IP66IIK09LCD-BHD6610-150-LNXXX446x306x166mm14.5KG- 30ºC~+ 50ºC46T5-T6IP66IIK09LCD-BHD6610-200-LNXXX446x306x166mm14.5KG- 30ºC~+ 50ºC46T5-T6IP66IIK09LCD-BHD6610-250-LNXXX520x360x200mm20.6KG- 30ºC~+ 50ºC45T5-T6IP66IIK09LCD-BHD6610-300-LNXXX520x360x200mm20.6KG- 30ºC~+ 50ºC46T5-T6IP66IIK09

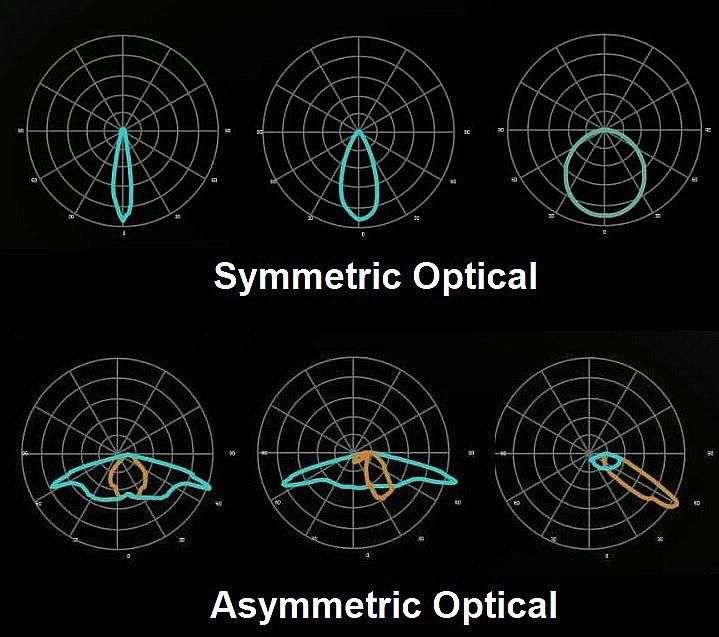

Lighting distribution
Floodlight Aluminum Alloy 50W 220V 50/60Hz Waterproof IP66 LED Light Ik09 6500K 7000lm for Mark II 3G Ex Nr Iic T5 Gc / II 3D Ex Td Iiic T95 DC LED Light

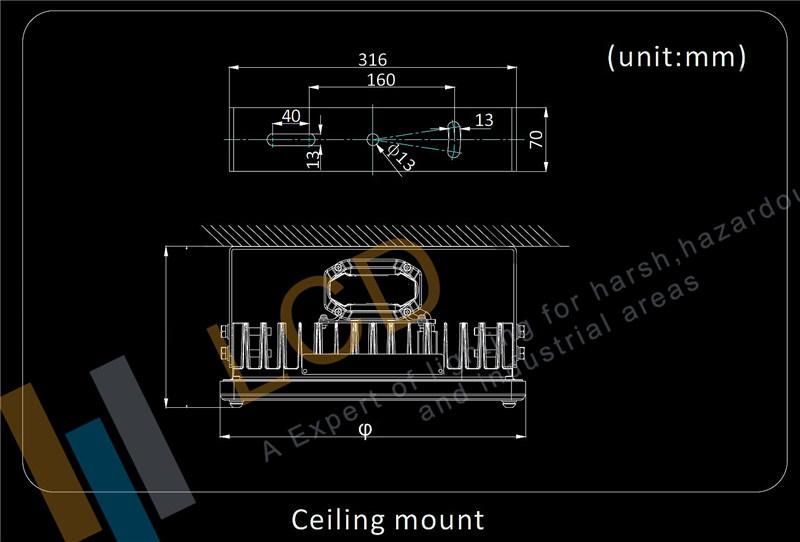

INSTALLATION METHOD
Floodlight Aluminum Alloy 50W 220V 50/60Hz Waterproof IP66 LED Light Ik09 6500K 7000lm for Mark II 3G Ex Nr Iic T5 Gc / II 3D Ex Td Iiic T95 DC LED Light
