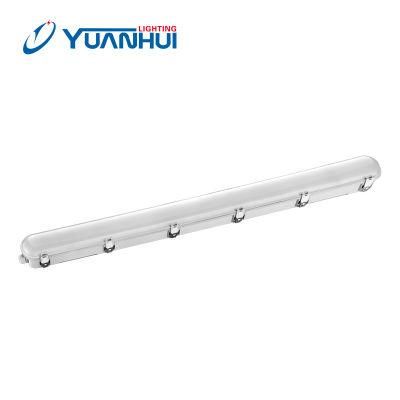

20W 36W 1.2m LED Fixture Connector PC Batten Waterproof 5 Year Warranty Light
Cixi Yuanhui Lighting Electric Co., Ltd.- Application：Parking Lot,Market,Tunnel,etc.
- Type：Efficient-Mirror Tri-proof Light
- Feature：Anti-corrosion, Dust-Proof, Waterproof, Tri-Proof
- Light Body Material：Plastic
- IP：66
- Ik：10
Base Info
- Model NO.：YL08
- Voltage：AC220-240V
- Frequency：50,60Hz
- Diffuser：Polycarbonate
- Housing：Polycarbonate
- Beam Angle：120
- Power：20W,30W,36W,54W,65W,80W
- CRI：>80
- Certification：CE,CB,SAA,ENEC
- Transport Package：Innerbox&Carton
- Specification：GS SAA CCC UL EMC ROHS CE CUL etc
- Trademark：Default is Yuanhui Can be customized
- Origin：Ningbo, China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. YL08 Voltage AC220-240V Frequency 50/60Hz Diffuser Polycarbonate Housing Polycarbonate Beam Angle 120 Power 20W/30W/36W/54W/65W/80W CRI >80 Certification CE/CB/SAA/ENEC Transport Package Innerbox&Carton Specification GS SAA CCC UL EMC ROHS CE CUL etc Trademark Default is Yuanhui Can be customized Origin Ningbo, China HS Code 9405409000 Production Capacity 10000PCS/MonthProduct Description
| Model No. | Power | Lumen | Colour temperature | Voltage | Size(mm) |
| YL08-20W-650 | 20 | 2500 | 2700K-6500K | AC220-240V,50/60Hz | 670x97x82 |
| YL08-20W-1220 | 20 | 2500 | 2700K-6500K | AC220-240V,50/60Hz | 1240x97x82 |
| YL08-30W-1220 | 30 | 3750 | 2700K-6500K | AC220-240V,50/60Hz | 1240x97x82 |
| YL08-36W-1220 | 36 | 4500 | 2700K-6500K | AC220-240V,50/60Hz | 1240x97x82 |
| YL08-45W-1220 | 45 | 5600 | 2700K-6500K | AC220-240V,50/60Hz | 1240x97x82 |
| YL08-36W-1560 | 36 | 4500 | 2700K-6500K | AC220-240V,50/60Hz | 1580x97x82 |
| YL08-54W-1560 | 54 | 6750 | 2700K-6500K | AC220-240V,50/60Hz | 1580x97x82 |
| YL08-65W-1560 | 65 | 8100 | 2700K-6500K | AC220-240V,50/60Hz | 1580x97x82 |
