• Model NO.：TP-20
• Trademark：TOPENERGYS
• Origin：China
• HS Code：94054090
• Production Capacity：20000PCS ,Month

Basic Info.

Model NO. TP-20 Trademark TOPENERGYS Origin China HS Code 94054090 Production Capacity 20000PCS /Month

Product Description

IP66  130LM/W  20W Internal driver Tri-proof LED tube light
Product features

product name	30W 0.6m Tri-proof LED light
LED Chip type	SMD2835
LED brand	SAMSUNG / EPISTAR/ SAN'AN
LED Quantity	144PCS
Lumen	2600lm
Voltage	AC90-277V
Power	20W
Emitting Color	2600K, 3000K,4000K,5000K,6000K
Material	Aluminum heatsink housing+PC cover
IP Rating	IP66

Tri-Proof light 20~60W

Tri-proof light is usually used in environment which require water-proof, dust-proof, corrosion-proof lighting.

Such as shopping mall, warehouse and other indoor places.

The lamp features smooth surface, no dust deposition, so it can be ceiling mounted or suspending mounted.

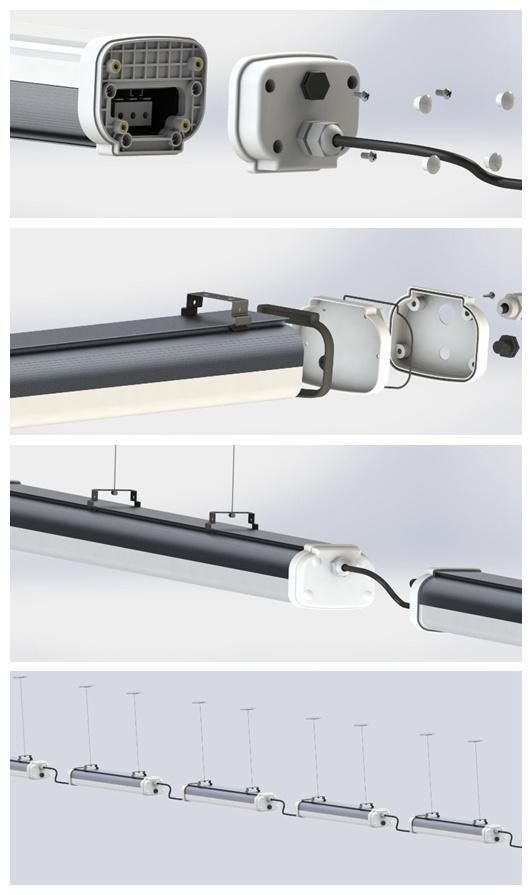

Light panel and PSU adopt modular design, connected via terminals, easy and
convenient to Maintain, no need of soldering

Specification of Tri-proof LED light

Power: 20W /30W/40W/60W
Input Voltage: AC90-265V/50-60Hz
Power factor: >0.9
Light efficiency:>130LM/W

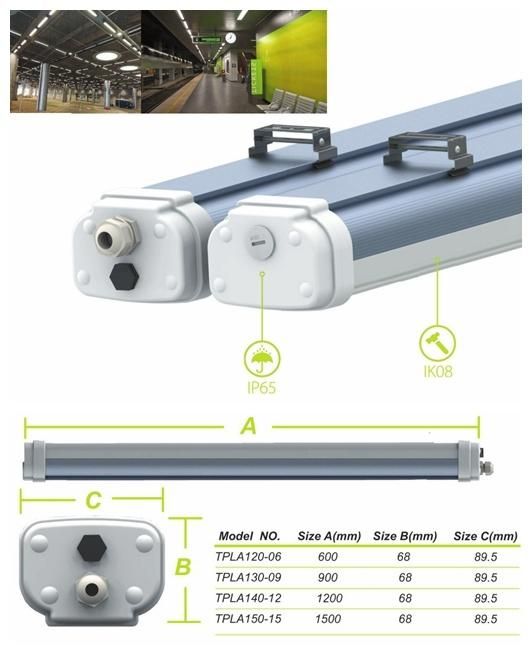

Size: 90*68*600mm / 1200mm / 1500mm
color temperature:2700--6500k
Luminous flux: 2400LM /3600LM/4800LM/7200LM
CCT: Warm White,Pure White,Cool White
Color rendering index:>80Ra
Light source:  SMD2835
IP code: IP65
Storage temperature: -30ºC~+60ºC
Working temperature: -20ºC~+50ºC
Beam Angle:120°
Life time: >30,000Hrs
Weight: 0.64KG/1.1KG/1.4KG
Material:Aluminum profile + PC
Warranty:5 years



High transmittance PC cover ,transmit soft light, small power LEDs, high light efficiency, no dark spot

IP65 design, without adhesive glue, no water leakage, convenient to repair

LIFUD LED driver, Epistar LED chip ensure high & stable quality

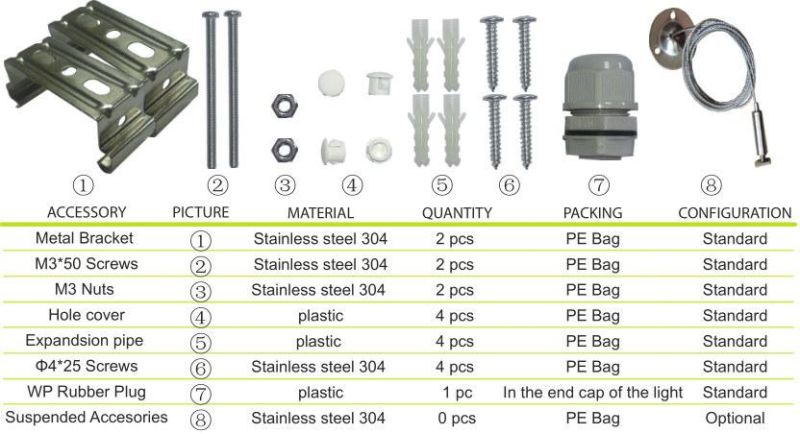

Accessory part details

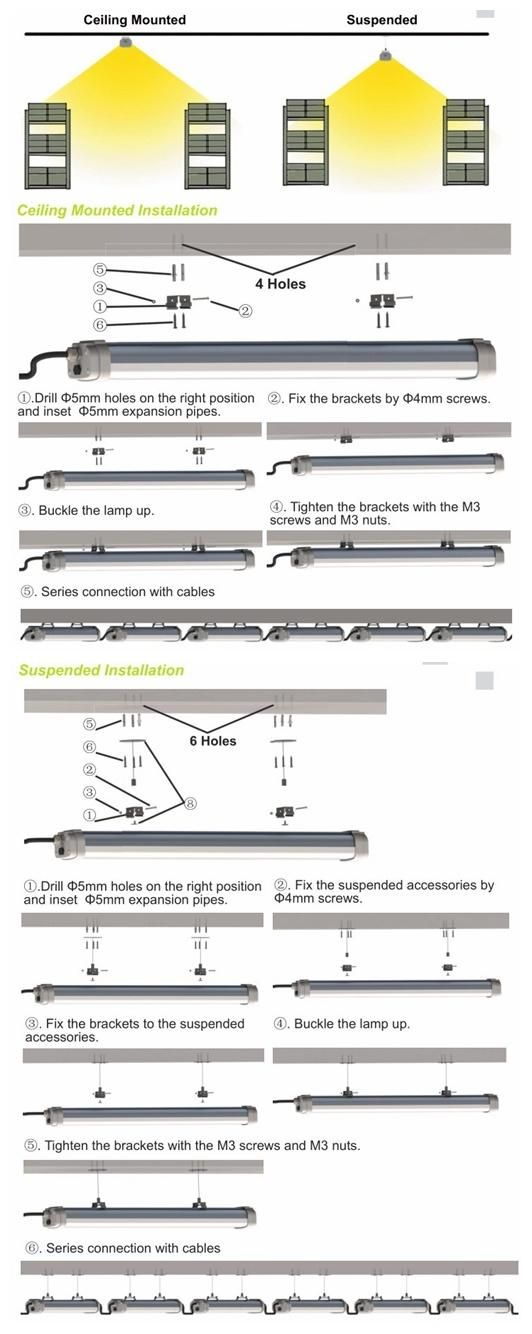

Ceiling Mounted & Suspended Installation

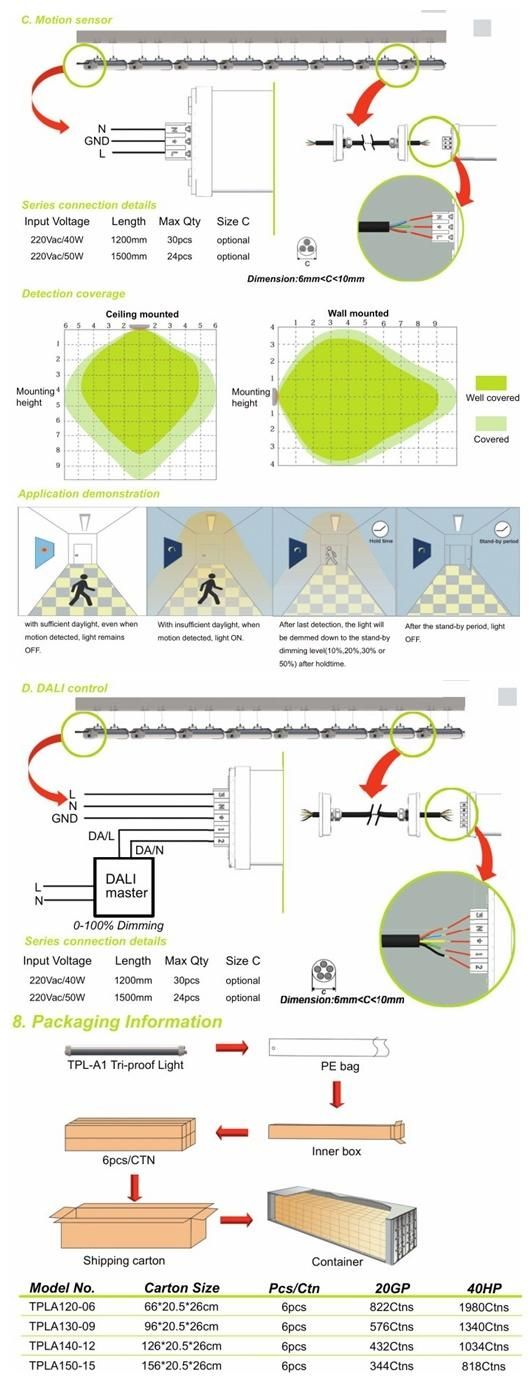

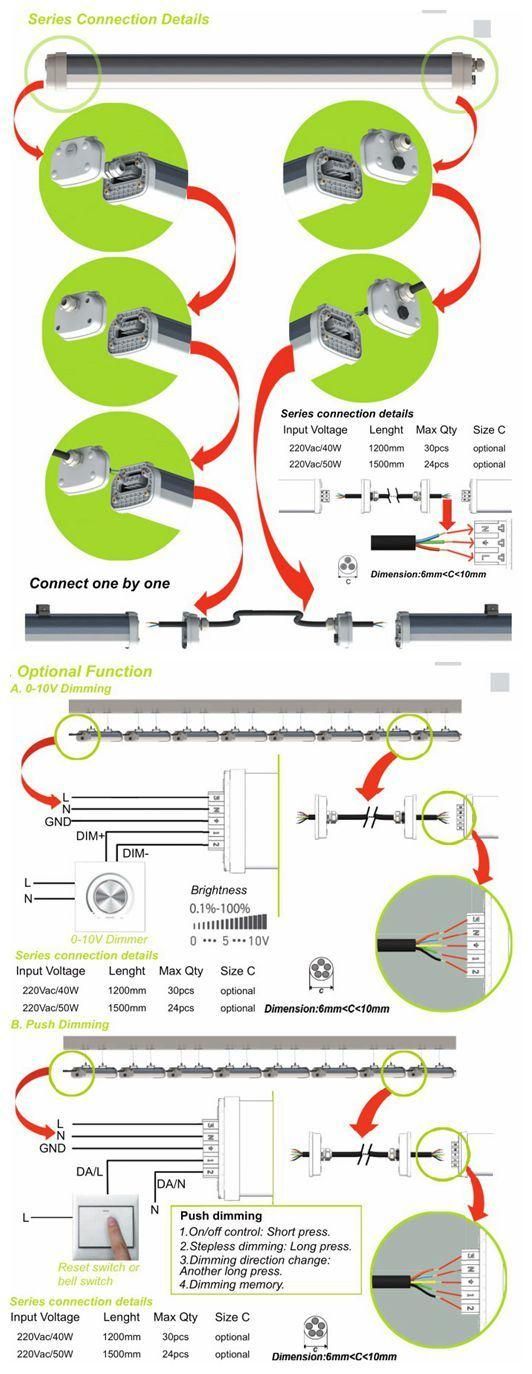

Serials connection details, connect one by one.  Opitional function, with sensor /DALI dimming

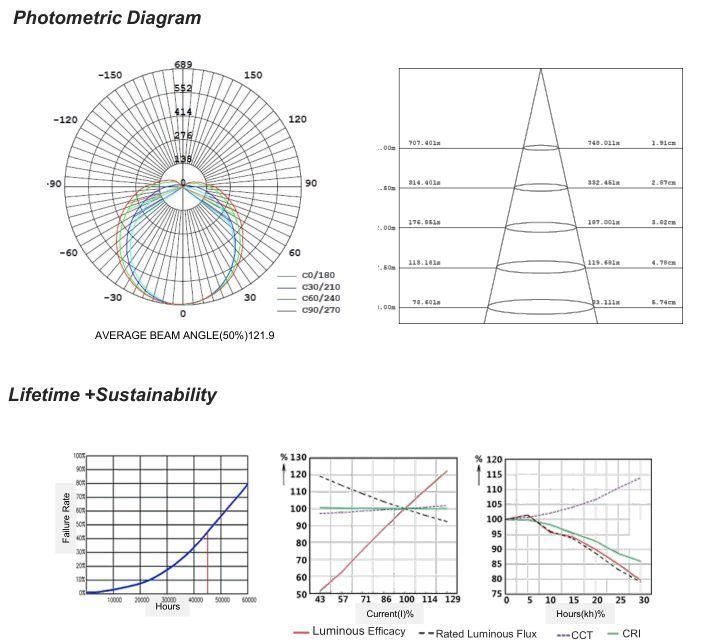

Tri-proof LED light testing report
