• Model NO.：PAR56-PC01-252,351,501,558
• Style：Modern Chinese Style
• Technics：Drawbench
• Voltage：12V
• Certification：CE
• Waterproof Standard：IP68
• Bulb Type：LED PAR56
• LED Qty：252PC, 351PC,501PC, 558PCS
• LED Power：18W,25W,35W,40W
• LED Color：Single Color, RGB
• LED Chip：Epistar
• Material of The Fixture：PC
• The Length of The Wire：1meter
• Installation Method：Recessed
• Warranty：One Year
• Transport Package：Neutral Color Box
• Specification：CE
• Trademark：Future Green or OEM
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. PAR56-PC01-252/351/501/558 Style Modern Chinese Style Technics Drawbench Voltage 12V Certification CE Waterproof Standard IP68 Bulb Type LED PAR56 LED Qty 252PC, 351PC,501PC, 558PCS LED Power 18W,25W,35W,40W LED Color Single Color, RGB LED Chip Epistar Material of The Fixture PC The Length of The Wire 1meter Installation Method Recessed Warranty One Year Transport Package Neutral Color Box Specification CE Trademark Future Green or OEM Origin Guangdong, China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

Size: 280*160mm
Material: PC
Light source: LED 252PCS/351PCS/501PCS/558PC
Power: 18W/25W/35W
Voltage: AC12V
Color: 7color, single color
Color changing model: Remotecontroller, inner control
The length of the wire: 1 meter
Installing model: Recessed


LED Swimming Pool Light Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control, you can use android phone to control the lighting.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.

LED Swimming Pool Light Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures

LED Swimming Pool LightCautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

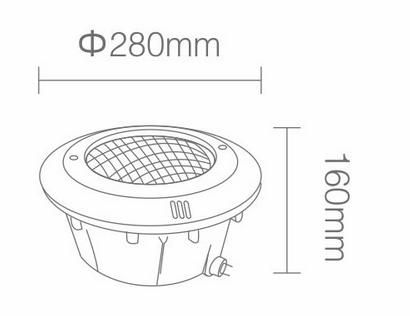

Size:

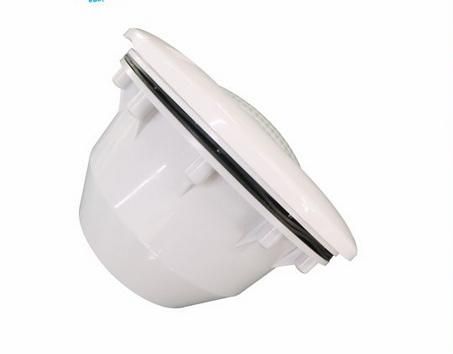

Side view:
