LED Spotlight / Stage Light LED PAR 64 Wall Washer Light (LED 1003)
Guangzhou MS Lighting Co., Ltd.(China)- Type:PAR64
- Emitting Color:Full Range
- Power:36W
- Waterproof:Not Waterproof
- IP Rating:IP20
- Life:50000h
Base Info
- Model NO.:LED 1003
- Electric Current Type:AC
- Input Voltage:220V
- Diffuser:Tempered Glass
- Shell Material:Aluminium Alloy
- LED Chips:CREE
- Certification:CE, EMC, LVD
- LED Spotlight:RGB,Wa
- Transport Package:Carton,Flycase
- Specification:290*150*310mm
- Trademark:MSLighting
- Origin:Guangzhou, China
- HS Code:94054090
- Production Capacity:500PCS,Week
Description
Specification:Model LED 1003 DMX Channel 6CH Control panel Dip Switch Housing Material Aluminum (Short/Long) Housing Color Black/Silver Aperture Cover Aluminum Operating voltage 90-254V AC LED current 20mA Control Modes Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization Connector 3-PinXLR (In and Out) NO.of LED 177 LEDS(60R/ 57B /60G) LED Life Time 80000-100,000 hours Beam Angle 25°/30° Power Consumption 30W Light Projecting Distance 10-15M IP Rating Indoor Operating Temperature -20 ºC +45 ºC Compatibility: 1. Color Range : 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) 2. Dimming 0-100%with regulated constant color control 3.Strobe: 10 Flashed per second (any color) 4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function. 5. 6CH Mode DMX Value CH 1_General dimmer (1-255, from dart to light) CH 2_Red (1-255, Dimmer , from dart to light) CH 3_Green (1-255, Dimmer , from dart to light) CH 4_Blue (1-255, Dimmer , from dart to light) CH 5_Strobe & Color change/ color gradual change open CH 6_Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) 6. Control modes 0: Sound activity mode 1. DMX control mode 2. Adjusting the color manual 3. Adjusting the brightness manual 4. Adjusting the strobe manual 5. Adjusting the strobe speed manual 6. Master-slave control mode, as the master 7. Sound activity synchronization mode 8. Adjusting color's gradual change manual 9. Adjusting gradual change's speed 7. Thermal Maximum ambient temperature: 40° Maximum housing temperature: 60°

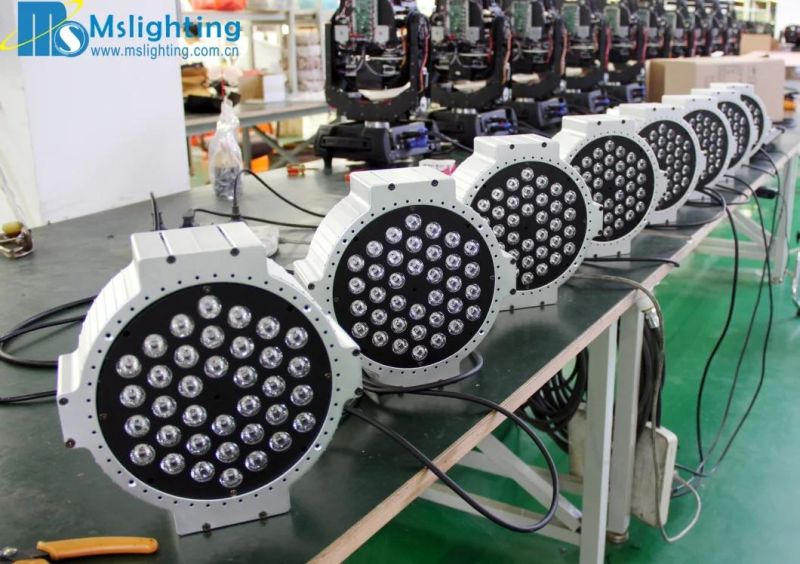

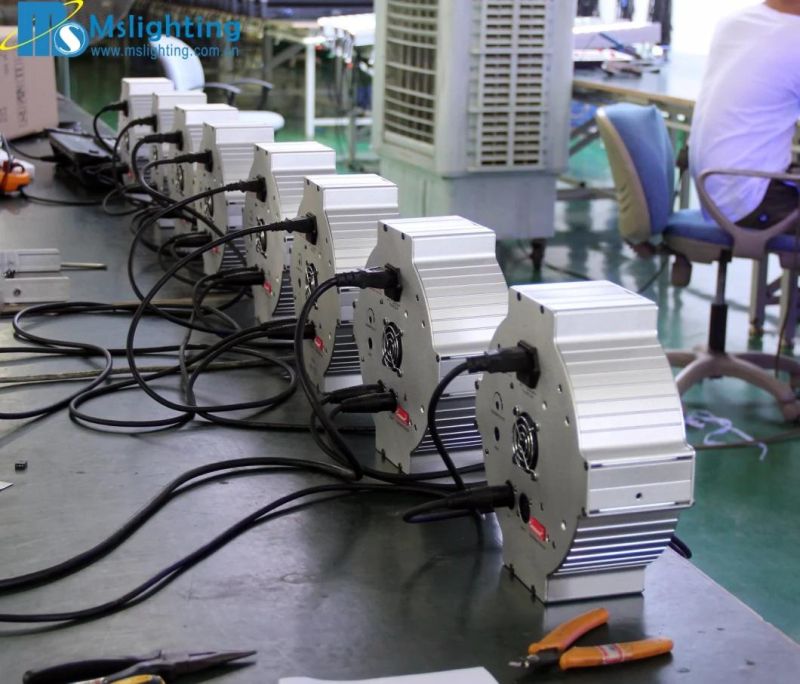

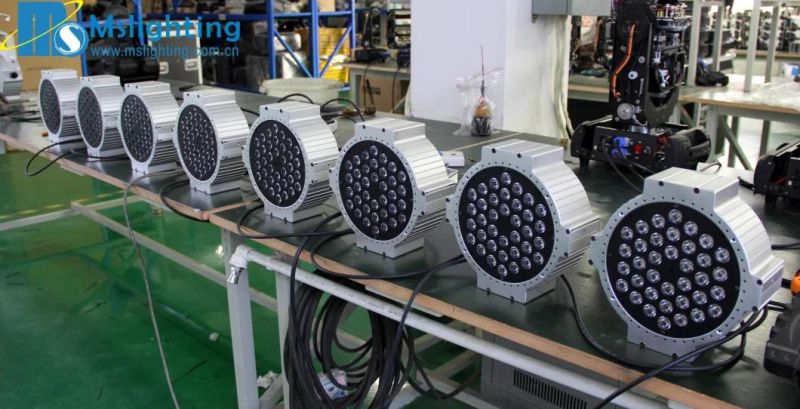

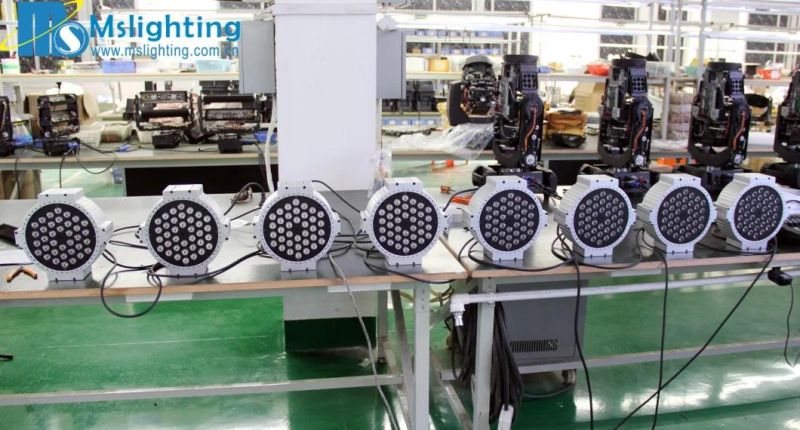

Production site:
Production site:
