• Model NO.：PAR56PC-252,333,441
• Style：Modern Chinese Style
• Base Type：PAR56
• Technics：Drawbench
• Voltage：12V
• Certification：CE, RoHS
• Power：18W 24W 35W

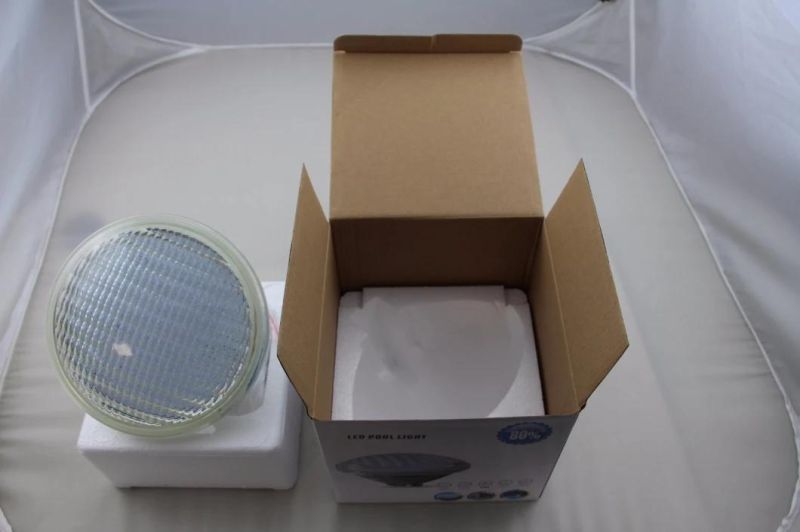

• Transport Package：Neutral Color Box with Foam
• Specification：CE
• Trademark：Future Green
• Origin：China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. PAR56PC-252/333/441 Style Modern Chinese Style Base Type PAR56 Technics Drawbench Voltage 12V Certification CE, RoHS Power 18W 24W 35W Transport Package Neutral Color Box with Foam Specification CE Trademark Future Green Origin China HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

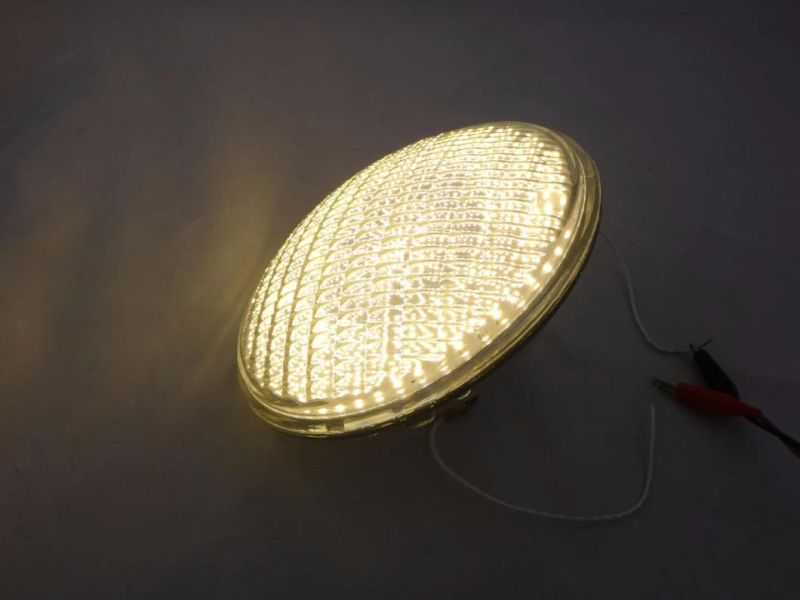

Product Name: LED Pool Light plastic PAR56 252SMD/333SMD/441SMD 2835SMD (18W/24W/35W) AC/DC12V single color/RGB

Applications:

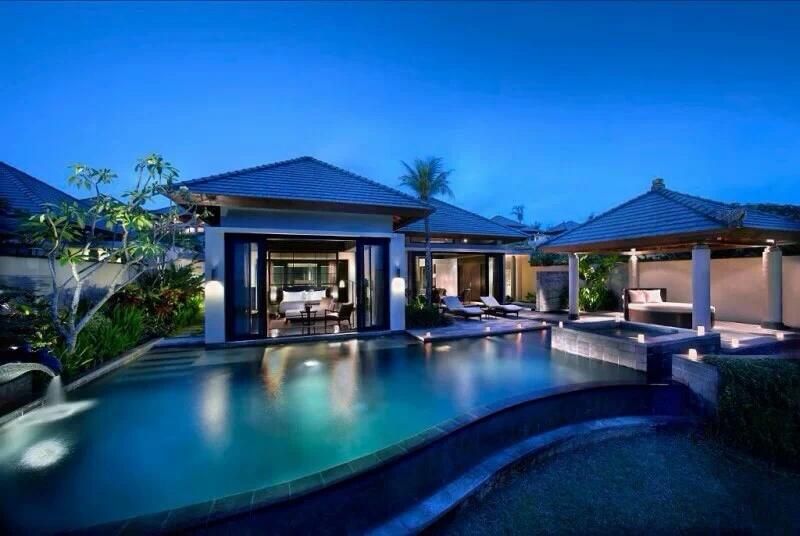

It is used in swimming pools, fountains, scenic ponds' illumination and decoration.

Voltage details:
Single color: R/Y/B/G/CW/WW         (AC/DC12V)
RGB on/off controlled                   (AC12V)
DMX512 Controlled 4wires              (DC12v)
External controlled 4wires               (DC12V)
RGB 2wires PLC controlled             (AC12V)

Color Program details for RGB on/off controlled with memory (totally 16models:
1. White (Red+Green+Blue)
2.RED
3. Green
4.Blue
5. Skyblue(Green+blue)
6. Orange(Red+green)
7.Purple(red+blue)
8. static Blue color, Red gradually changing
9. static Green, Red gradually changing
10. static Blue, Green gradually changing
11. static white(Cool white)
12.G→B→GB→RG→RB→RGB→R Slow gradually changing in circulation
13.R→G→B→GB→RG→RB→RGB→RG→G→GB→B→RB→R gradually changing in circulation
14.R→G→B Jumpy changing from fast to Slow→R→(R→B→G) Jumpy changing from fast to Slow→(R→RB→RG→G→GB→RB→RG→GB)fast  gradually changing,then changed circulation
15,RG→G→GB→B→RB→R  Slow gradually changing in circulation
16. Program 14 +13 in Slow gradually changing in circulation







Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.

Cautions:
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test




PAR56 type:	Thicker glass, PC,316Stainless steel

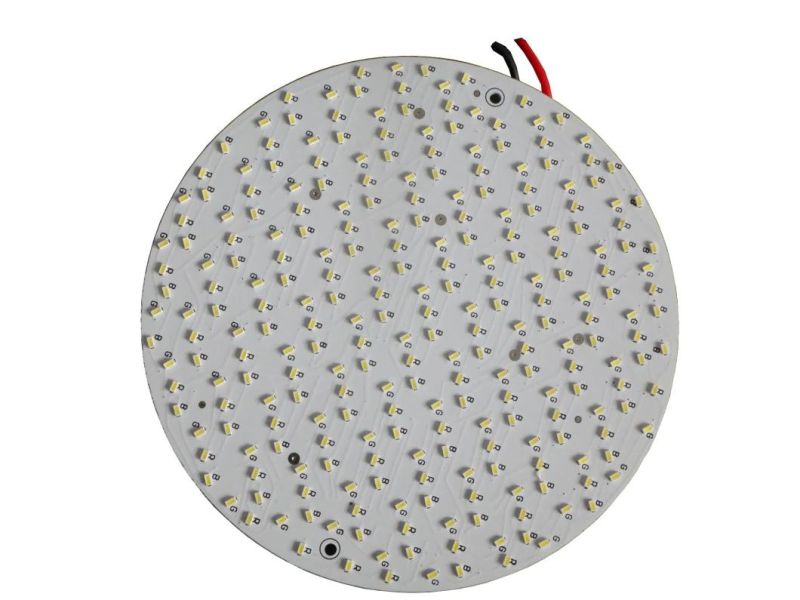

LED qty and power:	2835SMD/3014SMD: 144led(10W) 252LED(18W),333LED(24W), 441LED(35W), 207pc 2835SMD (35W) 5050 3-chip SMD LED: 144SMD (30W) Power LED: 9*1W(9W),12*1W(12W),18*1W(18W),9*3W(27W),12*3W(36W),18*3W(54W)
LED Color:	Single color: Red, Yellow, Blue, Green,Warm White (2700-3500K), Neutral White (4000-4500K), Cool White (6000-6500K), Cold White (8000-12000K) RGB Color: inner controlled, remote controlled, Switch on/off controlled, DMX 512 controlled, external controlled
PAR56 fixture shell:	PC, Stainless steel
