DC12V RGB LED Module with Seven-Color Module
MSS LED Lighting Co., Ltd.- Emitting Color：White
- 1 LED Power：<0.3W
- LED Chips：Epistar
- IP Rating：IP65
- Waterproof：Waterproof
- LED Light Source：5050SMD LED Module
Base Info
- Model NO.：NM3Q5050-072A
- Power：0.72W
- Beam Angle：120
- Wire Length：120mm
- Driver Way：Constant Voltage
- Warranty：3 Years
- Transport Package：1 Chains(20 Module) Low Volume Electrostatic Bag
- Specification：66 x 15 mm
- Trademark：MSS LED,OEM,ODM
- Origin：China
- HS Code：9405409000
- Production Capacity：600, 000,Month
Description
25lm4lm
Environmental and Application Conditions
Ambient temperature range (TA on free air) -25…..+55ºC Operating (case) temperature range (TC) -25…..+55ºC Storage temperature range -25…..+65ºC IP rating IP65
Electrical parameters
Attention
1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:300x280x0.12mm
2. 20pcs per chain, 6pcs chain in one Anti-static bag. ( 120 pcs in one Anti-static bag).
3. 6 bags in one small carton . ( 720 pcs in one small carton).
4.. One outal carton contains 2 pcs small cartons (1440pcs in one outal carton).
Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Environmental and Application Conditions
Electrical parameters
| Supply voltage range | 12.5±0.5 VDC |
| Supply Current range (per module) | Max:60mA |
| Power range (per module) | Max:0.72W |
| ESD protection | Contact 4KV, Air 8KV |
Attention
- Max. number of modules of one chain is 20pcs from power supplier to single end.
- The given illuminance parameters ensure illuminance on the surface.
- Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
- More brightness is obtained if distances between LED modules are reduced.
- The LED module itself and all its components may not be mechanical stressed.
- Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
- The design of the housing should be according to the IP standards in the application.
- If surge protection structure not within power supplier, a lightening protector should be needed additionally
1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:300x280x0.12mm
2. 20pcs per chain, 6pcs chain in one Anti-static bag. ( 120 pcs in one Anti-static bag).
3. 6 bags in one small carton . ( 720 pcs in one small carton).
4.. One outal carton contains 2 pcs small cartons (1440pcs in one outal carton).

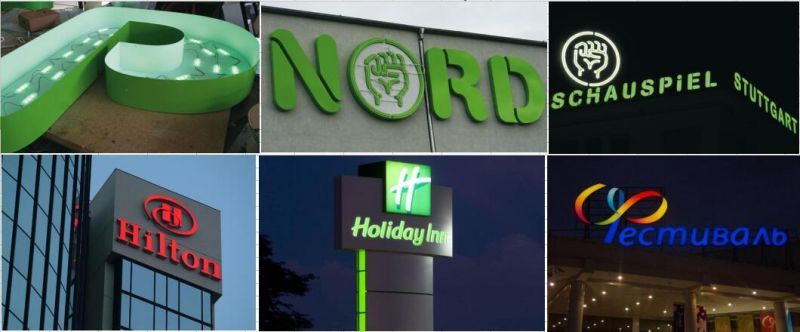

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting

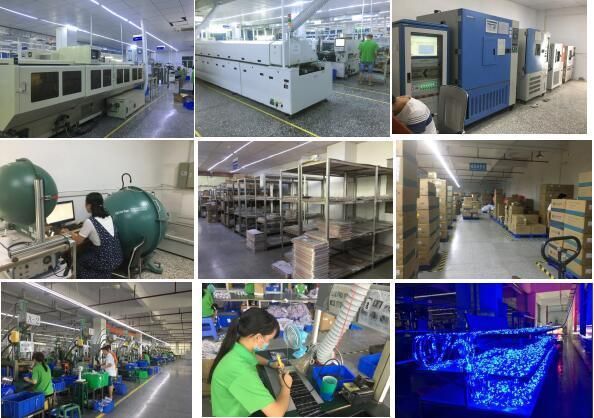

Company Profile :
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
