• Model NO.：LED Z3001C,LED Z3001J
• Electric Current Type：AC
• Input Voltage：90-245V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE
• Voltage：100-265VAC, 50,60Hz
• CH：5,8CH DMX512
• Electronic Dimming：0 - 100%
• Zoom：6°- 50° DMX 512 Electronic Zoom
• Cooling：Entire Casing as Heat Sink Plus 1 Noiseless Fans
• Refresh Rate：>2000 Hz
• Use：Flicker Free - Ready for TV , Video Use
• Operational Modes：DMX512, Master-Slave, Stand-Alone, Sound Control
• Color of LED：RGBW 4in1
• Housing Material：Aluminum
• Power 1：Switch Power Supply
• Light Projecting Distance：0.5-25m
• Setting and Addressing：4-Digit LED
• DMX Data in/out：XLR 3pin,5pin
• Electronic Strobe：1-30 Flashes,Second
• Transport Package：Carton,Flycase
• Specification：Packing size: 27*27*40cm G. W.: 5kg
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

ModelLED Z3001C (54*3W RGBW )LED Z3001J (18*10W RGBW 4INI1)NO. of LED54*3W18*10W RGBW 4IN1Power Consumption200W200WHousing MaterialAluminumAluminumHousing ColorBlackBlackAperture CoverPMMAPMMAOperating voltage90-130V AC / 176-254V ACPower   Switch Power SupplyLED current1400mAControl ModesDirect DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronizationDMX Channel8CH/5CHControl panelDigital 4 characters alphanumericConnector3-PinXLR (In and Out)LED Life Time80000-100, 000 hoursLight Projecting Distance5-230MIP RatingINDOOR,Operating Temperature-20º C+45º CDimensions25.5*25.5*36.5(cm)Weight4.5 (kg)Packing Dimension27*27*40(cm)Gross Weight4.8(Kg)Compatibility:1.     Color Range: 16.7 million  additive  RGBW  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable, and save function5.7channel Mode and 4channel Mode would change each other in every light6.8CH Mode DMX ValueCH 1_General dimmer    (1-255, from dart to light)CH 2_Red                  (1-255, Dimmer, from dart to light)CH 3_Green                (1-255, Dimmer, from dart to light)CH 4_Blue                  (1-255, Dimmer, from dart to light)CH 5_White                 (1-255, Dimmer, from dart to light) CH 6_Strobe & Color change/ color gradual change openCH 7_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)
CH 8- ZOOM (1-255, Small to Big)7.5CH Mode DMX ValueCH 1_Red                 (1-255, Dimmer, from dart to light)CH 2_Green               (1-255, Dimmer, from dart to light)CH 3_Blue                  (1-255, Dimmer, from dart to light)CH 4_White                (1-255, Dimmer, from dart to light)
CH 5- ZOOM (1-255, Small to Big)8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8, Adjustingcolor' s gradual change manual9. Adjustinggradual change' s speed.Each Package Included:1 *LED par 64 Light with Signal Cable: 3-PinXLR DMX In and Out.1 * User Manual1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable)

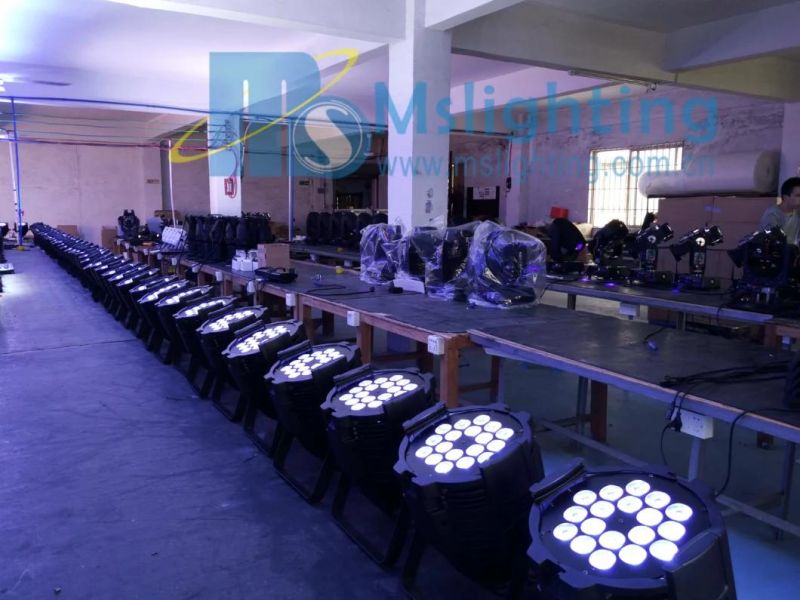

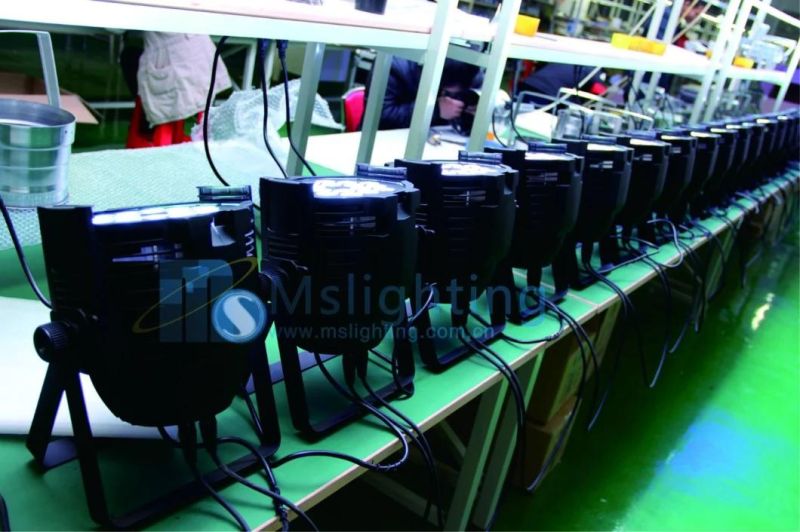

Production Line:

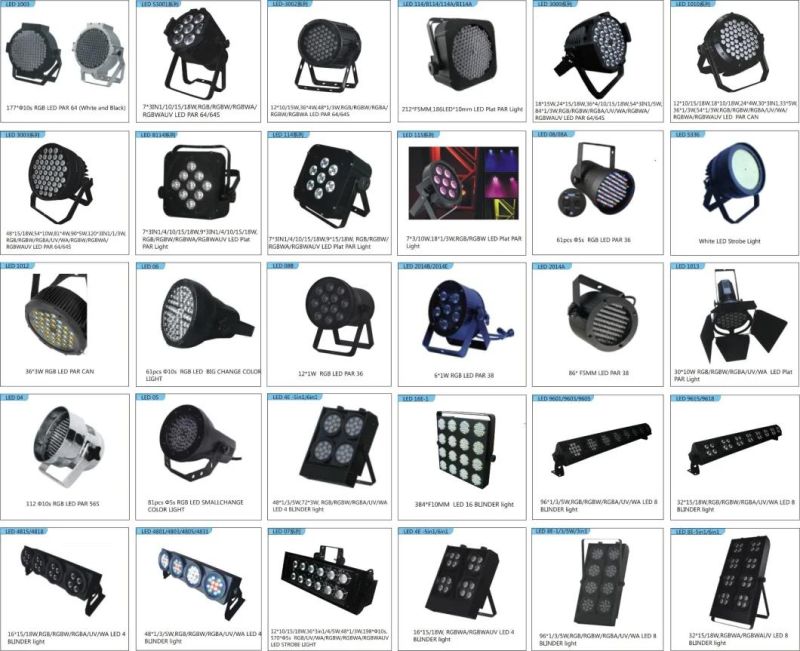

Catalog:
