• Model NO.：HG-P56-18W-A2-RGB-T
• Style：Modern simplism style
• Base Type：,
• Technics：DROP FORGED
• Voltage：12V
• Certification：CE, EMC, FCC, LVD, RoHS, UL, VDE
• Lighting Color：RGB(Synchronous Control)
• Life-Span：50,000 Hours
• Wattage：18W
• Base：2 Wire
• Warranty：2year
• Material：Nylon+Fiber Back Cover,Anti-UV PC Cover
• Transport Package：Carton
• Specification：177mmx58mm
• Trademark：Birmate
• Origin：Shenzhen China
• HS Code：94054090
• Production Capacity：50, 000PCS,Month

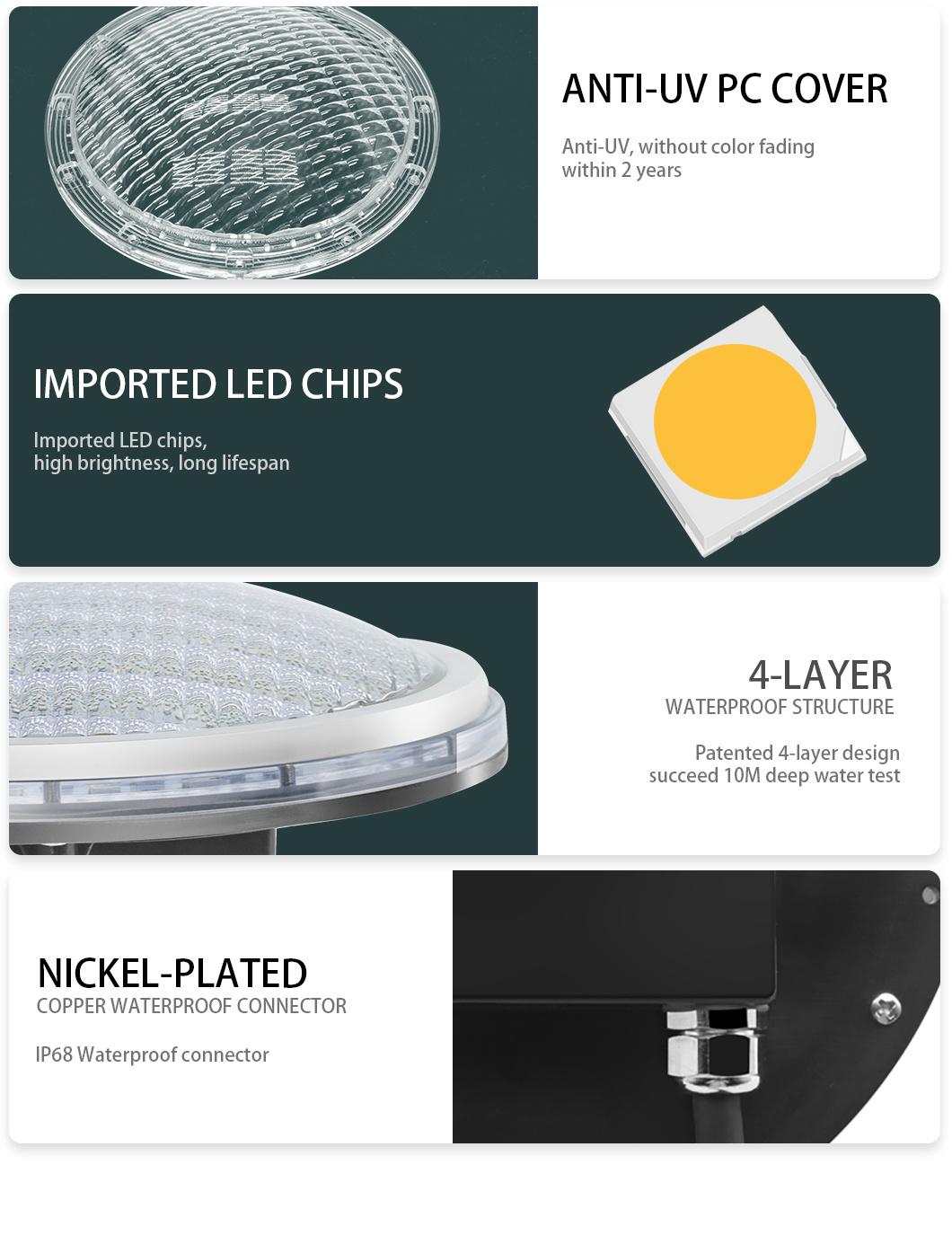

swimming pool rgb lamp Features:

1.PAR56 swimming pool led lights diameter 177mm, can totally meet various PAR56 housing /niche from Germany and US

2.IP68 structure waterproof, whithout glue filled, no color temperature fading

3.Constant current power supply driver, EMC anti-interference circuit

4.Assembly with SS316 screws, more durable

5.PC material LED lens with bracket,high heat resistance

6.Heguang patent design, 100% synchronous, super good anti-interference performance, one controller max connect with 20pcs lamps (600W)

 7.swimming pool led lights all passed 30 steps quality control, 100% waterproof at 10m depth, 8 hours LED agening test, 100% inspection before deliver.

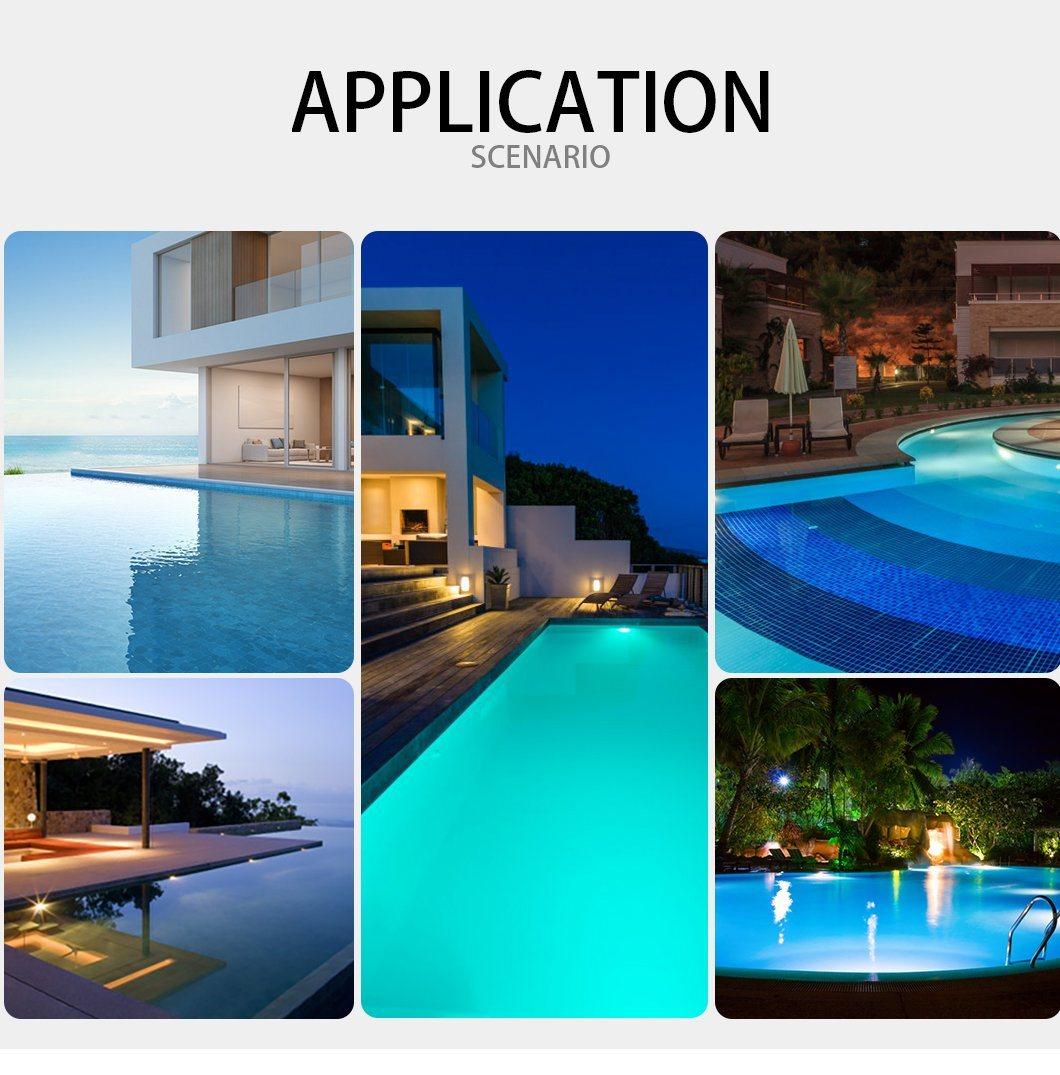

Application:
swimming pool light widely use in concrete pool ,vinyl pool ,the lamp size can totally match various Germany and US PAR56 housing/niches.

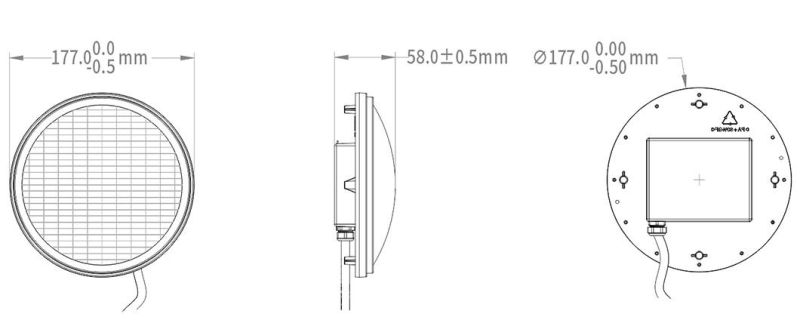

Size information:


Application:
swimming pool light widely use in concrete pool ,vinyl pool ,the lamp size can totally match various Germany and US PAR56 housing/niches.

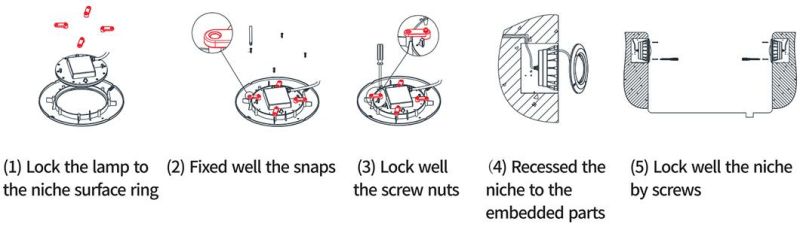

Installation Instructions:

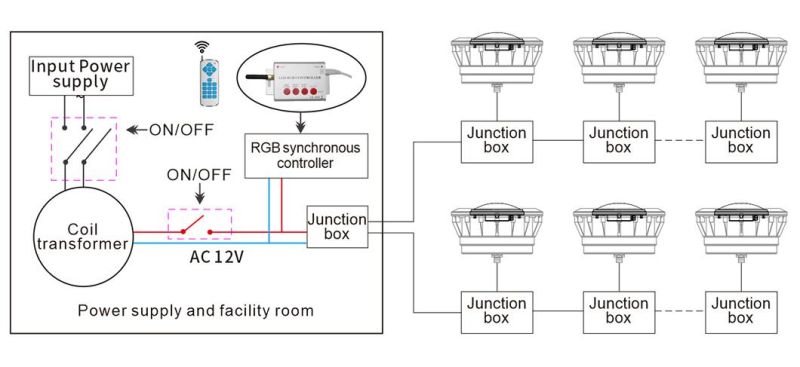

connection instruction:



In 2006, we began working in LED Underwater product development and production.Factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is

Listed in UL certificate in Led Swimming pool light industry.



MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3.LED Surface Mount LED Pool light
4.LED Fiberglass pool lights
5.LED Vinyl pool lights
6.LED Underwater Spot light
7.LED Fountain Light
8.LED Ground lights
9.IP68 Led Strip light
10.RGB Led Controller
11.IP68 par56 housing/Niche/fixture

CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68, IK10, VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport.Welcome to visit factory.

Heguang LED pool lighting Certification :



Exhibition:

Some tips for you

Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.

Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120ºC, so the center temperature at the LED bottom of light board should be ≤ 80 ºC.

4 Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us directly or leave us the messge ,we will give priority to your inquiry.

5Q: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

6Q: What is the MOQ?

A: NO MOQ,the more you order ,the cheaper price you will get .

7Q: Can you accept small trial order?

A: Yes

8Q: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable
