  • Lamp Body Material：Aluminum Alloy
  • IP Rating：IP66
  • Base Type：CREE LEDs Chip
  • Irradiated Area：≥30m²
  • Input Voltage：220v
  • Power：50W-165W

Base Info

  • Model NO.：LCD-GYD-680-50-LN60
  • Color Temperature：Pure White
  • Emitting Color：White
  • LED Chips Brand：CREE
  • Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, SASO, UL, Iecex Atex UL844
  • Transport Package：Carton Box
  • Specification：400x400x250mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

Classification:Group IICategory 2GDInstallation: EN 60079.14Zone 1 - Zone 2 (Gas)Zone 21 - Zone 22 (Dust)Marking:Atex and IECExStandards:EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-7: 2007, EN 60079-31: 2014 and EUROPEAN DIRECTIVE 2014/34/UE
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHSClass temperature:100°C (T5)85°C (T6)Ambient temperature:-30°C +45°C (T6 / IIC)-30°C +65°C (T5 / IIC)Degree of protection:IP66Remark:This equipment can be used in an environment containing explosive atmosphere and with the presence of hydrogen.

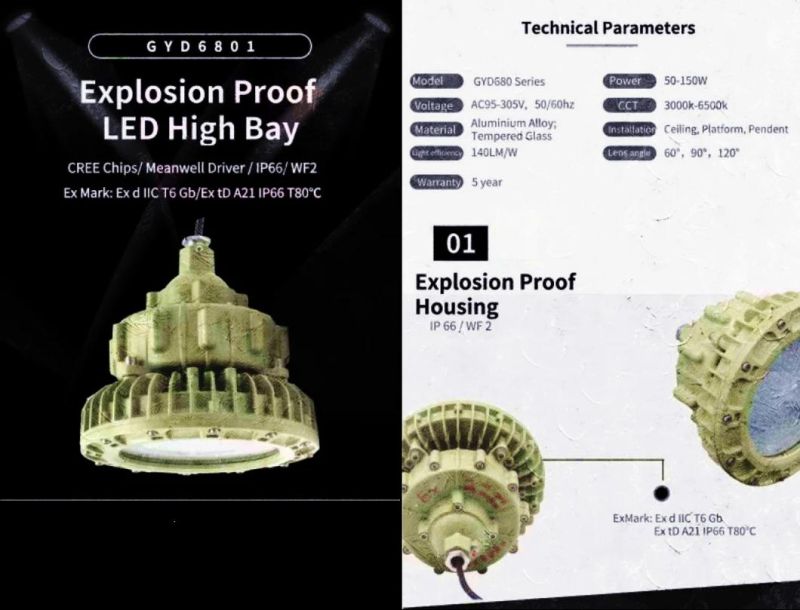

LCD-GYD680-XXX/CES-EX-GB-XXX Explosion proof flood & high bay lights

MECHANICAL FEATURES

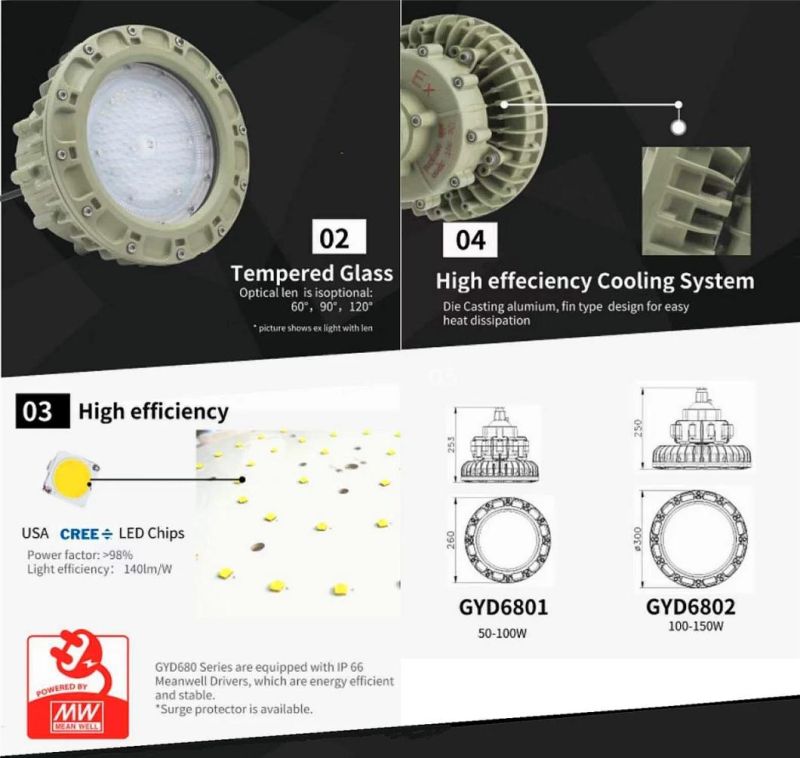

Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for better heat dissipation.
Glass face: 9mm thick shock and temperature resistant tempered glass sealed with aluminium ring.
Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.
Entries: M20 or M25 entries
Coating: Polyester coating (Light grey)
Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).
Ex Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working LightEx Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working Light
Flood & high bay light Optics
Optic beam 60°90°120°
Ex Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working Light
Each LED has a "circling shaped beam" optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.
Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design
Ex Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working Light
Electrical technical data

Electrical featuresLCD-GYD680-60/CES-EX-GB-60LCD-GYD680-100/CES-EX-GB-100LCD-GYD680-150/CES-EX-GB-150Power supply:100-277 VAC ±10% (12-32VDC on requests)Rated frequency:50/60 Hz ±5%Power consumption:60W 100W  150WConnection::Direct connection to terminal board L, N, Pe. Section 4mm2, suitable for loop-in/loop-outPower factor:>0,97Rated current:559 mA 877mA 1303 mA

EMC
(electromagnetic compatibility):

EN 55015, EN 61547, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4....THD (total harmonic distortion):<15% (100-277 Vac)Over-voltage protection:3-4 kVDriver performances:Over-Voltage protection, Over-Current protection, Short-Circuit protectionDimmable (on request):(1-10 V) o PWM or Triac dimmerPhotometric features LED:Cree SMD 3030 or bridgelux SMD 3030Viewing angle:60°, 90°, 120°Type:Warm white , Neutral white , cool whiteGroup:symetricalColour temperature:2700-6500K (red, yellow , green, blue etc on requests)CRI:>75 ( 2700-6500K)Instant Restrike:ZeroL80:>90,000Lumen:8100lumen 13500lumen  20250lumenMaximum light intensity: Overall efficiency:up to 135lumen/w

ACCESSORIES ON REQUESTS / SPECIAL REQUESTS
Different wattage (code LCD-GYD680-XXX-reflector /CES-EX-GB-XXX-reflector ) Pipe / bracket / reflector
Ex Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working Light

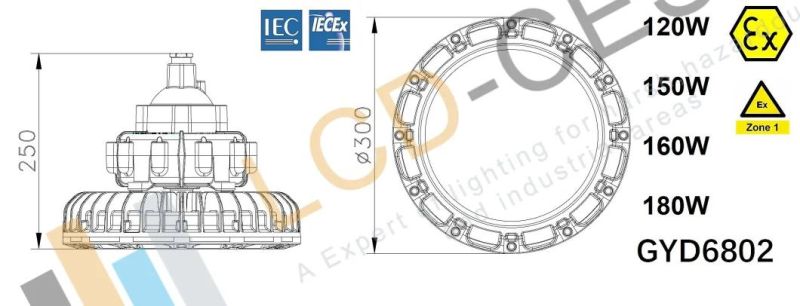

DIMENSIONAL DRAWING

CodeDimensions (mm)WattageClass(Ta=+60°C)Max surface temperature °CWeight (kg)Carton Size (CM)¢ D x H mmLCD-GYD680-60/CES-EX-GB-60¢ 270 x 170 mm60WT51004.5572*300*330mm(4pcs/carton)LCD-GYD680-100/CES-EX-GB-100¢ 320 x 170 mm100WT51006.0670*355*210mm(2pcs/carton)LCD-GYD680-150/CES-EX-GB-150¢ 360 x 170 mm150WT51008.5410*365*195mm(1pcs/carton)

Ex Products Ex D, Ex E, Ex I, Ex N Executions LED Area Floodlight Petro Chemistry Refinery Light IP65 IP66 IP67 Atex Iecex 30W to 160W LED Working Light

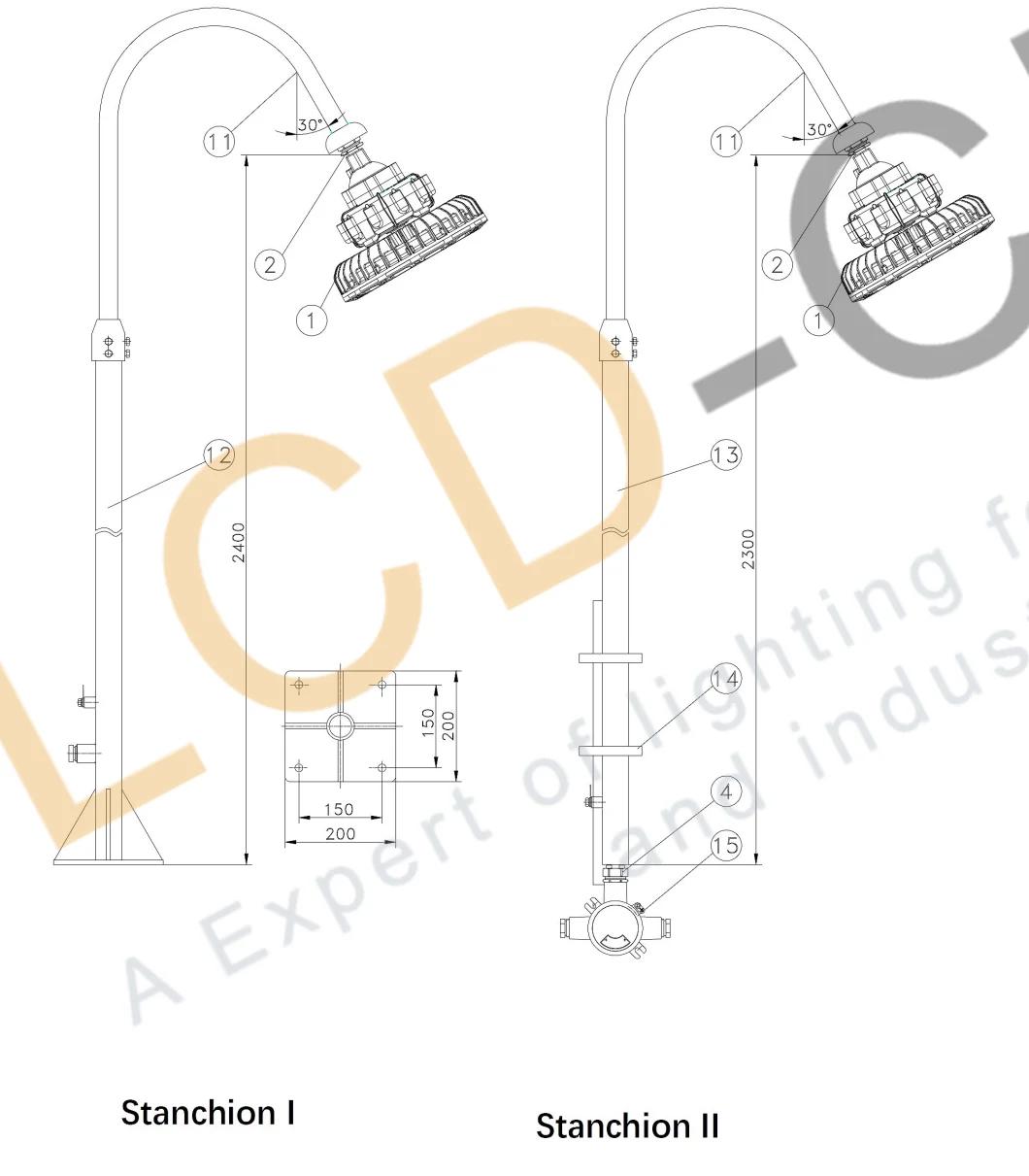

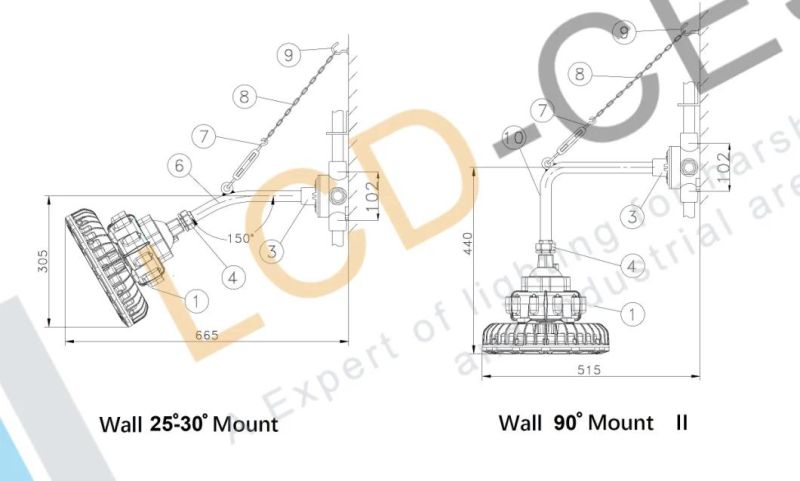

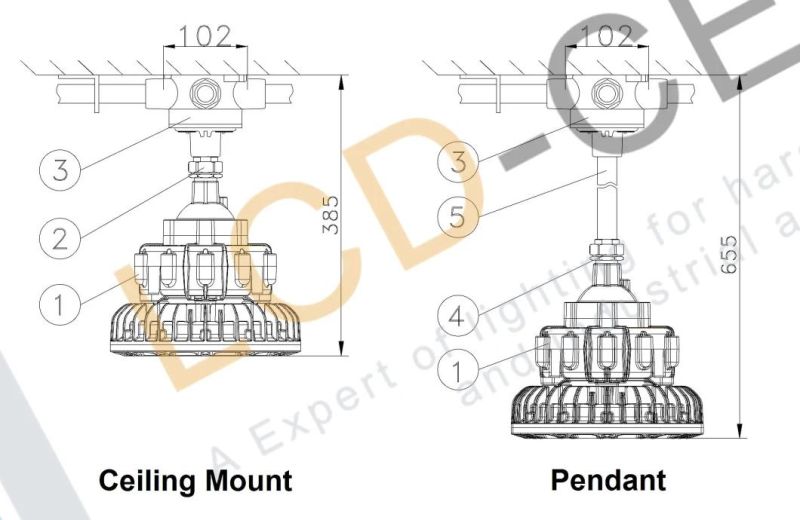

Installation and mounting methods
