• Model NO.：LCD-GYD680-XXX,CES-EX-GB-XXX
• Color Temperature：3000K 4000K 6500K
• Emitting Color：Warm White, Daylight, Cool White
• LED Chips Brand：CREE, Bridgelux, Osram,
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, Iecex , Atex , TUV
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Classification:                Group IICategory 2GDInstallation: EN 60079.14              Zone 1 - Zone 2 (Gas)      Zone 21 - Zone 22 (Dust)Marking:Ex d IIC T6 Gb - Ex tD A21 IP66 T80ºCCertification:Atex and IECEx Standards:EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-7: 2007, EN 60079-31: 2014 and EUROPEAN DIRECTIVE 2014/34/UE
IEC 60079-0: 2011, IEC 60079-1: 2014-06, IEC 60079-28: 2015, IEC 60079-31: 2013, IEC 60079-7: 2015
European Directive 2006/95 Low voltage
European Directive 2004/108 Electromagnetic compatibility
European Directive 2003/108 WEEE Waste electrical and electronic equipment
European Directive 2011/64 RoHSClass temperature:                         100°C (T5)                    85°C (T6)Ambient temperature:-30°C +45°C (T5 / IIC)-30°C +65°C (T6 / IIC)Degree of protection:                                                        IP66Remark:This equipment can be used in an environment containing explosive atmosphere and with the presence of hydrogen.

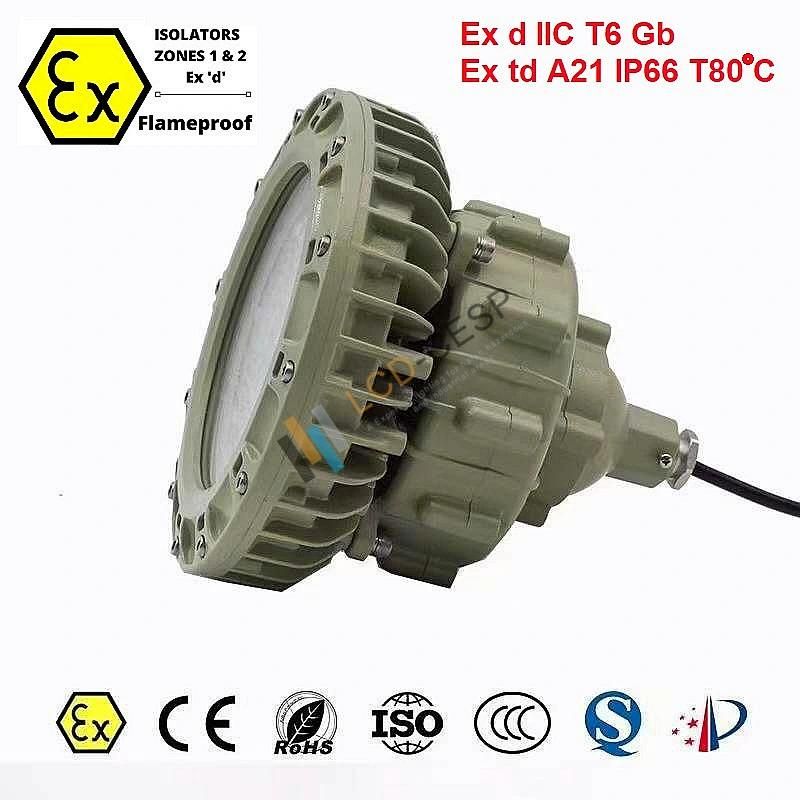

LCD-GYD680-XXX/CES-EX-GB-XXX Explosion proof flood & high bay lights


MECHANICAL FEATURES

Body: Low copper content aluminium alloy ADC12 fixtures with Patent fins heat-Heatsink for better heat dissipation.

Glass face: 9mm thick shock and temperature resistant tempered glass sealed with aluminium ring.

Supporting bracket: Galvanised steel or stainless steel #316 or #304 available.

Entries: M20 or M25 entries

Coating: Polyester coating (Light grey)

Corrosion resistant: The standard of the aluminium alloy used by LCD has passed the tests required by
standards EN60068-2-30 (hot/humid cycles) and EN60068-2-11 (salt mist tests).

Flood & high bay light Optics

Optic beam 60°90°120°

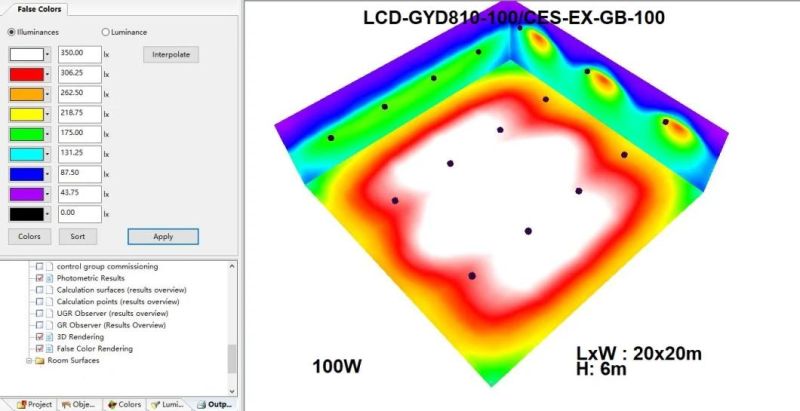

Each LED has a "circling shaped beam" optics lens or reflector that allows to distribute the light on the floor in a perfectly uniform way. Forthermore, the light points
can be optimized reducing the system costs. They are suitable for any indoor or outdoor application ensuring lighting of large areas and a fantastic and symmetrical distribution of the light.

Features:
- circling shaped beam
- Precision Component lens or reflector
- High efficiency lighting
- Excellent luminous flux
- Made of polycarbonate with special coating treatment
- Self-extinguishing UL94 guaranteed
- Vibration resistant
- Innovative design

Electrical technical data

Electrical featuresLCD-GYD810-60/CES-EX-GB-60LCD-GYD810-100/CES-EX-GB-100LCD-GYD810-200/CES-EX-GB-200Power supply:                                                               100-277 VAC ±10% (12-32VDC on requests)Rated frequency:                                                                                         50/60 Hz ±5%Power consumption:         60W                                                                              100W                                                                200W Connection::                                Direct connection to terminal board L, N, Pe. Section 4mm2, suitable for loop-in/loop-outPower factor:                                                               >0,97Rated current:                        559 mA                                                             877mA                                                   1303 mA

EMC

(electromagnetic compatibility):

                                              EN 55015, EN 61547, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4....THD (total harmonic distortion):                                                                                     <15% (100-277 Vac)Over-voltage protection:                                                                                                3-4 kVDriver performances:                                            Over-Voltage protection, Over-Current protection, Short-Circuit protectionDimmable (on request):                                                                           (1-10 V) o PWM or Triac dimmer Photometric features LED:                                                                                    Cree SMD 3030 Viewing angle:                                                                                       60°, 90°, 120°Type:                                                                     Warm white ,  Neutral white , cool whiteGroup:                                                                                           symetrical Colour temperature:                                                   2700-6500K (red, yellow , green, blue etc on requests)CRI:                                                                                      >75 ( 2700-6500K)Instant Restrike:                                                                                                   ZeroL80:                                                           >90,000Lumen:    8100lumen                                                                       13500lumen                                                        27000lumenMaximum light intensity: Overall efficiency:                                                                                          up to 135lumen/w

ACCESSORIES ON REQUESTS / SPECIAL REQUESTS

Different wattage  (code LCD-GYD810-XXX-reflector /CES-EX-GB-XXX-reflector ) Pipe / bracket / reflector



DIMENSIONAL DRAWING

Code             Dimensions (mm)WattageClass(Ta=+60°C)Max surface temperature °CWeight   (kg)Carton Size (CM)                 ¢ D x H mmLCD-GYD810-60/CES-EX-GB-60             ¢ 270 x 170 mm   60W           T5                   100        4.5572*300*330mm(4pcs/carton) LCD-GYD810-100/CES-EX-GB-100             ¢ 320 x 170 mm  100W           T5                   100        6.0670*355*210mm(2pcs/carton)LCD-GYD810-200/CES-EX-GB-200             ¢ 360 x 170 mm  200W           T5                   100        8.5

410*365*195mm(1pcs/carton)

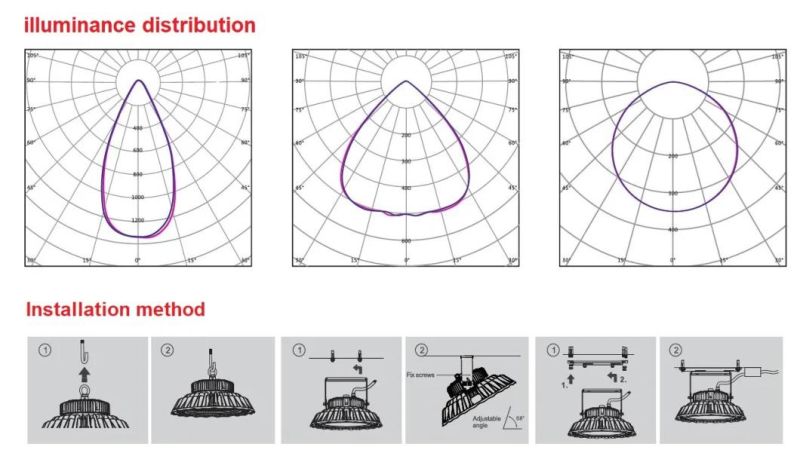

Installation and mounting methods
