• Model NO.：LED 3001I,LED 3001K
• Electric Current Type：AC
• Input Voltage：110-220V
• Diffuser：Polycarbonate
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE
• Color：RGBWA 5-in-1
• Transport Package：Carton,Flycase
• Specification：Dimensions: 25.5*25.5*36.5cm Weight: 4.50kg
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

Specification:ModelLED 3001I LED 3001KNo. of LED12*15W RGBWA 5IN1 MULTI-CHIP LED18*15W RGBWA 5IN1 MULTI-CHIP LEDPower Consumption180W270WDMX Channel8CH/5CHControl panelDigital 4 characters alphanumericHousing ColorBlackOperating voltage100-230V ACControl ModesDirect DMX 512, Master/slave. Stand alone. Sound ActivityConnector3-PinXLR (In and Out)LED Life Time80000-100, 000 hoursBeam Angle25° /30°Light Projecting Distance5-50MIP RatingIndoorOperating Temperature-20° c-+45° cPacking Dimension27*27*40cm/ 82*55*43cm (6pcs)Gross Weight4.80KGS /28.50kg(6pcs)Video Linkhttps://mslighting.en.made-in-china.comCompatibility:1. Color Range: 16.7 million  additive  RGBWA  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, flash, speed/luminance the adjustable5.8channel Mode and 5channel Mode would change each other in every light6.8CH Mode DMX ValueCH 1_General dimmer    (1-255, from dart to light)CH 2_Red                  (1-255, Dimmer, from dart to light)CH 3_Green                (1-255, Dimmer, from dart to light)CH 4_Blue                  (1-255, Dimmer, from dart to light)CH 5_White                 (1-255, Dimmer, from dart to light)CH 6_AMBER               (1-255, Dimmer, from dart to light)CH 7_Strobe & Color change/ color gradual change openCH 8_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)7.5CH Mode DMX ValueCH 1_Red                     (1-255, Dimmer, from dart to light)CH 2_Green                   (1-255, Dimmer, from dart to light)CH 3_Blue                      (1-255, Dimmer, from dart to light)CH 4_White                    (1-255, Dimmer, from dart to light)CH 5_AMBER                  (1-255, Dimmer, from dart to light)8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8. Adjustingcolor' s gradual change manual9. Adjustinggradual change' s speed
Production Line:

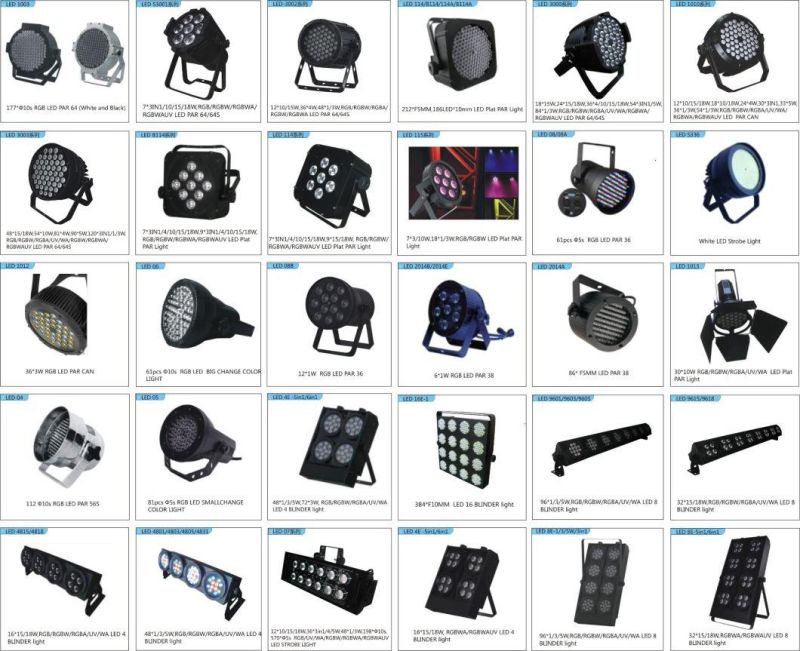

Catalog:
