• Model NO.：RG-P57TC3-KR12j36W6
• Electric Current Type：AC
• Input Voltage：100-240V 50,60Hz
• Diffuser：Polycarbonate
• Shell Material：Die - Casting Aluminum
• LED Chips：CREE
• Certification：CE, RoHS, CCC, GS
• Net Weight：7kg
• Gross Weight：8.5k
• LEDs：R: 12PCS G: 18PCS B:18PCS W:6PCS) Total 54PCS
• Color：Black,White
• Package Size：0X30X30.5cm, PCS 62.5X62.5X36cm, 4PCS
• Control Mode：Auto-Run Mode,DMX-512 Mode,Sound Control Mode
• DMX Channels：9CH
• Gray Leve：256
• Transport Package：Carton or Flight Case
• Specification：230*270*230mm
• Trademark：RIGEBA
• Origin：Guangzhou Guangdong
• HS Code：9405409000
• Production Capacity：50000

Product Series:Traditional Stage LightingItem No.:RG-P57TC3-KR12j36W6Size:230x270x230mm (exclude of dual hanging bars)Net Weight:7.5KgGross Weight:8.5KgLEDs:(R: 12pcs  G: 18pcs  B:18pcs  W:6pcs) total 54pcsColor:BlackMaterial:Die cast aluminumPackage Quantity:1pcsPackage Size:30x30x30.5cm/ pcs  62.5x62.5x36cm/ 4pcsControl mode:Auto-run mode,DMX-512 mode,Sound control modeDMX Channels:9 CHProtect Level:IP66Working Temperature:-20~+403.2.Electrical SpecificationsRated Power:162WInput Voltage:AC 100-240V 50/60HzService Life:50000hourGray Level:256ChannelChannel valueFunction DescriptionCH10-255Total dimmer (0-100%)CH20-255Red dimmer (0-100%)CH30-255Green dimmer (0-100%)CH40-255Blue dimmer (0-100%)CH50-255White dimmer (0-100%)CH60-255Strobe effect(slow  fast)&(CH1-CH5)CH70-255Color fade effect (slow  fast)CH80-255Color jump change effect (slow  fast)CH90-128Sound active (color jump change effect)129-255Sound active (strobe effect)
4.DMX Channel Explanation

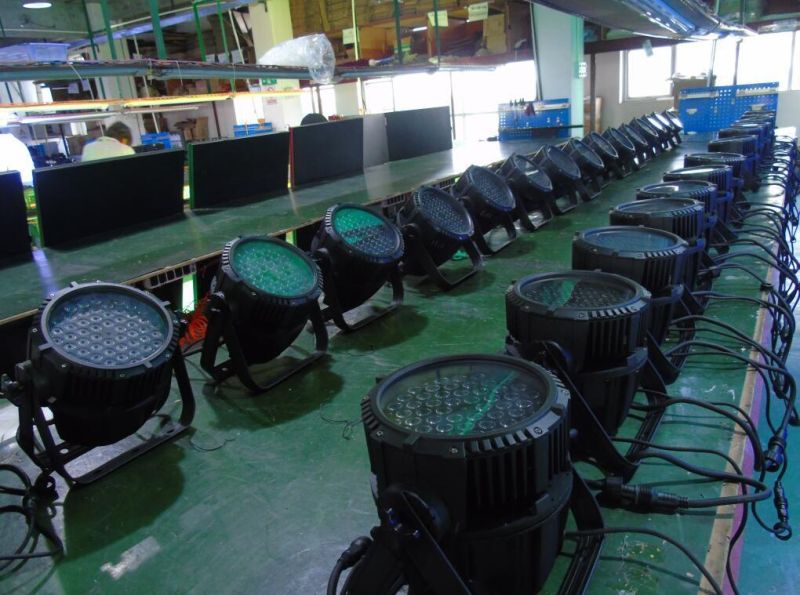

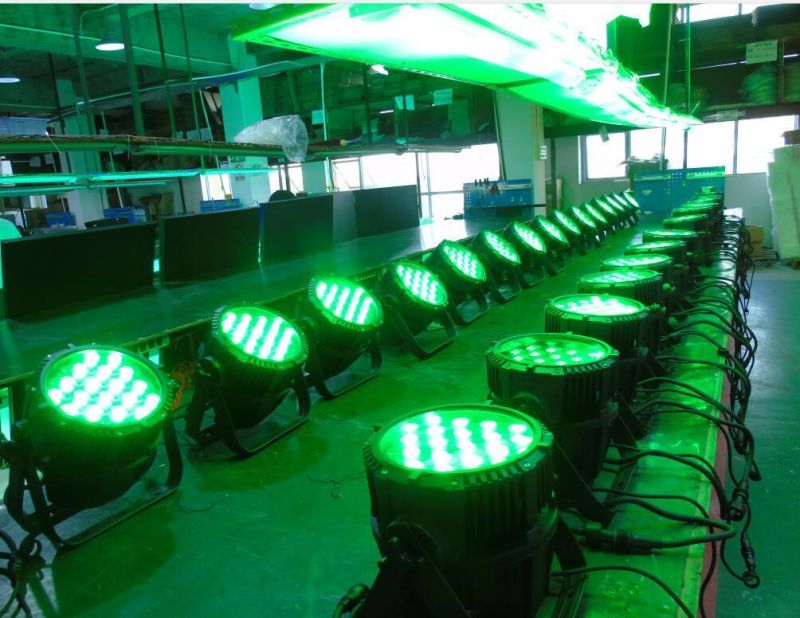

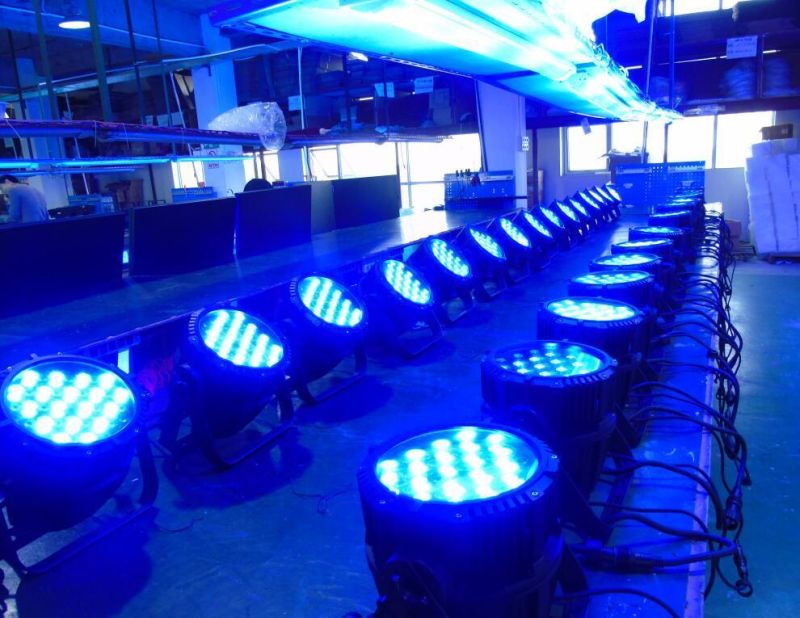

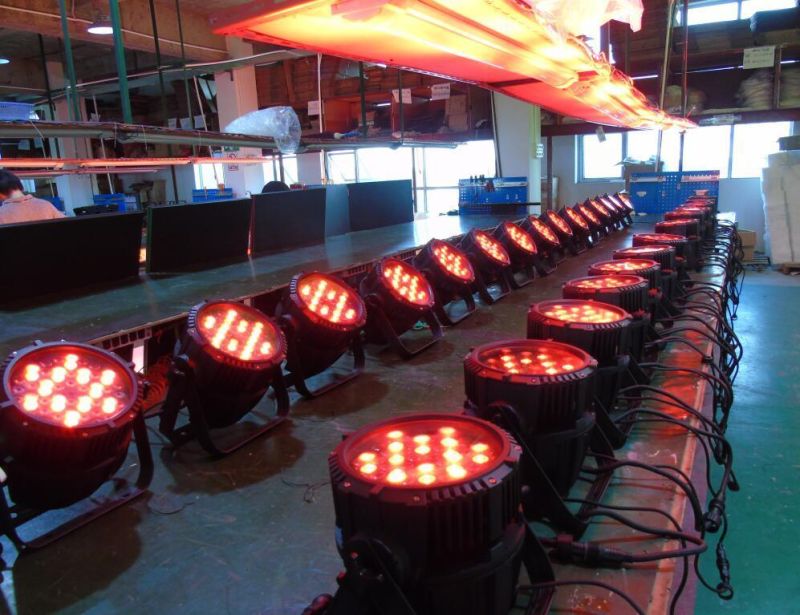

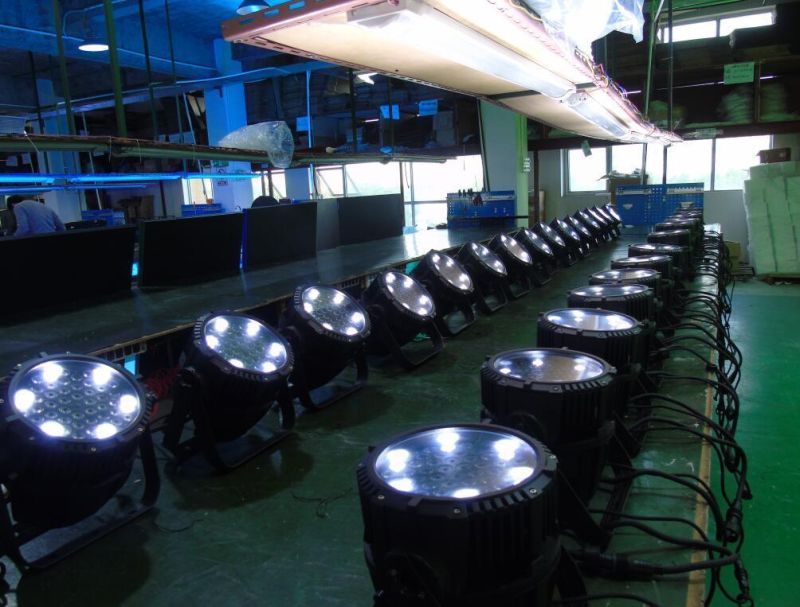

 ChannelChannel valueFunction DescriptionCH10-255Total dimmer (0-100%)CH20-255Red dimmer (0-100%)CH30-255Green dimmer (0-100%)CH40-255Blue dimmer (0-100%)CH50-255White dimmer (0-100%)CH60-255Strobe effect(slow  fast)&(CH1-CH5)CH70-255Color fade effect (slow  fast)CH80-255Color jump change effect (slow  fast)CH90-128Sound active (color jump change effect)129-255Sound active (strobe effect)  Products photos:








Company information:
