• Model NO.：TB-90202F
• Voltage：9-32V
• Voltage Type：DC
• LED Type：CREE
• Certification：CREE, CE, EMC, FCC, RoHS
• Power Output：20W
• LED Brand：CREE
• LEDs：4PCS*5W CREE LEDs
• Lumens：1800lm
• LED Quantity：4PCS
• Beam：Combo Beam
• Lens Material：PC
• Working Temperature：-40degree~85degree
• Materials：Diecast Aluminum
• Mountain Bracket：Stainless Steel
• OEM：Yes
• Dimension：3inch
• Packing：Neutral Packing
• Life Span：30, 000hours
• Certificate：Ce, RoHS, IP67
• Transport Package：Neutral Packing
• Specification：30pcs,carton
• Trademark：TOPBRI
• Origin：China
• HS Code：85122010
• Production Capacity：20000PCS,Month

Basic Info.

Model NO. TB-90202F Voltage 9-32V Voltage Type DC LED Type CREE Certification CREE, CE, EMC, FCC, RoHS Power Output 20W LED Brand CREE LEDs 4PCS*5W CREE LEDs Lumens 1800lm LED Quantity 4PCS Beam Combo Beam Lens Material PC Working Temperature -40degree~85degree Materials Diecast Aluminum Mountain Bracket Stainless Steel OEM Yes Dimension 3inch Packing Neutral Packing Life Span 30, 000hours Certificate Ce, RoHS, IP67 Transport Package Neutral Packing Specification 30pcs/carton Trademark TOPBRI Origin China HS Code 85122010 Production Capacity 20000PCS/Month

Product Description

Wholesale 3inch 12V 20w Spot LED Offroad Motorcycle Truck Camping Work Lights

Key Point
Multi-Volt Operation: Wide Operating Voltage range from 9-32VDC
5w Cree Leds:Powered by 4*5Watts CREE Leds
High Output: 1800 Raw Lumen of cool white light
Multiple Beam Patterns available:Combo beam
Sealed Housing: Water and Dust proof housing
Universal Mounting: Flush mounting bracket

Specifications

Item No.	TB-90202F
LED Power	4pcs*5W cree leds
Operating Voltage	9-32V DC
Output Lumen	1800 LM
Beam	Combo
Colour Temp.	6000K
IP Rating	IP67
Housing Material	Diecast Aluminum
Bracket	Stainless Steel
Lens Material	PC
Operating Temp.	-40°C - 85°C
OEM	YES
Life Span	30,000 Hours
Size	3 inch

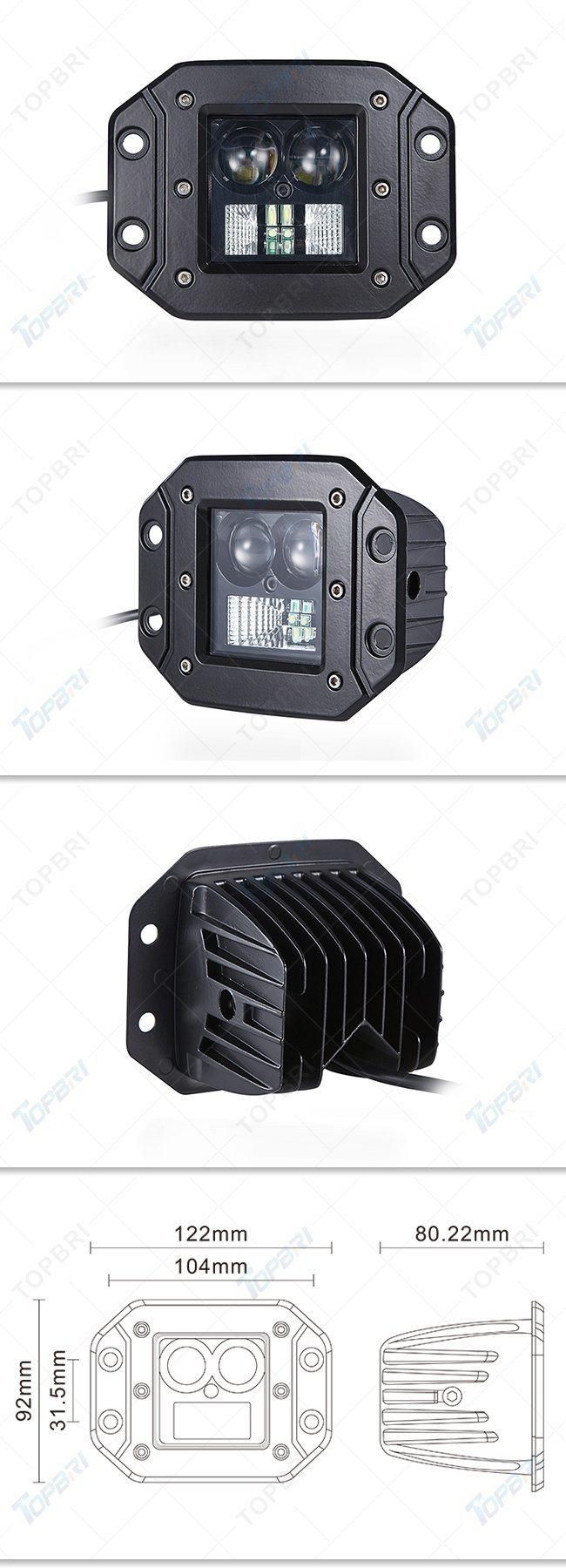

Detail Show


Advantages

1, High intensity LEDs,CREE,EPISTAR,BRIDGELUX,PHILIP and so on.High Quality assurance.
2, Multi-Volt Operation: Wide operating Voltage range from 9-32V,some items can custom made 9-80V DC.
3, Durable Housing: Heavy-Duty Die Cast Aluminum housing,and with good Sealed.Good function in Water
    and Dust Proof.
4, Oversized heatsink keeps LEDs running cooler,resulting in brighter and life span longer.
5, Mounting bracket,with adjustable stainless steel bracket,anti corrosion and multi-angle adjustable.

Application

LED work light is great for off-road driving lights, daytime running lights, or fog lights on your motorcycle, truck, ATV,or UTV and can also be used for Industrial lighting, Marine lighting, and Agriculture tractor lighting.

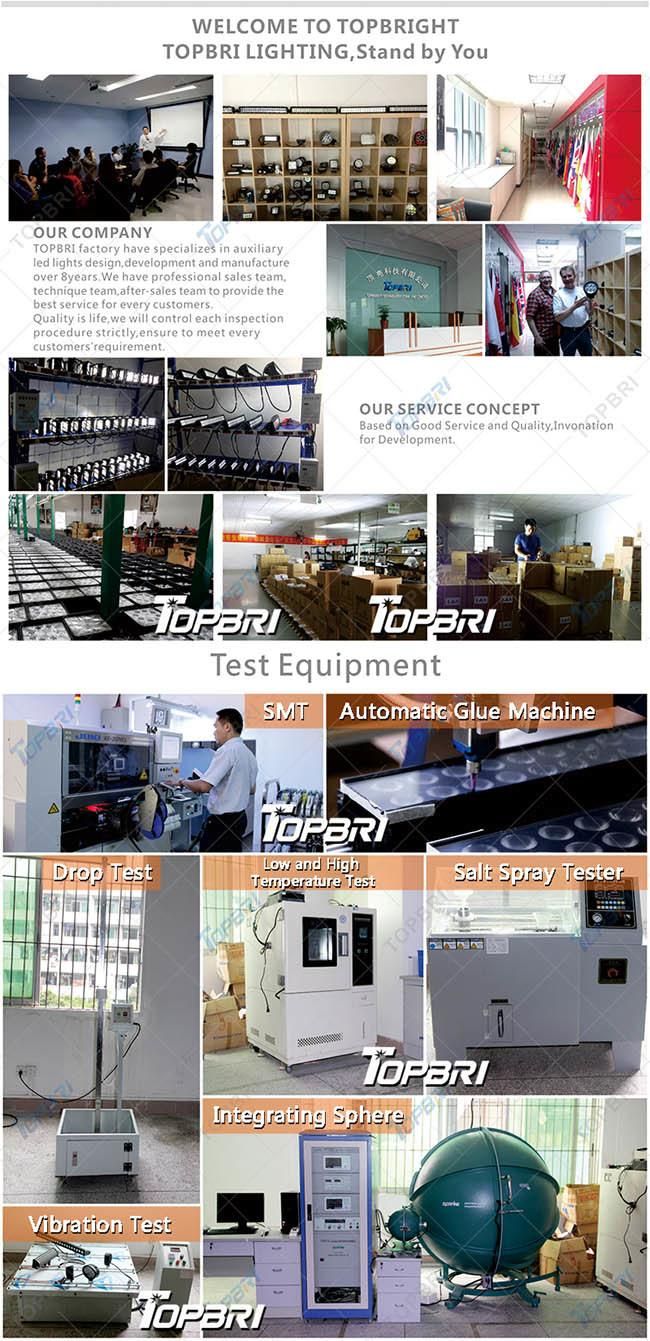

Office,Factory and Equipment Show

TOPBRI LIGHTING have over 8 years experiences in the Auto auxiliary lights development,manufacture and assemble.
Our led lights mainly used for Agricultural,industrial equipment ,Marine and the Caravan,Camping many different areas.



Our Certificates



Package and Delivery


Quantity/Carton	30PCS/Carton
Carton G.W.	20  KGS
Dimension	48*27*27 CM
Sample order Delivery	Shiping by Express,takes 3-5days
Bulk order Delivery	Shiping by Sea,takes 7-15days


How to Contact us?

TOPBRIGHT TECHNOLOGY CORP. (HK) LIMITED
Website:topbri.en.made-in-china.com
Factory Add:No.238-1 Shixin Road,Xintang Town Zengcheng District,Guangzhou,China,511340

FAQ

Q1. How are yours lights different from other suppliers?
A:We are one of the earliest LED LIGHTS factory in China,who has rich experience in circuit board design.Use ROHS material,PCB thickness more than 2mm,with high performance heat dismiss,which can protect the light and make it longer life.Our lights cover use ROHS ADC12 Aluminum,with better anti-vibration and anti pressure function.
Usually we will use high intensity Cree leds,which imported from USA.If customer have special requirement,need economy version,we will use the Epistar leds or depend on customers'requirements.

Q2. When will my order ship?
A: Sample order will be shipped within 3-5working days after payment received, 7 to 15 working days for bulk order.

Q3. How about your light packing ?
A: TOPBRI Lights usually are packed with neutral box,If customer need custom made box,it is also acceptable.

Q4. How do I release order?
A: Send us an inquiry from made in china or email us directly, then our sales department will assist you .

Q5. Which payment terms available?
A:Paypal. Western Union, TT(Telegraphic Transfer), LC are acceptable.

Q6. What about after sales service ?
Defective rate of TOPBRI led light is 0.5%, in case you got problem light. Please don't worry.
LED work light: Please provide high-definition product's photos or video to show problem. Then we will send new lights together with next order after we get approved from after sales department.
LED light bar: Please provide high-definition product's photos or video to show problem. Then we will send replacement parts together with next order after we get approved from after sales department .
