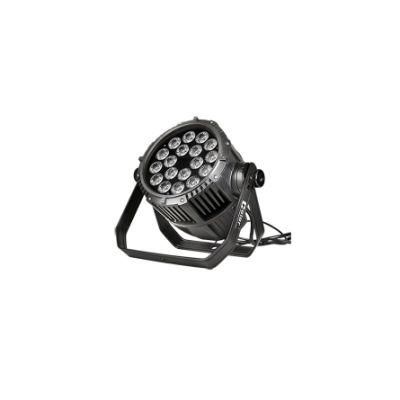

• Model NO.：LEDPAR 9-IP
• Shell Material：Aluminium Alloy
• Certification：CE, RoHS, EMC
• Application：Stage, Swimming Pool, Fountain, TV Studio, Outdoor Architectural Lighting
• Exterior Finish：Black
• Power Consumption：160W,130W,90W
• Transport Package：Carton , Flight Case
• Specification：120(D)*245(W)*290(H)mm
• Trademark：Color-imagination
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. LEDPAR 9-IP Shell Material Aluminium Alloy Certification CE, RoHS, EMC Application Stage, Swimming Pool, Fountain, TV Studio, Outdoor Architectural Lighting Exterior Finish Black Power Consumption 160W/130W/90W Transport Package Carton / Flight Case Specification 120(D)*245(W)*290(H)mm Trademark Color-imagination Origin China Production Capacity 50000PCS/Year

Product Description

• Light Source

  Source:
  SI-014A LEDPAR 918IP:
  9*18W 6-in-1 LEDs (RGBWAUV)
  SI-014B LEDPAR 915IP:
  9*15W 5-in-1 LEDs (RGBWA)
  SI-014C LEDPAR 910IP:
  9*10W 4-in-1 LEDs (RGBW)
  Life Span: 50000H
  The life span may vary depending on
  several following factors but not limited to:
  Environmental Conditions, Power/Voltage,
  Usage Patterns (On-Off Cycling), Control,
  and Dimming)



  Optics

  High efficiency optic system
  25°Beam angle (15°/45°optional)
  35°Field angle
  High output



  Color System

  RGBWAUV, RGBWA, RGBW
  Smooth and pure color mixing capability



  Strobe Effect

  0-20Hz high speed LED shutter/strobe
  effect with variable speed



  Dimming System

  0-100% Smooth linear LED dimming



  Control System

  10(6-in-1), 9 (5-in-1), 8 (4-in-1) DMX
  channels USITT DMX-512
  DMX512, master-slave,
  sound or auto operation
  Built-in programs
  Shielded input signal protection for stable
  signal without interference
  IP65 3-pin XLR cables IN/OUT



  Display System

  LED display
  4 Control buttons



• Cooling System

  Advanced cooling system
  integrated aluminum
  Over temperature protection management



  Power Supply

  Electronic supply with active PFC
  AC100-240V 50/60Hz
  IP65 Power cables IN&OUT
  160W/130W/90W Power consumption



  Housing

  Aluminum die-casting structure
  2 Hanging brackets
  Exterior finish: Black



  Installation

  1*Safety attachment point



  Operating Condition

  Operating positions:
  all (device on floor or fixed to a support)
  -25ºC to 45ºC ambient temperature
  IP65 protection rating



  Compliance

  CE
  2014/35/EU - Safety of electrical
  equipment supplied at low voltage (LVD)
  2014/30/EU -
  Electromagnetic Compatibility (EMC)
  2011/65/EU - Restriction of the use of
  certain hazardous substances (RoHS)



  Weight

  N.W.: 4.9kg
  G.W.: 5.3kg



  Dimensions

  Product Dimensions:
  120(D)*245(W)*290(H)mm
  Packing Dimensions:
  250(D)*250(W)*290(H)mm
