• Model NO.：LED 3000
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE, EMC, LVD
• Color：RGB,RGBW,RGBA
• Transport Package：Carton,Flycase
• Specification：255*255*365mm
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

Basic Info.

Model NO. LED 3000 Electric Current Type AC Input Voltage 220V Diffuser Tempered Glass Shell Material Aluminium Alloy LED Chips CREE Certification CE, EMC, LVD Color RGB/RGBW/RGBA Transport Package Carton/Flycase Specification 255*255*365mm Trademark MSLighting Origin Guangzhou, China HS Code 94054090 Production Capacity 500PCS/Week

Product Description

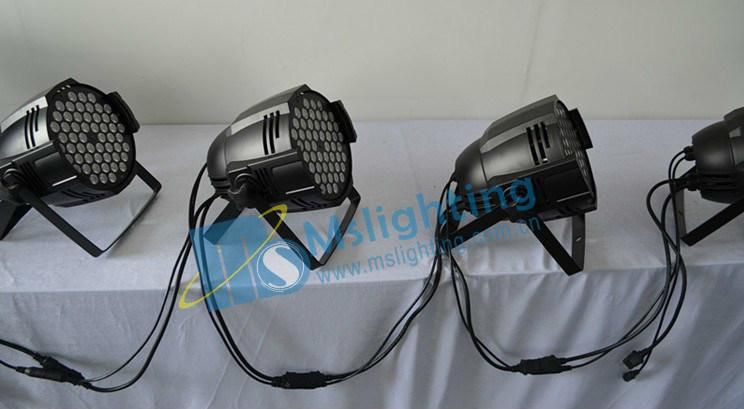

LED high power PAR light is designed by MSLIGHTING Co., Ltd. It adopts in 84*1W/3W, 54*3IN1/4IN1RGBW high power LED as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.

The cover is aluminum die-casting, artistic generosity, with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting, electronic dimming from 0-100% (no color change) high-speed stroboscopic white or color change; Maximum ambient temperature of 40degree, the largest lamp temperature 60degree.

It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
Item No1: LED-3000/LED-3000-1(With Wreless Control)
Light Source: 84* 1W high power LED (28R, 28G, 28B, 30W)/ RGBW/RGBA
LED current: 320mA
Power Consumption: 124W
Light Projecting Distance: 5-50M

Item No1: LED-3000A/LED-3000A-1(With Wreless Control)
Light Source: 84* 3W high power LED (28R, 28G, 28B, 30W)/RGBW/RGBA
LED current: 680mA
Power Consumption: 320W
Light Projecting Distance: 5-90M

Item No1: LED-3000C/LED-3000C-1(With Wreless Control)
Light Source: 54* 5W high power LED (12R, 14G, 14B, 14W)/RGBW/RGBA
LED current: 1400mA
Power Consumption: 320W
Light Projecting Distance: 5-90M

Item No1: LED-3000E/LED-3000E-1(With Wreless Control)
Light Source: 36* 10W 4IN1 RGBW/RGBA Multi-Color high power LED
LED current: 2000mA
Power Consumption: 320W
Light Projecting Distance: 5-90M

Item No 3: LED-3000F/LED-3000F-1(With Wreless Control)
Light Source: 54* 3in1 high power LED
LED current: 320mA
Power Consumption: 400W
Light Projecting Distance: 5-90M
Specification:
Housing Material: Die-casting Aluminum
Housing Color: Black/Silver White
Aperture Cover: PMMA
Operating voltage: 90-130V AC / 176-254V AC
Control Mode: Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
DMX Channel: 7CH/4CH
Control panel: Digital 4 characters alphanumeric
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100, 000 hours
Beam Angle: 250/300/450/600Operating Temperature: -20-+45
Compatibility:
1. Color Range 16.7 million additive RGB colors; Continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: It is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
5.7channel Mode and 4channel Mode would change each other in every light
6.7CH Mode DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 Strobe & Color change/ color gradual change open
CH 7 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7.4CH Mode DMX Value
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)

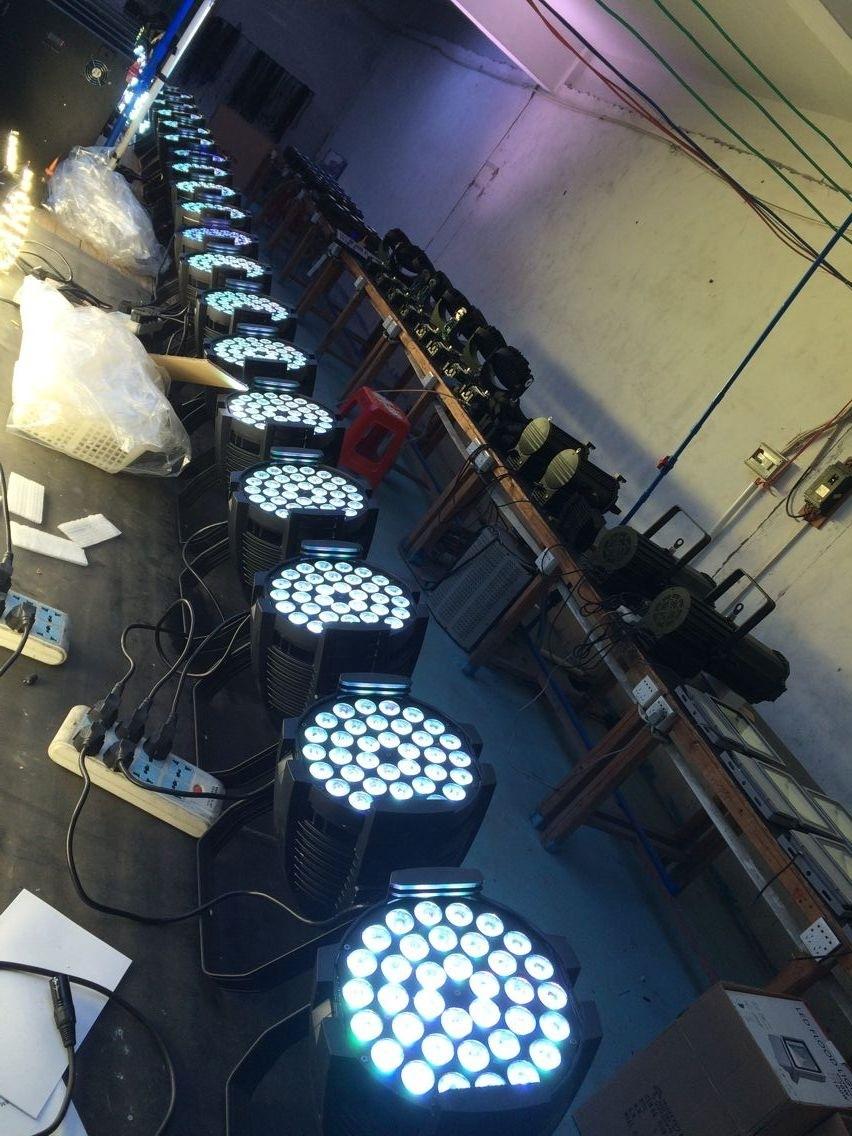

Production Line:




FAQ

1. MOQ:

Generally if you choose the different products,our minimum order qty.also will be different.

2. Payment:

Actually, payment would be preferred,We accept by T/T (Transfer / Payment), Western Union/Money gram, Pay pal, Cash,L/C...and so on.

3. Delivery time:

The goods need 2-3 days to be made after receive deposit.

4. Why choose us?

a. We are China Leading manufacturer. We are confident that with our products Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. OEM is available.



After service

1.24 months warranty

2. If there is a problem with the product, please contact us and sent us the pictures or video for analyzing.Then we will guide you to fix it and provide the replacement parts for free if needed.

Our service

1. Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3. OEM&ODM service.
4. Special discount are offered based on order quantity.
5. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6. Your sales area, design and all your private information will be protected
