• Model NO.：LCD-GRP-B-073
• Battery Type：Lin Battery
• Emitting Color：Cool White
• Material：GRP : Glass Fiber Reinforced Unsaturated Polyester
• Certification：CE, RoHS, FCC, SAA TUV ETL
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Basic Info.

Model NO. LCD-GRP-B-073 Battery Type Lin Battery Emitting Color Cool White Material GRP : Glass Fiber Reinforced Unsaturated Polyester Certification CE, RoHS, FCC, SAA TUV ETL Transport Package Carton Box Trademark LCD brand Origin Shenzhen City, China HS Code 9405409000 Production Capacity 50000PCS / Year

Product Description

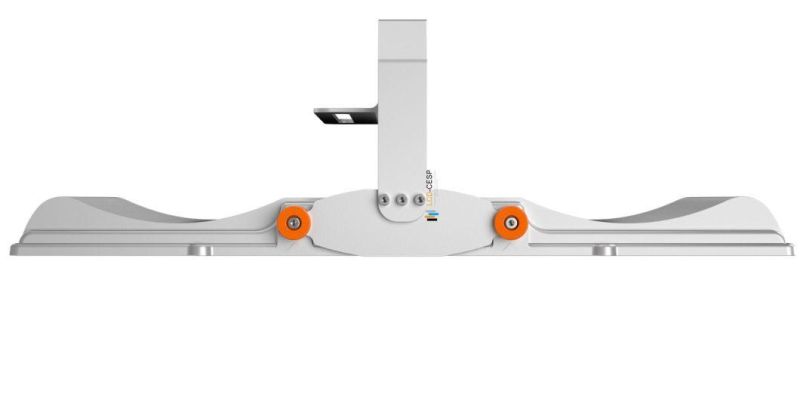

LCD-GRP-E-XXXX Series explosion & corrosion-proof full plastic fluorescent lamp(IIC,tD)



Features
1 .The enclosure is molded with glass fiber reinforced unsaturated polyester resin with high strength, impact resistance, high temperature resistance, cold-resistant, strong corrosion resistance properties;
2. The lampshade is molded with injection polycarbonate, with high light transmittance, impact resistance, cold-resistant, strong corrosion resistance properties and anti-dazzle design;
3. The enclosure adopts curve seal structure, and the sealing strip adopts high temperature resistance and anti-aging silicone rubber with fine dust & water & strong corrosion- proof properties;
4. Special explosion-proof electronic ballast with short circuit and open circuit protection performance is matched with prevention circuit for lamp aging effect and air leakage phenomenon, which is energy-efficientfitted (COSΦ≥0.98); Wide voltage input,which can keep constant power output in 150~250V voltage range and don't affect the output light efficiency;
5. Adopts normal T8 lamp tube and saves the maintenance fee;
6. Can be equipped with explosion-proof LED tube,have super long life,energy saving,environmental protection,high luminous efficiency (120lm/W),high power facter(≥0.95) and so on function,wide voltage input(180~265V),constant power output,own constant current,open circuit,short circuit and so on protective function;
7. It can be fitted with emergency device on request, when the power is off, lamps can convert to emergency lighting state automatically;
8. Built in explosion-proof switch which is equipped with interlock device,and it can automatically power off when opening cover, which ensures safety;
9. Wiring with cable or steel tube. (Please specify when wiring with steel tube).


Applications
1. Can be used in Zone 1 and Zone 2,group II A, II B and II C explosive atmosphere and zone 20, zone 21 and zone22 flammable dust atmosphere;
2. Temperature class:T1~T4(T6);
3. Indoor or outdoor (IP65);
4. Can be used in chemical, oil refining, oil, marine oil platform, tankers, chemical industry and other dangerous place for illumination.

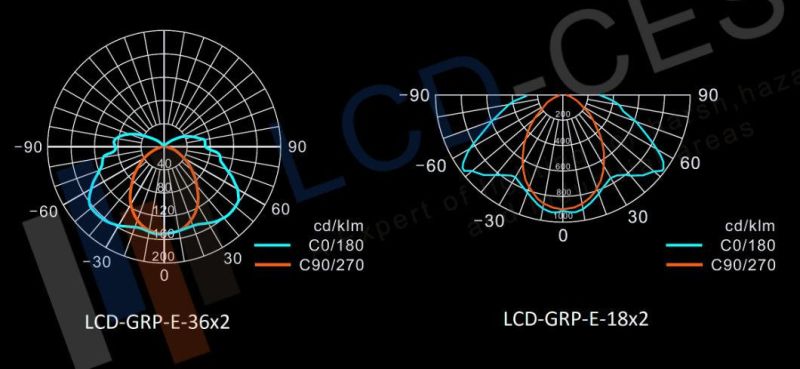

Luminous distribution curve

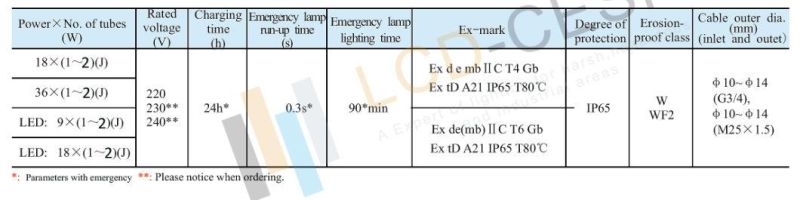

Main technical parameters

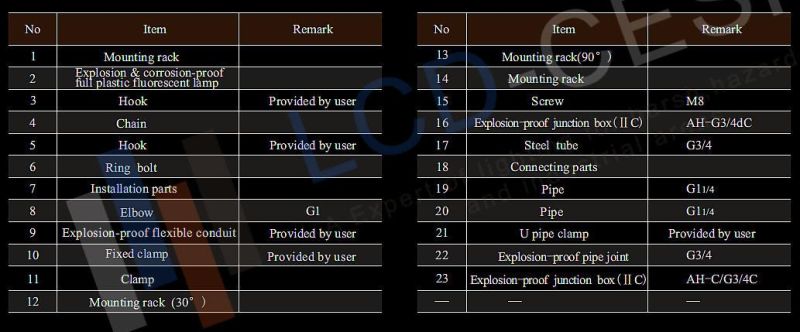

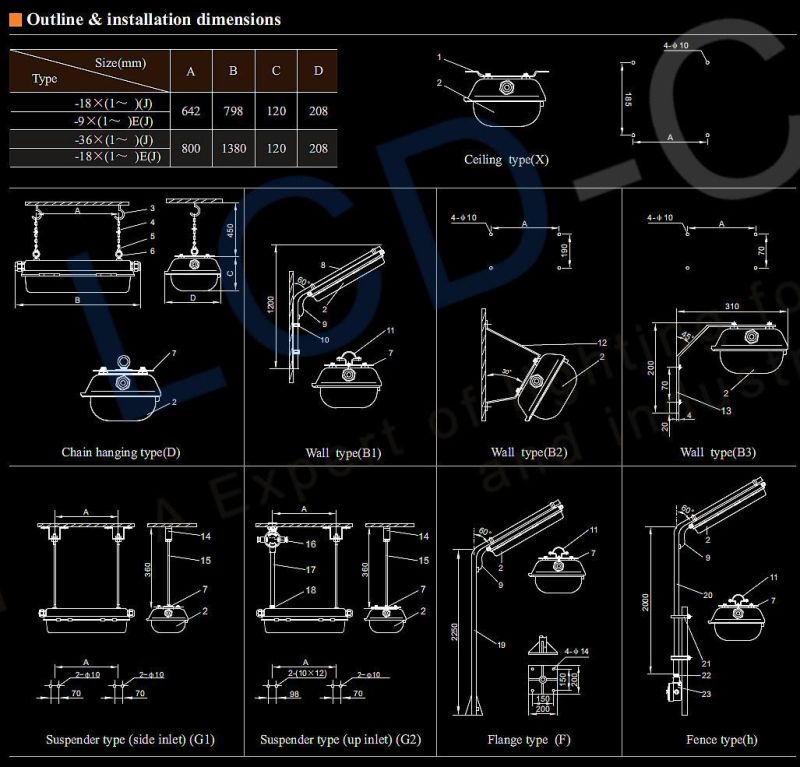

Outline & installation dimensions
