• Model NO.：Qled3-105-1
• Voltage：24V
• Voltage Type：AC,DC
• LED Type：5730
• Certification：CCC, CE, ETL, RoHS
• Lifetime：50000hours
• Color Temperature(CCT)：4000-6500
• Transport Package：Carton
• Trademark：Otennlux
• Origin：China
• Production Capacity：10000,Years

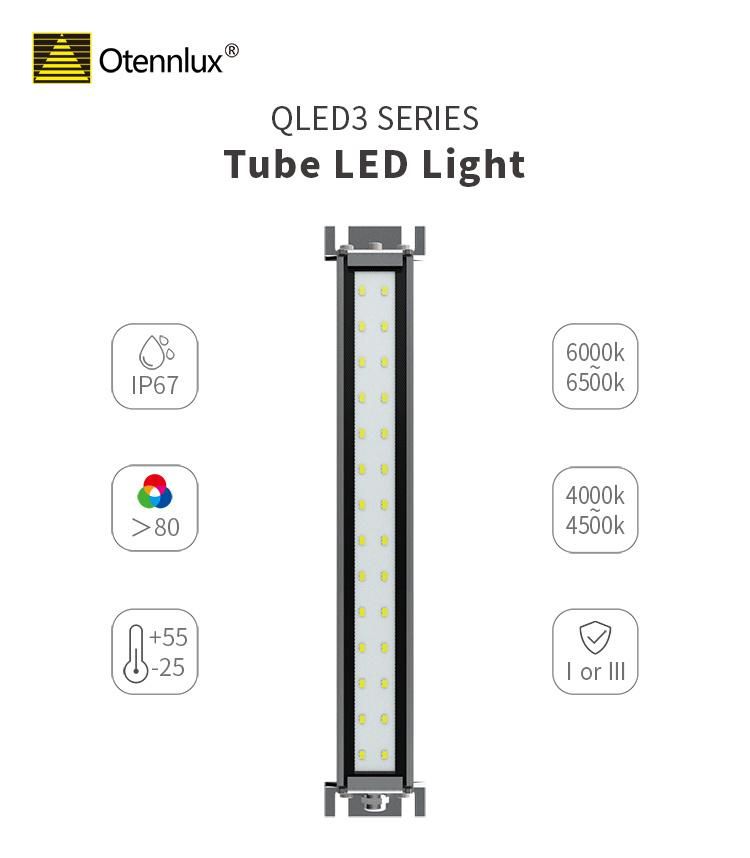

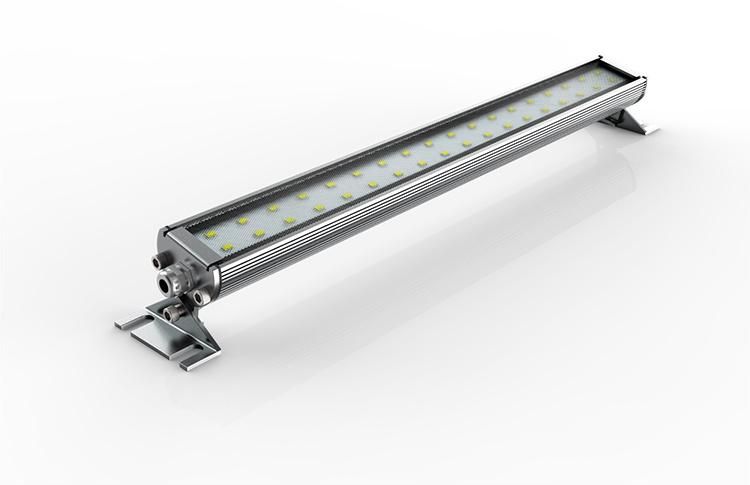

Item Number
 QLED3-105-1Materialaluminum alloy+Toughened glassIp Rate
 IP67Power5wVoltage

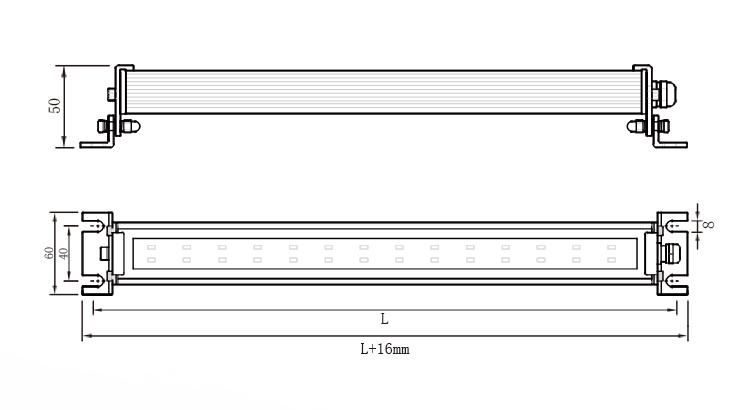

 24v AC/DCSize(C bracket)218x40x50 mmLamp Luminous Efficiency(lm/w)
 >100lm/wFixed modefixed by screws

Features:

*CE,CCC,ROHS Approval;
*Good functions of Water proof,oil proof,anti-corrosion and anti-riot;
*Uniform distribution of light,excellent color rendering and good lighting effects;
*Easy installation and low maintenance;

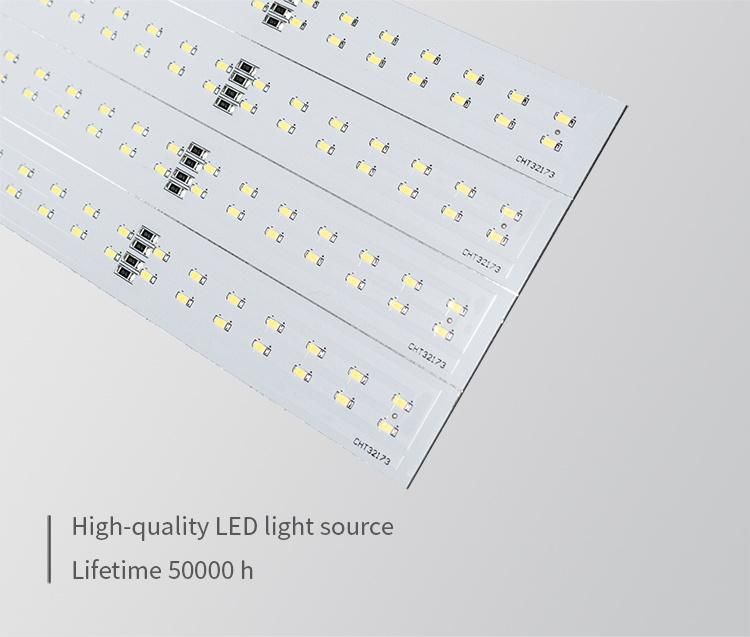

*The LED chips of light source are imported from USA,it has good performance of low power consumption,high efficiency and long life time;
*The high quality of AC/DC LED driver with the good parameters of low power consumption ,protect circuit function and long life time;

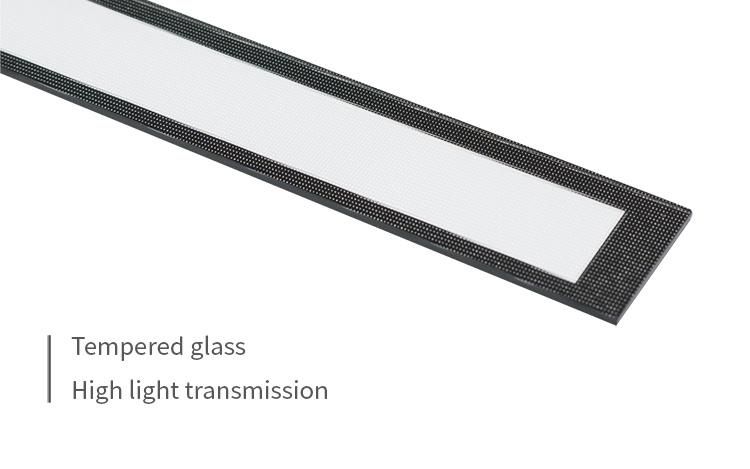

*The qualified aluminum with good dissipation,transparent and tempered glass;
*The quality of waterproof connector,aluminum PCB,silicone rubber sealing ring and reflector/lens;
*Color rendering index>80;
*Abient working temperature:-25ºC~+55ºC.

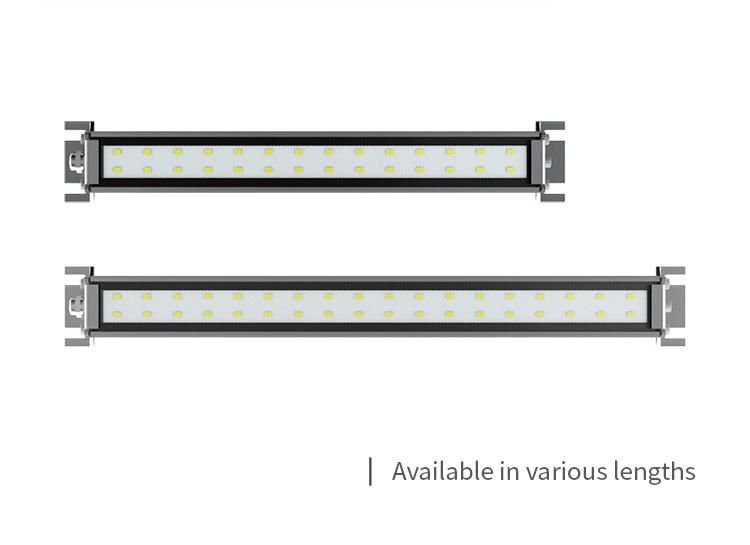

                                                                          More ItemModelInput VoltagePowerColor TemperatureLuminous FluxInstalltion Dimension (L×D×H)Total LengthQLED3-103-124V DC3W6000K~6500K360 lm118mm×40mm×50mm134mmQLED3-103-224V DC3W4000K~4500K360 lm118mm×40mm×50mm134mmQLED3-103-3100V~240V AC3W6000K~6500K360 lm118mm×40mm×50mm134mmQLED3-103-4100V~240V AC3W4000K~4500K360 lm118mm×40mm×50mm134mmQLED3-105-124V DC5W6000K~6500K600 lm218mm×40mm×50mm234mmQLED3-105-224V DC5W4000K~4500K600 lm218mm×40mm×50mm234mmQLED3-105-3100V~240V AC5W6000K~6500K600 lm218mm×40mm×50mm234mmQLED3-105-4100V~240V AC5W4000K~4500K600 lm218mm×40mm×50mm234mmQLED3-106-124V DC6W6000K~6500K720 lm304mm×40mm×50mm320mmQLED3-106-224V DC6W4000K~4500K720 lm304mm×40mm×50mm320mmQLED3-106-3100V~240V AC6W6000K~6500K720 lm304mm×40mm×50mm320mmQLED3-106-4100V~240V AC6W4000K~4500K720 lm304mm×40mm×50mm320mmQLED3-110-124V DC10W6000K~6500K1200 lm304mm×40mm×50mm320mmQLED3-110-224V DC10W4000K~4500K1200 lm304mm×40mm×50mm320mmQLED3-110-3100V~240V AC10W6000K~6500K1200 lm304mm×40mm×50mm320mmQLED3-110-4100V~240V AC10W4000K~4500K1200 lm304mm×40mm×50mm320mmQLED3-112-124V DC12W6000K~6500K1440 lm425mm×40mm×50mm441mmQLED3-112-224V DC12W4000K~4500K1440 lm425mm×40mm×50mm441mmQLED3-112-3100V~240V AC12W6000K~6500K1440 lm425mm×40mm×50mm441mmQLED3-112-4100V~240V AC12W4000K~4500K1440 lm425mm×40mm×50mm441mmQLED3-115-124V DC15W6000K~6500K1800 lm516mm×40mm×50mm532mmQLED3-115-224V DC15W4000K~4500K1800 lm516mm×40mm×50mm532mmQLED3-115-3100V~240V AC15W6000K~6500K1800 lm516mm×40mm×50mm532mmQLED3-115-4100V~240V AC15W4000K~4500K1800 lm516mm×40mm×50mm532mmQLED3-118-124V DC18W6000K~6500K2160 lm602mm×40mm×50mm618mmQLED3-118-224V DC18W4000K~4500K2160 lm602mm×40mm×50mm618mmQLED3-118-3100V~240V AC18W6000K~6500K2160 lm602mm×40mm×50mm618mmQLED3-118-4100V~240V AC18W4000K~4500K2160 lm602mm×40mm×50mm618mmQLED3-124-124V DC24W6000K~6500K2880 lm791mm×40mm×50mm807mmQLED3-124-224V DC24W4000K~4500K2880 lm791mm×40mm×50mm807mmQLED3-124-3100V~240V AC24W6000K~6500K2880 lm791mm×40mm×50mm807mmQLED3-124-4100V~240V AC24W4000K~4500K2880 lm791mm×40mm×50mm807mmQLED3-130-124V DC30W6000K~6500K3600 lm1015mm×40mm×50mm1031mmQLED3-130-224V DC30W4000K~4500K3600 lm1015mm×40mm×50mm1031mmQLED3-130-3100V~240V AC30W6000K~6500K3600 lm1015mm×40mm×50mm1031mmQLED3-130-4100V~240V AC30W4000K~4500K3600 lm1015mm×40mm×50mm1031mm



Company Information

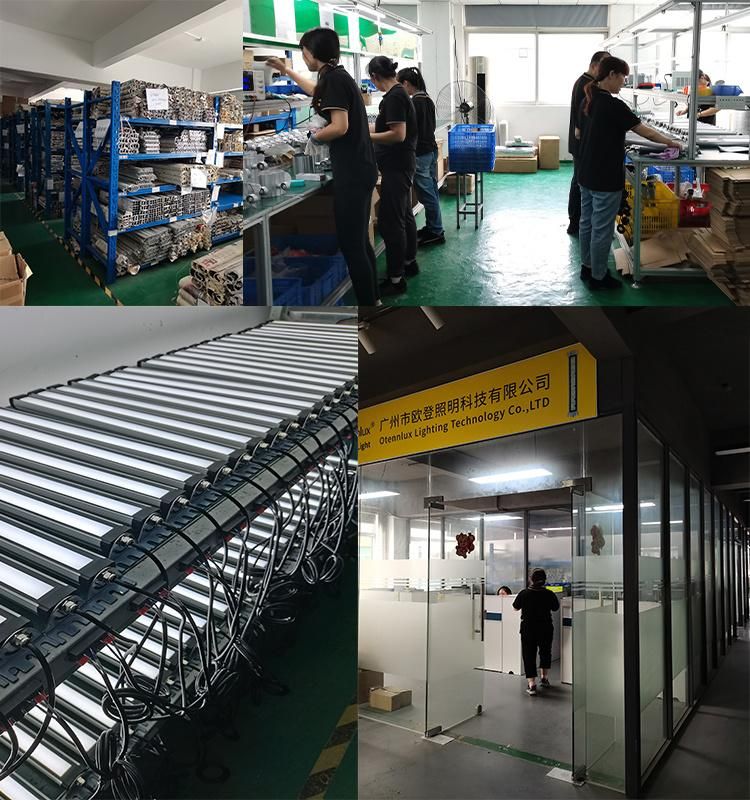

Located in GuangZhou south railway station area,GuangZhou Otennlux lighting Technology Co.,Ltd,was established in2008.
It's a high tech company which specializing in LED working light, visual-light, outdoor light and LED warning light.
We dedicated ourselves to R&D,Production,and also after-sale service.With our skilled R&D team,our company is fully capable of independent product design and development.

Our products include surface-mounted,tube light,Flexible-Head,Pivoting-Head LED,Arm-Mounted,Bracket Light,Magnifier,Multi-Functional Signal,and so on.
Most of products got CE,EX,FC and RoHScertifications.We are fully able to meet our customers'needs, producing designs according to their requirements and providing comprehensive support services and solutions.

Our products can be made IP67,IP68 and IP69K level waterproof with excellent heat dissipation qualities and can be adapted to work reliably in harsh environments(-30 to 80 degrees Celsius).Each product batch is burned in at 100% of maximum load temperature for 4 to 24 hours before shipping.Each product has a set of strict control procedures and norms derived from extensive technical research and testing.

Our products are mainly used in machine,equipment,CNC,and other projects.Through their widespread use,we have earned a reputation for quality exported to Europe,the United States, Japan and southeast Asia.The company aims to grow its business relationships,with keen market insight,acquiring cutting-edge information in order to be receptive to the needs of the market.

We strive to capture the market with a quality product,create a future that encourages talent while always acting with the utmost corporate honesty and integrity.

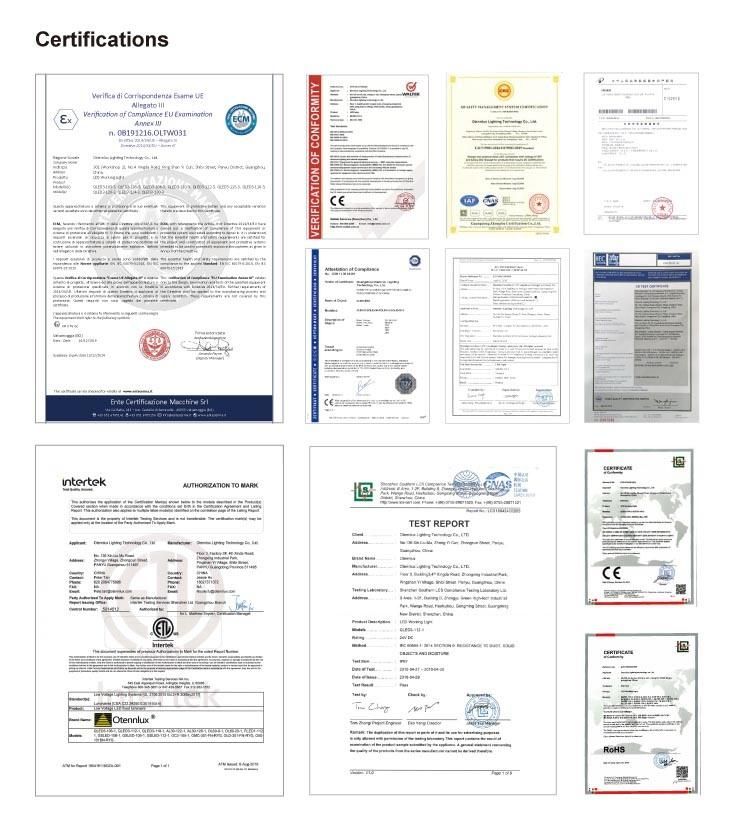

Certifications

Otennlux led work lights with certification CE,CCC,ROHS, ETL,EXPLOSION-PROOF and so on.
Trade Show
 We attended lots of trade show in every year.
 Looking forward to meet you in the exhibition.

Advantage:
Otennlux is manufacturer of led work light, led signal tower light, cnc machine led spot light, led cabinet light ,led signal tower light with switch button for more than 10 years! We only provide high quality products.We have confidence in our products. So please contact us to begin the business between us.
