Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant

Shenzhen ATA Technology Co., Ltd.
  • IP Rating：IP65
  • Emitting Color：Customized
  • Input Voltage：AC100-277V
  • Power：1000W
  • Shape：Bar
  • Warranty：3 Years

Base Info

  • Model NO.：ATA-1000WB-F
  • Housing Material：Aluminum
  • Life：50000h
  • LED Chips：Epiled
  • Certification：CE, RoHS, UL, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
  • LED Type：3W,LED 3030 LED
  • LED Quantity：130PCS*10*3=3900W
  • Actual Power：1000W
  • Ppf：2727.54umol,S
  • Efficiency：2.7umol,S
  • Cooling Methods：Passive Cooling or Water Cooling
  • Beam Angle：140
  • Work Environment：-20+40
  • Working Humidity：10%-95%Rh
  • Heat Output：1120BTU,H
  • Spectrum：Red Blue Ratio, Full Spectrum
  • Material：Aluminum
  • LED Brand：Epiled,Sumsung,CREE,Osram
  • PF：0.9
  • Lighting Area：1m High 6.0 Square Meters
  • Transport Package：Pearl Foam Inner Box and K=K
  • Specification：1022*1015*95mm
  • Trademark：ATA
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：300, 000,Pieces,Month

Description

Net Weight 18.7KG18.7KG18.7KG41.24lbs41.24lbs41.24lbsPF0.90.90.9Heat dissipation modeNatural coolingNatural coolingNatural coolingLight decay <15% In three years<15% In three years<20% In Two yearsIP rating IP65IP65IP65Working Humidity 10%-95%RH10%-95%RH10%-95%RHPPF     µmol/s1586umol/s1586umol/s1586umol/sHeat Output 1120BTU/H1120BTU/H1120BTU/HLighting area 1M High  6.0M21M High  6.0M21M High  6.0M2Warranty Three yearsThree yearsTwo years
PPFD
Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant




Spectrum
Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant



Product Dimension
Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant


Installation: Suspending
Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant

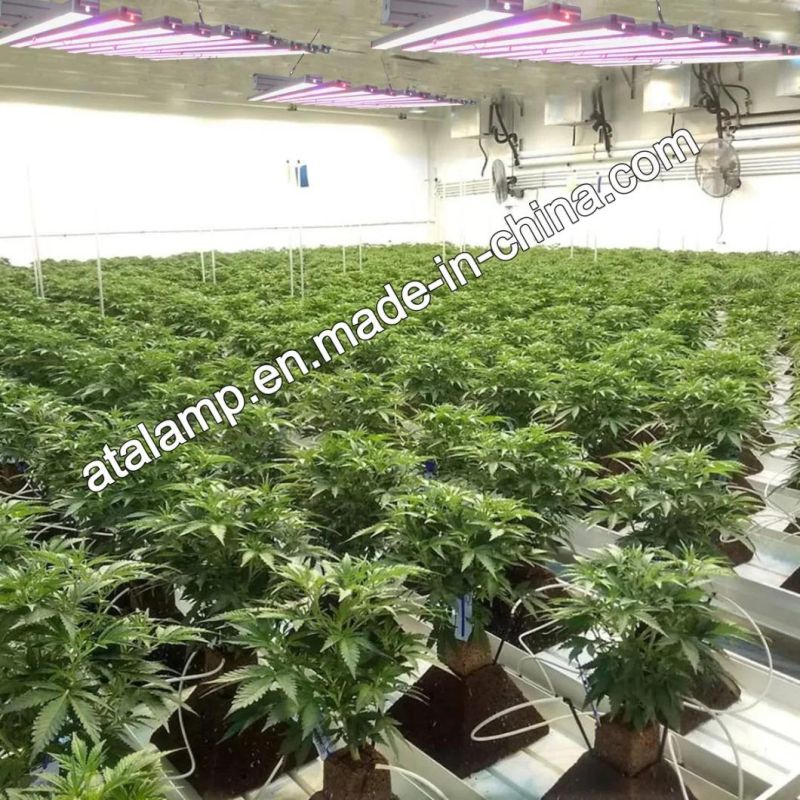

Application
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.
Hydroponic Vertical Farming System Samsung Lm301h Lm301b 600W 800W 100W 1200W LED Grow Light Full Spectrum for Indoor Plant


User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
