• Certification：CCC, CE, EMC, Energy Star, ETL, LVD, RoHS, UL
• Emitting Color：White
• 1 LED Power：2.8W
• LED Chips：Osram
• Waterproof：Waterproof
• LED Light Source：3020 SMD LED Module
• Power：2.8W
• Beam Angle：12*25
• Wire Length：110mm
• Driver Way：Constant Current
• Warranty：5 Years
• Transport Package：1 Chains(20 Module) Low Volume Electrostatic Bag
• Specification：100 x 26 mm
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：600, 000,Month

Basic Info.

Certification CCC, CE, EMC, Energy Star, ETL, LVD, RoHS, UL Emitting Color White 1 LED Power 2.8W LED Chips Osram Waterproof Waterproof LED Light Source 3020 SMD LED Module Power 2.8W Beam Angle 12*25 Wire Length 110mm Driver Way Constant Current Warranty 5 Years Transport Package 1 Chains(20 Module) Low Volume Electrostatic Bag Specification 100 x 26 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

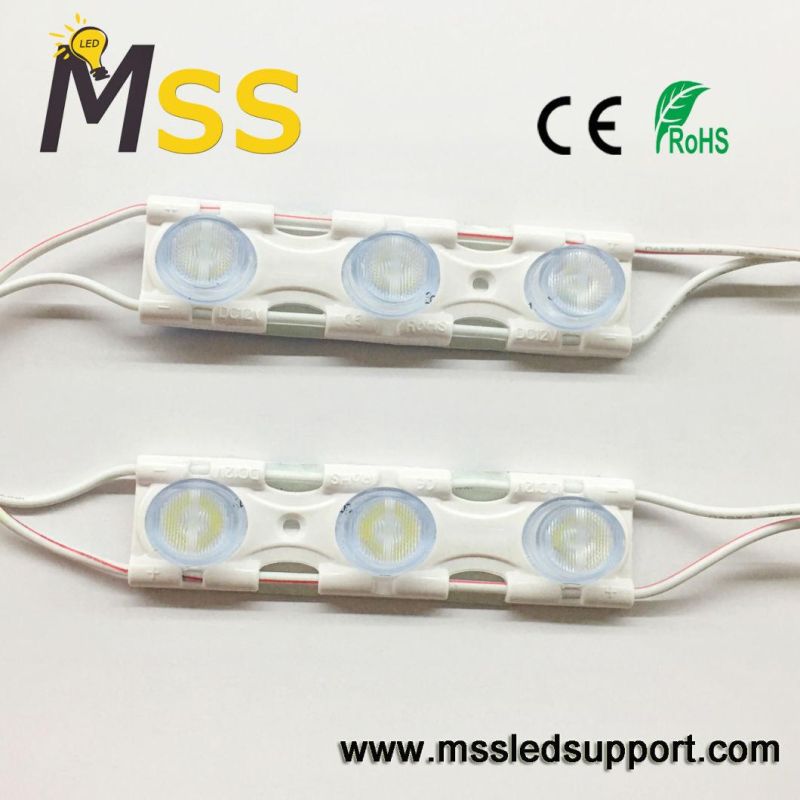

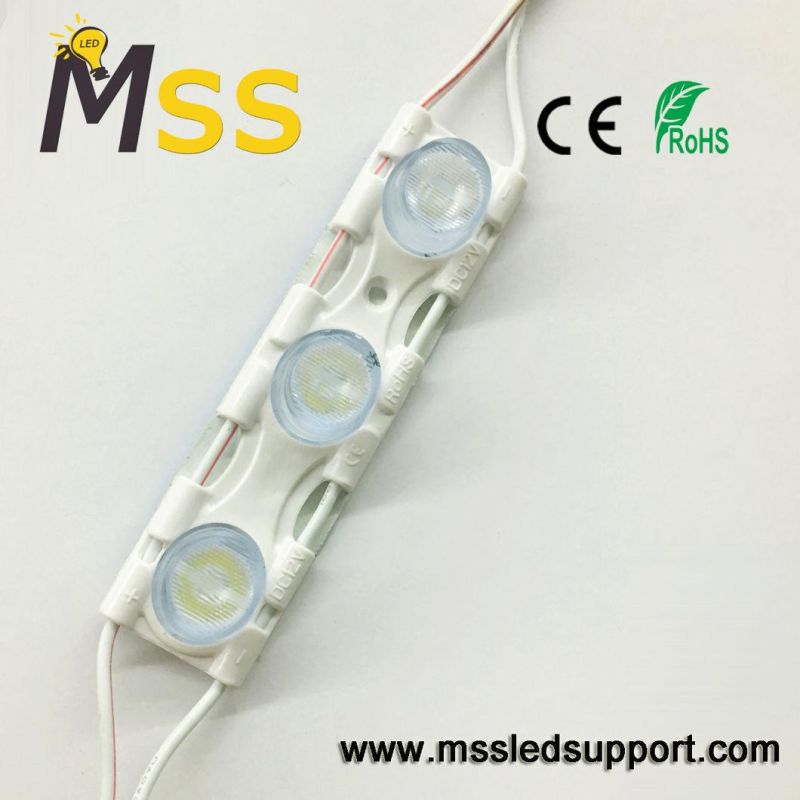

5Years Ultra bright 10000K SMD 3030 3LEDS 3W ABS Injection Edgelit Led Module For Side Light Box

Features

1. Constant Current Technology,20pcs per series
2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.

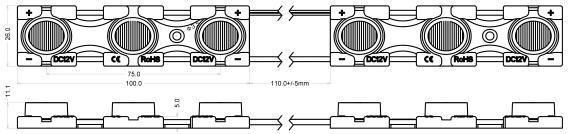

Dimensions



Technical parameters


Part no.	Color	Wave Length  Or CCT	Operating Voltage	Rated Power per module	Beam  Angle	Lm Flux  per module	IP Rank
EG3W3020-280B	Pure white	6000-7500K	DC12V	2.8W	13×25°	240lm	IP67

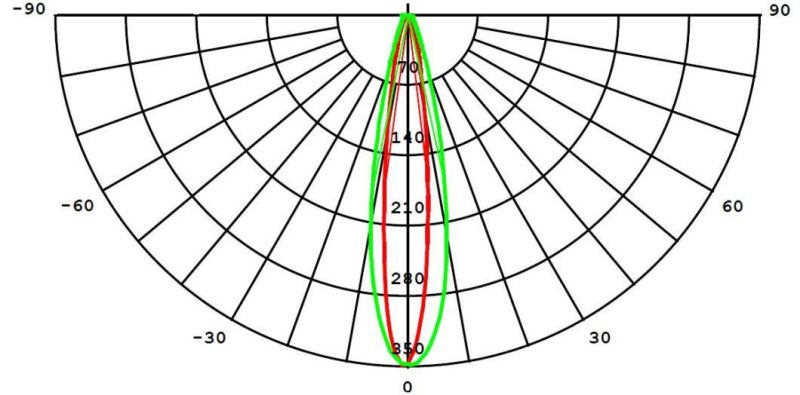

Led module light distribution graph

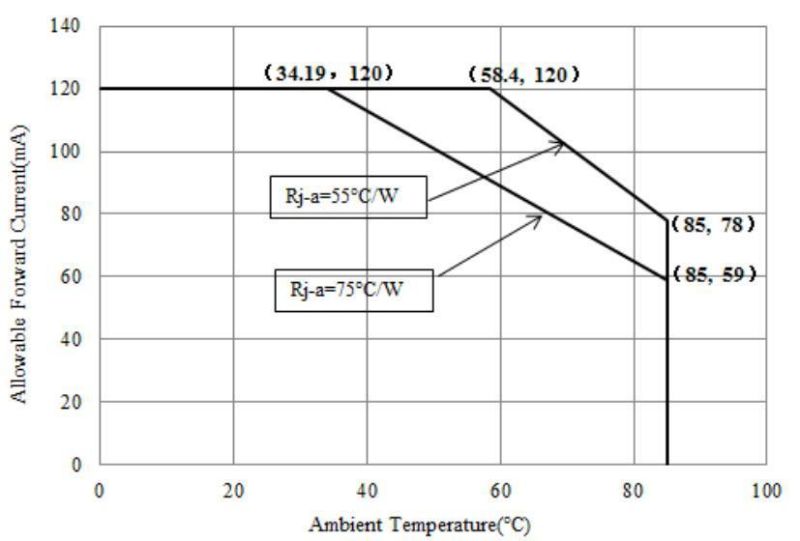

Ambient Temperature vs. Max. Current






Attention

1. Max. number of modules of one chain is 20pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

Packing
 1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.2. 20pcs per chain,2pcs chain in one Anti-static bag . (40 pcs in one Anti-static bag).3. 5 bags in one small carton . ( 200 pcs in one small carton).4. One outal carton contains two small cartons (400 pcs in one outal carton).

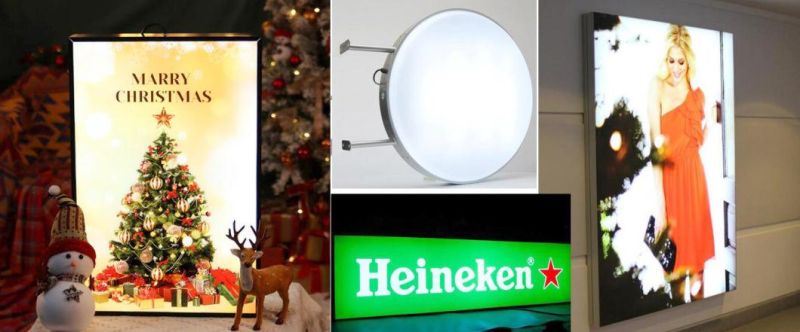

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting

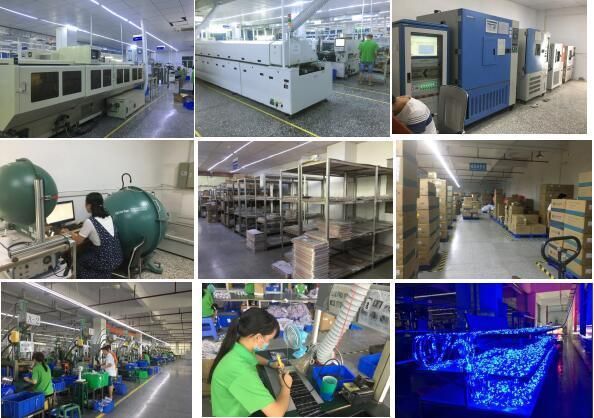

Company Profile :

MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products,  and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different  length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
