Rfbl107-III Platform Lamp 100W to 150W LED Explosion-Proof LED Lamp
Topenergys Electronic Co., Ltd.- Color Temperature：Cool White
- Emitting Color：Cool White
- IP Rating：IP65
- Power：41-50W
- Application：Industrial
- LED Chips Brand：Epistar
Base Info
- Model NO.：tp-ex-100w
- Voltage：90-260V
- Voltage Type：AC
- LED Type：SMD 2835
- Certification：CREE, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, UL, VDE
- Transport Package：1PC,Box
- Specification：D 127 * H 265 MM
- Trademark：TOPENERGYS
- Origin：China
- HS Code：94054090
- Production Capacity：50000PCS , Month
Description
VDE 3×1.0mm2
Range of application:
Explosion-proof grade:Ex d C T6 Gb/Ex tD A21 IP65 T80ºC
1.It is suitable for the area 1 and 2 of the explosive gas environment;
2.It is suitable for the area 21 and 22 of combustible dust environment;
3.Applicable to the explosive gas environment of IIA, IIB and IIC;
4.Applicable to temperature group of T1-T6 group;
5.Suitable for energy conservation projects, and places which is difficult for maintenance and replacement ;
6.Suitable for moisture environment , environment with corrosive gas, and high requirements for protection;
7.Widely used in oil exploration / refining, chemical and other dangerous environments and offshore oil platforms, tankers and other places; Long-distance floodlighting and street lighting.
model | size(mm) | weight(kg) | model | size(mm) | weight(kg) |
| XL-Ex-HBL30/40W | 240*240*210 | 3.8 | XL-Ex-HBL80/100W | 300*300*260 | 5.5 |
| 40W(emergency lighting) | 240*240*280 | 4.0 | 100W(emergency lighting) | 300*300*220 | 6.2 |
| XL-Ex-HBL50/60W | 280*280*245 | 4.2 | XL-Ex-HBL150W | 330*330*360 | 7.5 |
| 60W(emergency lighting) | 280*280*220 | 4.6 | XL-Ex-HBL200W | 370*370*260 | 10 |
Explosion-proof grade:Ex d C T6 Gb/Ex tD A21 IP65 T80ºC
1.It is suitable for the area 1 and 2 of the explosive gas environment;
2.It is suitable for the area 21 and 22 of combustible dust environment;
3.Applicable to the explosive gas environment of IIA, IIB and IIC;
4.Applicable to temperature group of T1-T6 group;
5.Suitable for energy conservation projects, and places which is difficult for maintenance and replacement ;
6.Suitable for moisture environment , environment with corrosive gas, and high requirements for protection;
7.Widely used in oil exploration / refining, chemical and other dangerous environments and offshore oil platforms, tankers and other places; Long-distance floodlighting and street lighting.

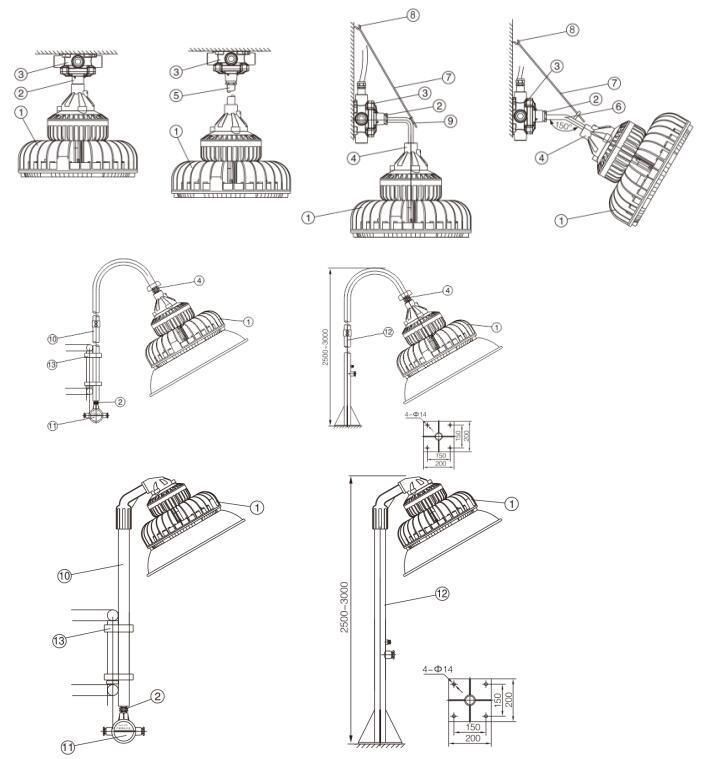

| Serial number | Part name | note |
| 1 | Explosion-proof LED lamp. | |
| 2 | Explosion-proof joint BHJ-G3/4C | reprovision |
| 3 | Explosion-proof junction box AH-G3/4 hoisting cover(IIC) | reprovision |
| 4 | Explosion-proof joint BHJ-G3/4-B | reprovision |
| 5 | Straight pipe G3/4x300mm | |
| 6 | 150º bend Elbow pipe G3/4x300mm | |
| 7 | Chain 450mm | |
| 8 | Expansion bolt M6 | |
| 9 | 90º bend Elbow pipe G3/4x500mm | |
| 10 | Fence type lamp pole G1 1/2 | |
| 11 | Explosion-proof junction box AH-G3/4 (IIC/DIP) | reprovision |
| 12 | Flanged lamp pole G1 1/2 | reprovision |
| 13 | U-shaped pipe clamp |
