60W LED Temporary Work Light with Socket Plug and Play Linkable

Dongguan Zhao Peng Lighting Technology Co., Ltd.

Power Wattage：60W
Lumens Delivered：8400lm
Light Efficiency：140 Lm,W
IP Grade：IP65
RC Distance：30m
Connecting Quantity：6 Samples Together

Base Info

Model NO.：NS-TWL60W-01-T
Input Voltage：AC100-277V
Dimming Availability：No
CRI：>80
CCT：2500-7000K
Light Type：SMD 2835
Light Base：Pothook
Material：Aluminum 6063
Life Span：>30, 000 Hours
Certifications：Ce,RoHS
Transport Package：12PCS,CTN; 15.5kg,CTN
Specification：Dia 141*156 mm
Trademark：New Sunshine
Origin：China
Production Capacity：500PCS,Day

Description

Basic Info.

Model NO. NS-TWL60W-01-T Input Voltage AC100-277V Dimming Availability No CRI >80 CCT 2500-7000K Light Type SMD 2835 Light Base Pothook Material Aluminum 6063 Life Span >30, 000 Hours Certifications Ce/RoHS Transport Package 12PCS/CTN; 15.5kg/CTN Specification Dia 141*156 mm Trademark New Sunshine Origin China Production Capacity 500PCS/Day

Product Description

Main factors for LED Temporary work light
60W LED Temporary work light with Socket Plug and Play Linkable

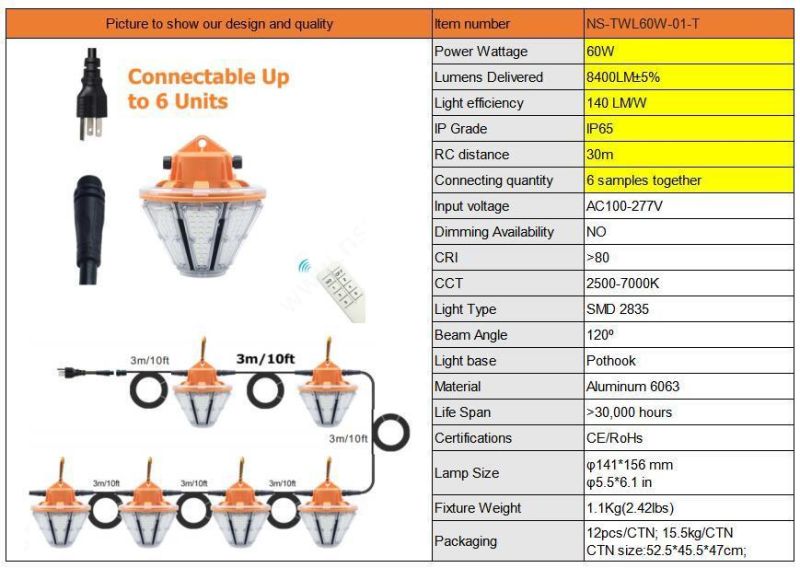

Clear pictures to show our quality and design

Brief Introduction
1. 360-degree luminescence,efficient ADC12 die-cast aluminum surface treatment to accelerate heat dissipation.
2. Wide pressure isolating constant current power,2.4G remote control, 360-degree omni-directional operation.
3. Portable hooks are convenient, flexible and easy to operate.

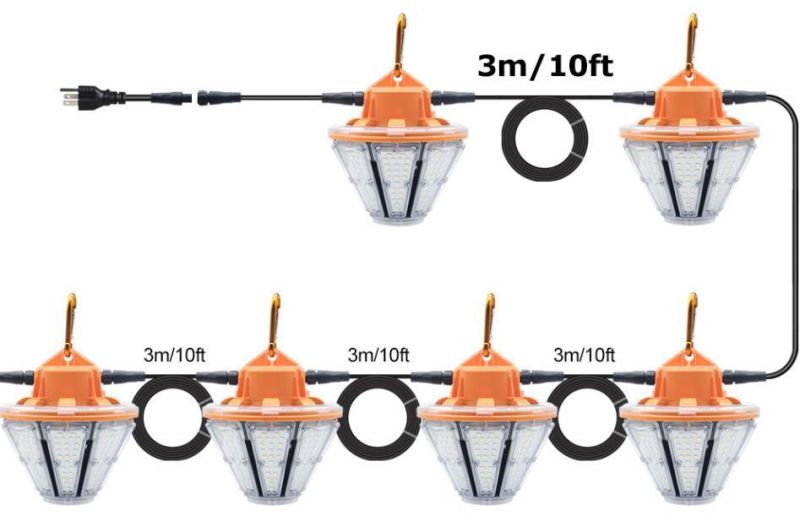

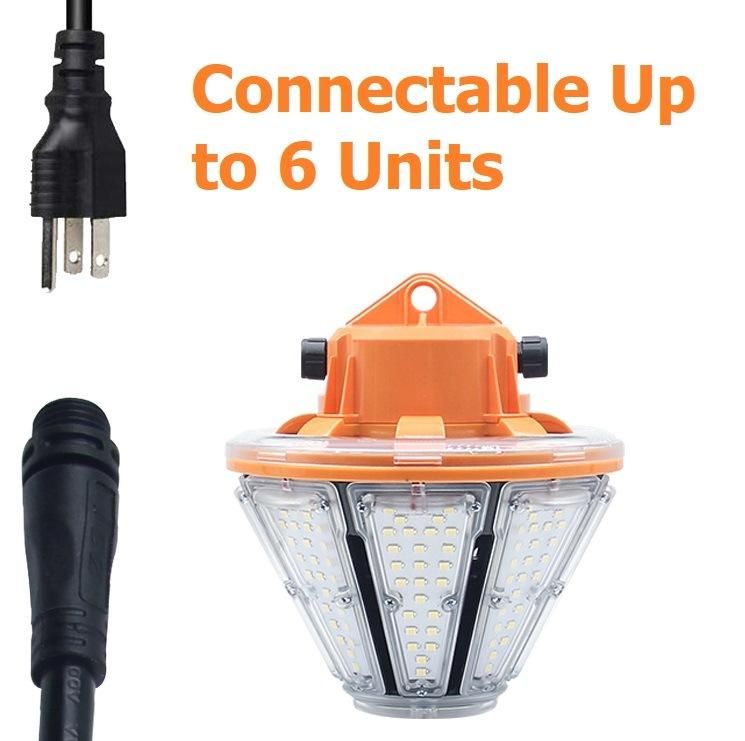

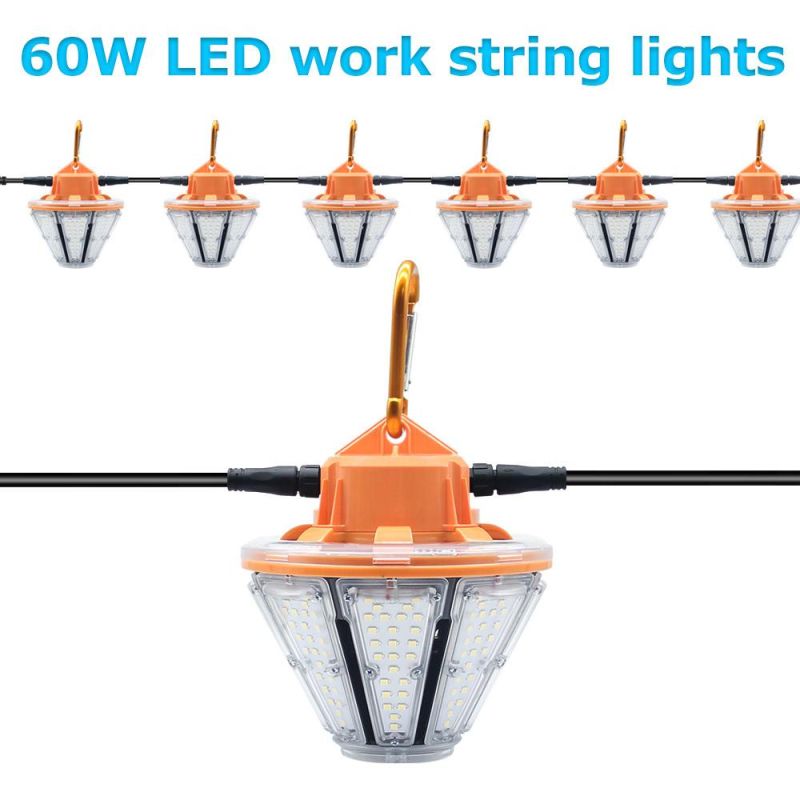

4. Provide socket connector, which can connect 6 lamps in series at the same time.
5. Suitable for outdoor wet or humid places. IP65 waterproof rating.
6. The luminaire can be controlled by the remote control.
7. One remote control can match 6 illuminators at the same time, and remote control distance is up to 30M.

Remote operation instructions
Coded function
1. If the LED lamp is already paired, it cannot be paired again and needs to clear the code first.
2. For the coded process:Firstly, turn off the AC power of the LED lamp for more than 10 seconds,
then power on the LED lamp, and press 3 times one of the digital keys of the RC(remote Control) in rapid
succession within 3 seconds, (For example, if you want to assign it to button1, then press button1),you will
see the LED lamp flashes 3 times.it's has been coded successfully, and the lamp has been assigned to
button1. The coding process is same to other buttons.
3. Note: One digital key can be paired with only one LED lamp.

Code Cleared function
Firstly, turn off the AC power of the LED fixture for more than 10 seconds, then power on the LED lamp,
and quickly press 3 times one of the digital keys of the RC continuously within 3 seconds. (if the lamp has
already been paired with button1, you need to press other buttons than button1), you will see the LED light
flashes 6 times, indicating the LED lamp has been cleared successfully.

Group Lamps and a single lamp control functions
   A single lamp control: If the lamp has been paired with button2, press button2 to Switch on and off the lamp;
Groups controlled: Use button ON and OFF to control the whole group LED lamps.

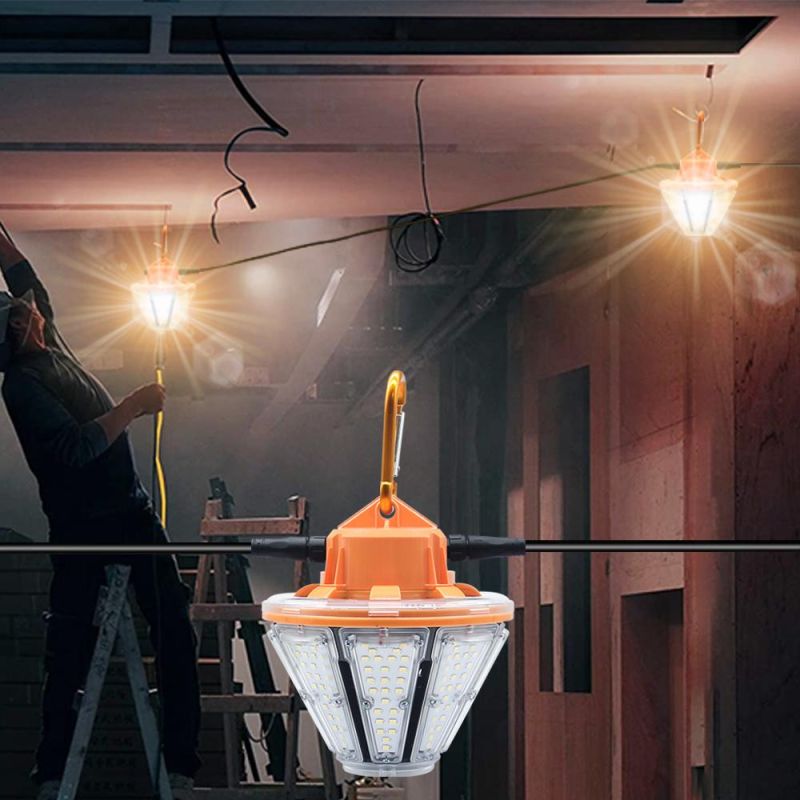

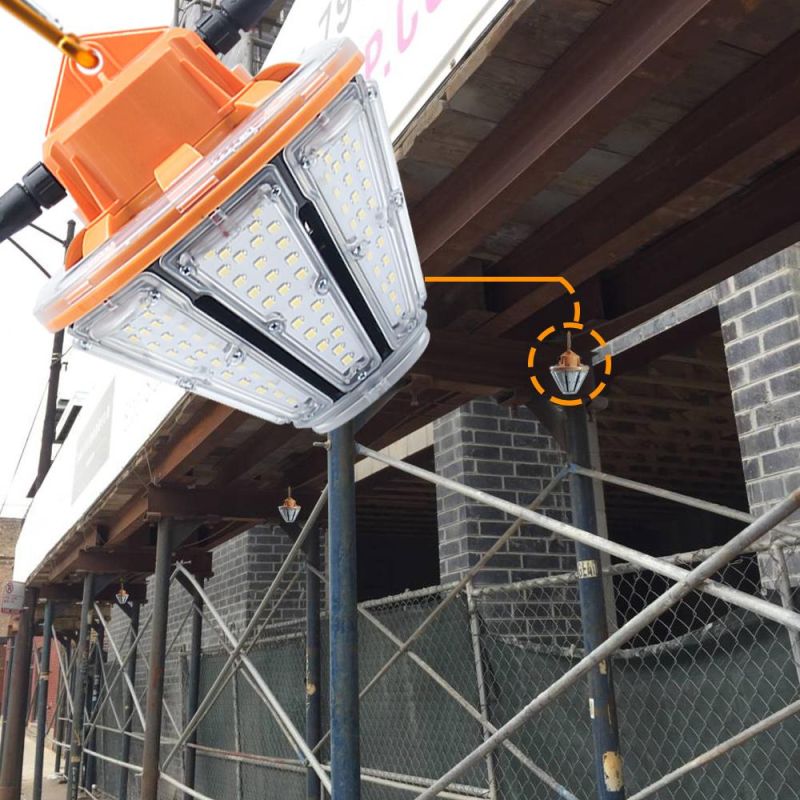

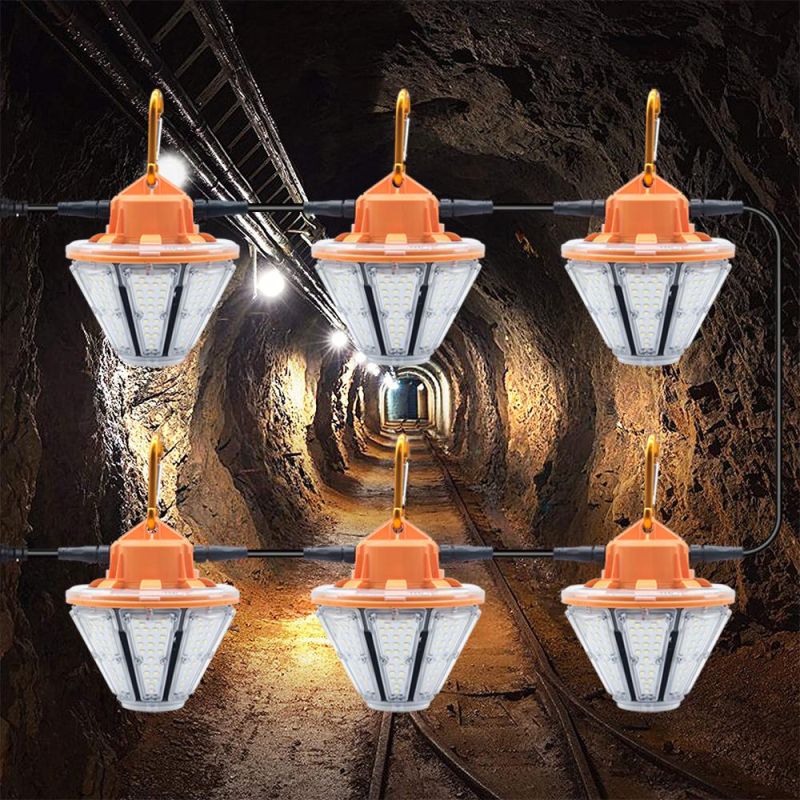

Application:

Packaging & Shipping
1. Packing method
    Carton qty:  12pcs/carton
    Carton size: 52.5*45.5*47cm
    Carton weight: 15.5KG/CTN

2. Shipping service
Delivery time: within 5 days
DHL/TNT/FedEx are all available
60W LED Temporary Work Light with Socket Plug and Play Linkable

Company information
New Sunshine Lighting Inc. based in Los Angeles of USA.
Our factory is based in Shenzhen & Dongguan province of China.
Our products cover LED corn bulbs, E26/E27&E39/E40 base retrofit kits, smart LED lighting, street lamp
All products comply with the requirements of ISO 9001:2008, and passed European certificates of CE, ROHS, TUV and VDE, also American certificates of UL, ETL&DLC.
60W LED Temporary Work Light with Socket Plug and Play Linkable
