• Model NO.：ATA-1000WB
• Warranty：3 Years
• Housing Material：Aluminum
• Life：50000h
• LED Chips：Epiled
• Certification：CE, RoHS, UL, CCC, GS, CSA, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
• LED Type：3W,LED 3030 LED
• LED Quantity：130PCS*10*3=3900W
• Actual Power：600W
• Ppf：1586umol,S
• Efficiency：2.4umol,S
• Cooling Methods：Passive Cooling or Water Cooling
• Beam Angle：140
• Work Environment：-20+40
• Working Humidity：10%-95%Rh
• Heat Output：1120BTU,H
• Transport Package：Pearl Foam Inner Box and K=K
• Specification：1022*1015*95mm
• Trademark：ATA
• Origin：China
• HS Code：9405409000
• Production Capacity：300, 000,Pieces,Month

Product Size  (L x W x H)1022*1015*95mm1022*1015*95mm1022*1015*95mm40.24*39.96*3.74inch40.24*39.96*3.74inch40.24*39.96*3.74inchMaterial Aluminum Alloy Aluminum Alloy Aluminum Alloy Power Consumption 545W±5%545W±5%545W±5%Led Type 3W /LED     3030 LED3W /LED     3030 LED1W /LED  5730 LEDLed Quantity 130PCS*10*3=3900W130PCS*10*3-3900W130PCS*10=1300WBeam Angle  without lens120° with lens90°  without lens120°Input Voltage 100-277Vac 50/60Hz100-277Vac 50/60Hz100-277Vac 50/60HzWork Environment -20°~40°C/-4°~104°F-20°~40°C/-4°~104°F-20°~40°C/-4°~104°FNet Weight 18.7KG18.7KG18.7KG41.24lbs41.24lbs41.24lbsPF0.90.90.9Heat dissipation modeNatural coolingNatural coolingNatural coolingLight decay <15% In three years<15% In three years<20% In Two yearsIP rating IP65IP65IP65Working Humidity 10%-95%RH10%-95%RH10%-95%RHPPF     µmol/s1586umol/s1586umol/s1586umol/sHeat Output 1120BTU/H1120BTU/H1120BTU/HLighting area 1M High  6.0M²1M High  6.0M²1M High  6.0M²Warranty Three yearsThree yearsTwo years
PPFD





Spectrum





Product Dimension





Installation: Suspending

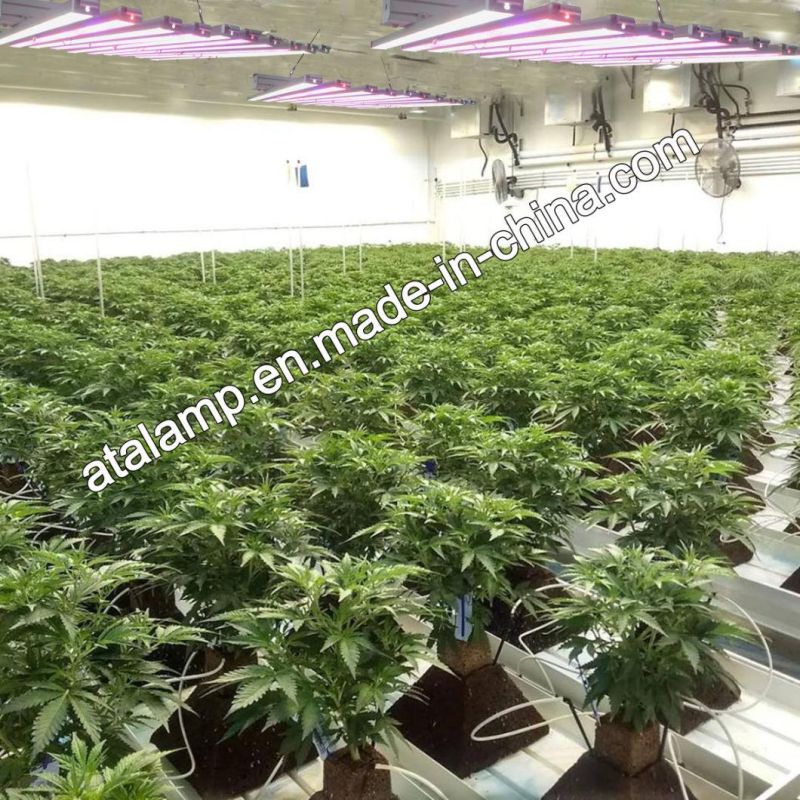

Application
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.





User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
