• Model NO.：PCB
• Voltage：12V
• Voltage Type：DC
• LED Type：SMD 2835
• Certification：CREE, CE, C-tick, EMC, Energy Star, FCC, GOST, GS, LVD, REACH, RoHS, UL, VDE
• PCB Layer：1-26 Layers
• SMT Line Quantity: ：30
• Solder Mask：Any
• Silk Screen：Any
• Surface Treatment：HASL
• PCB Assembly Type：SMT and DIP
• PCB Service：One Stop Service
• Small Orders：1 PCS Is Ok
• Copper Thickness：1oz
• Board Thickness：1.6mm
• Board Dimensions: Smallest Size：50*50mm
• BGA-Min Pitch：0.25mm
• Testing Procedures：Visual Inspection ; X-ray Inspection ;Aoi (Automat
• Board Shape：Rectangular ; Round ;Slots and Cut Outs; Complex a
• Lead Time：12-20 Days
• Transport Package：Vacuum+Carton Packing
• Specification：RoHS, ISO9001, UL, SGS
• Trademark：Fastline
• Origin：Shenzhen, China
• HS Code：8534009000
• Production Capacity：20000 Square Meter,Mon

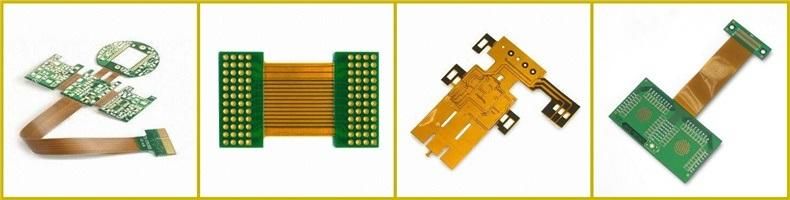

Fastline Circuits Co., LimitedFPC Technology and CapabilitiesMaterialFR4, Polyimide / PolyesterCountsFlex: 1~10L; Rigid-Flex: 2~8LBoard ThicknessMin.0.05mm;  Max. 0.3mmCopper Thickness1/3 oz --- 2 ozCNC Drill Size (Max)6.5mmCNC Drill Size (Min)Flex: 0.15mmHoles Location Tolerance±0.05mmCoverlay Drill Size (Min)0.6mmHole to Coverlay Opening Windows (Min)0.15mmMin Line Width / Spacing0.1/0.1mmCopper Thickness on Hole WallFlex:12-22μmMin Pad Sizeφ0.2mmEtch ToleranceFinished line width tolerance ±20%Pattern Registration Tolerance±0.1mm (Working Panel Size: 250*300mm)Coverlay Registration Tolerance±0.15mmSolder Mask Registration Tolerance±0.2mmSolder Mask to PADNon photosensitive: 0.2mmPhotosensitive: 0.1mmMin. Solder Mask Dam0.1mmMisregistration Tolerance±0.30mm for Stiffener, Adhesive, Glue paperSurface FinishPlating Ni / Au ; Chemical Ni / Au ; OSP
Note: Base on all data received by us and must be complete and problem-free, Lead time is ready to ship time.

PCBA Technology:

1)Professional Surface-mounting and Through-hole soldering Technology.
2)Various sizes like 1206,0805,0603,0201, 1005 components SMT technology.
3) ICT(In-Circuit Test), FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL, CE, FCC, RoHS Approval.
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line.
7) High density interconnected board placement technology capacity.

Types of Assembly: THD (Thru-Hole Device); SMT (Surface-Mount Technology) ; SMT & THD mixed; 2 sided SMT and THD assembly

SMT Line Quantity: 30

SMT Min Pitch-QFP: 0.3mm

BGA-Min Pitch: 0.25mm

Component Package: Reels; Cut tape; Tube and tray; Loose parts and bulk

Board dimensions: Smallest size: 50*50mm ; Largest size: 520*420mm

Board shape: Rectangular; Round; Slots and Cutouts; Complex and Irregular

Board type: Rigid FR-4 ; Rigid-Flex boards ; Aluminum PCB

Assembly process: Lead-Free (RoHS)

Design file format: Gerber RS-274X ; BOM (Bill of Materials) (.xls, .csv, . xlsx)

Testing Procedures: Visual inspection; X-ray Inspection; AOI (Automated Optical Inspection); ICT (In-Circuit Test); Functional testing

Turnaround time: 1-5 workdays for only PCB assembly; 10-16 workdays for full turn-key PCB assembly.
