LED Light Atex Standard Explosion Proof LED Lighting Fixture 100W 240VAC 50/60Hz 4000K 9500lm IP65 Outdoor Lights Rate Zone 1 Zone 21 and Zone 2 Zone 22 with UL

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Lamp Body Material：Aluminum Alloy
  • IP Rating：IP65
  • Base Type：LED Engine
  • Irradiated Area：≥30m²
  • Input Voltage：220v
  • Power：60-100w

Base Info

  • Model NO.：LCD-GB-XXX
  • Color Temperature：3000K 4000K 6500K
  • Emitting Color：Warm White, , Neutral White, Cool White
  • LED Chips Brand：Osram
  • Certification：CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL
  • Transport Package：Carton Box
  • Specification：330x255x166mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

Electrical parametersProduct typeRated input voltageRated input currentVoltage frequencyRated powerLED input currentPFTHDLCD-DGS8610-60-LNXXX90~264VAC1~0.2150/60Hz60W600mA>0.95<15%LCD-DGS8610-70-LNXXX90~264VAC1~0.3250/60Hz70W600mA>0.95<15%LCD-DGS8610-80-LNXXX90~264VAC1.1~0.3750/60Hz80W600mA>0.95<15%LCD-DGS8610-90-LNXXX90~264VAC1.4~0.4550/60Hz90W600mA>0.95<15%LCD-DGS8610-100-LNXXX90~264VAC1.65~0.550/60Hz100W600mA>0.95<15%
Photometric parametersOptical dataProduct typeColor temp.CRICCT(K)luminous flux(lm)Beam angle(°)LCD-DGS8610-60-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K5700130°LCD-DGS8610-70-LNXXXwarm / Neutral / cool 83/80/723000k / 4000K / 6500K6650130°LCD-DGS8610-80-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K7600130°LCD-DGS8610-90-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K8550130°LCD-DGS8610-100-LNXXXwarm / Neutral  / cool 83/80/723000k / 4000K / 6500K9500130°General information Product typeSize (mm)Weight(kg)Ambient temp.(ºC)Max.surface temp.      ( test in 25ºC)Temp.classificationIP codeInsulationIK codeLCD-DGS8610-60-LNXXX¢278x210mm8KG- 30ºC~+ 50ºC43T5IP65IIK08LCD-DGS8610-70-LNXXX¢278x210mm8KG- 30ºC~+ 50ºC44T5IP65IIK08LCD-DGS8610-80-LNXXX¢278x210mm8KG- 30ºC~+ 50ºC46T5IP65IIK08LCD-DGS8610-90-LNXXX¢278x210mm8KG- 30ºC~+ 50ºC47T5IP65IIK08LCD-DGS8610-100-LNXXX¢278x210mm8KG- 30ºC~+ 50ºC47T5IP65IIK08

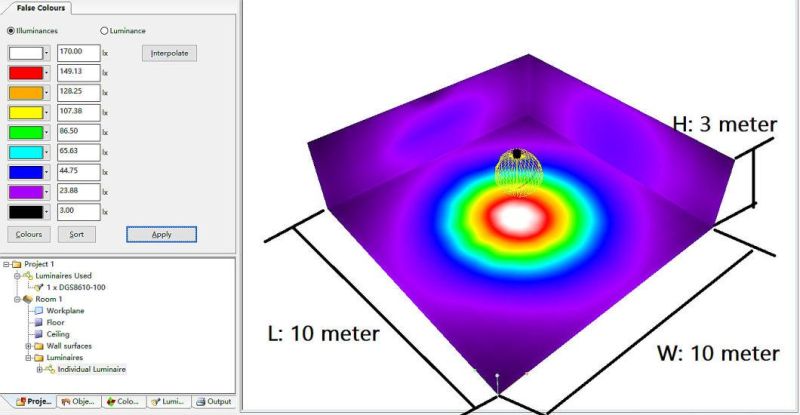

Lighting distribution
LED Light Atex Standard Explosion Proof LED Lighting Fixture 100W 240VAC 50/60Hz 4000K 9500lm IP65 Outdoor Lights Rate Zone 1 Zone 21 and Zone 2 Zone 22 with UL
Products Dimension
LED Light Atex Standard Explosion Proof LED Lighting Fixture 100W 240VAC 50/60Hz 4000K 9500lm IP65 Outdoor Lights Rate Zone 1 Zone 21 and Zone 2 Zone 22 with UL

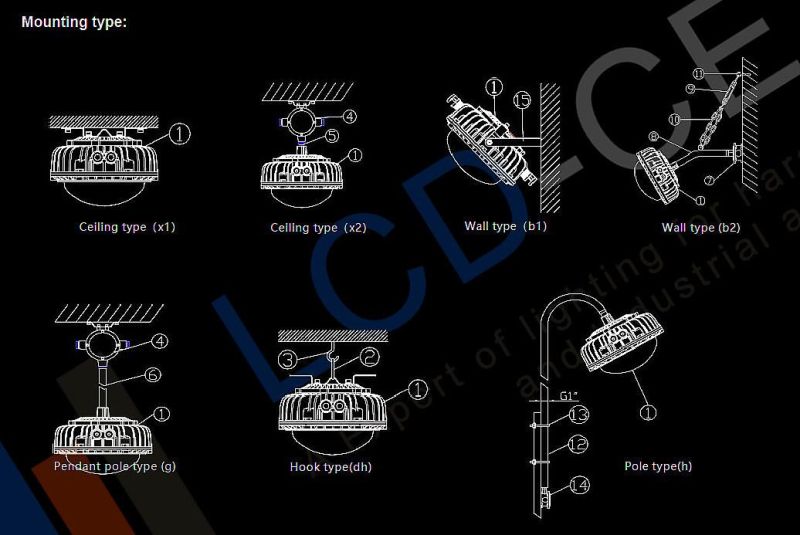

INSTALLATION METHOD
LED Light Atex Standard Explosion Proof LED Lighting Fixture 100W 240VAC 50/60Hz 4000K 9500lm IP65 Outdoor Lights Rate Zone 1 Zone 21 and Zone 2 Zone 22 with UL
LED Light Atex Standard Explosion Proof LED Lighting Fixture 100W 240VAC 50/60Hz 4000K 9500lm IP65 Outdoor Lights Rate Zone 1 Zone 21 and Zone 2 Zone 22 with UL
