• Model NO.：NM2W2835-048B
• LED Chips：Epistar, CREE, Osram, Luminiled, Samsung, Sanan
• Beam Angle：160
• Wire Length：75mm
• Driver Way：Constant Current , Constant Voltage
• Warranty：5 Years
• Applications：LED Module for Light Box, Sign Box, Channel Letter
• Transport Package：50PCS,Chain LED Module
• Specification：40 x 15 mm
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：600, 000,Month

Basic Info.

Model NO. NM2W2835-048B LED Chips Epistar, CREE, Osram, Luminiled, Samsung, Sanan Beam Angle 160 Wire Length 75mm Driver Way Constant Current / Constant Voltage Warranty 5 Years Applications LED Module for Light Box, Sign Box, Channel Letter Transport Package 50PCS/Chain LED Module Specification 40 x 15 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

Hot Selling 2 SMD 2835 optical module or led module  for over 3-10CM signs

Features

1. Constant Current Technology (CCT),50pcs per series2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.

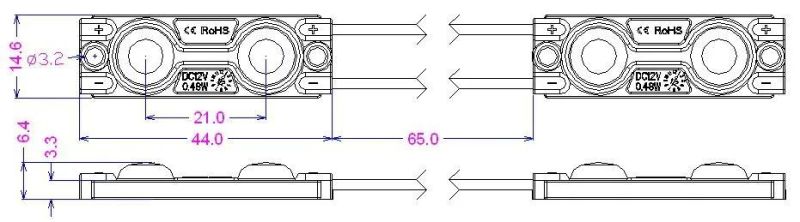

Dimensions



Note: The cable between modules can be customized within a certain range.

Technical parameters


Part no.	Color	Wave Length  Or CCT	Operating Voltage	Rated Power per module	Beam  Angle	Lm Flux  per module	IP Rank
NM2W2835-048B	Pure white	6000-7500K	DC12V	0.48W	160°	46lm	IP67
NM2C2835-048B	Cool white	9000-16000K	DC12V	0.48W	160°	46lm	IP67
NM2M2835-048B	Warm white	2700-3200K	DC12V	0.48W	160°	46lm	IP67

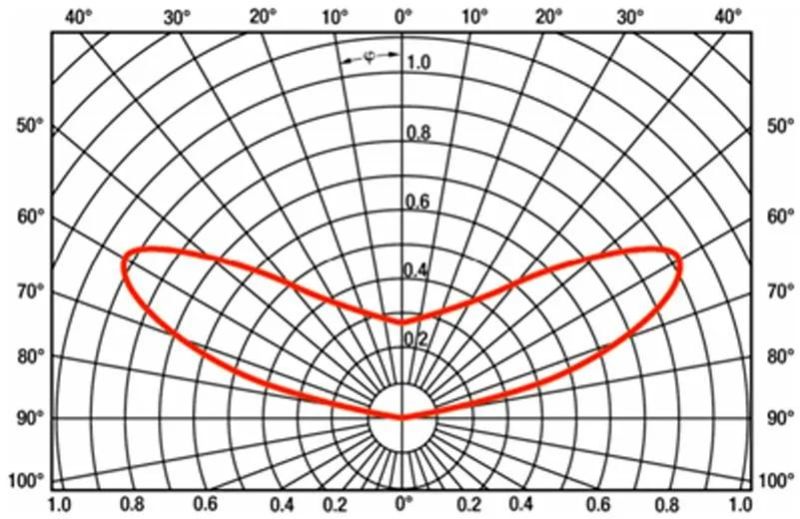

Led module light distribution graph

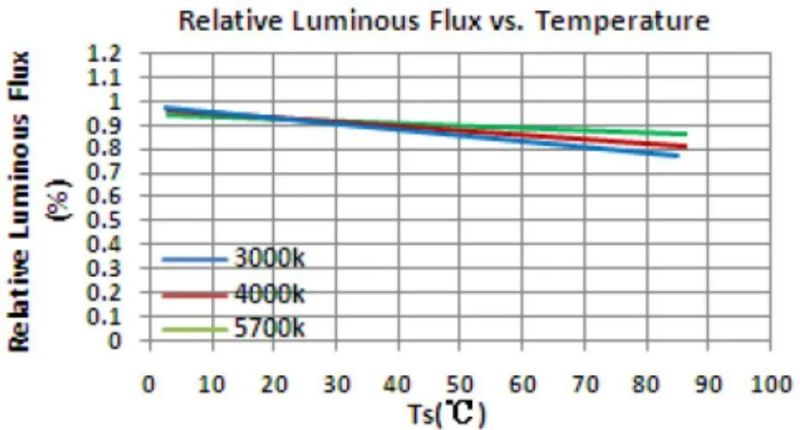

Temperature and luminous flux




Attention

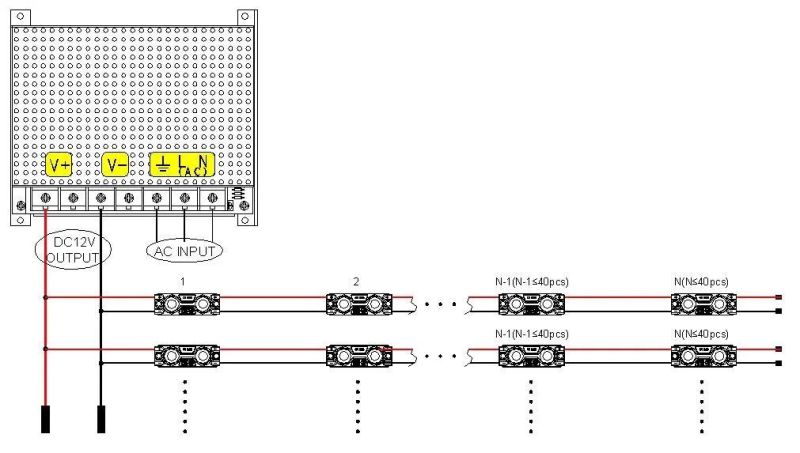

1. Max. number of modules of one chain is 50pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally

additionally.


 Packing
 1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:300x280x0.12mm.
2. 40pcs per chain,4pcs chain in one Anti-static bag . (160 pcs in one Anti-static bag).3. 10 bags in one small carton . ( 1600 pcs in one small carton).4. One outal carton contains two small cartons (3200 pcs in one outal carton).

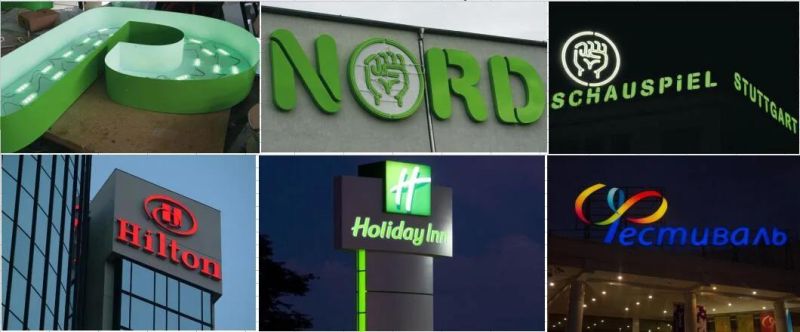

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting




Company Profile :

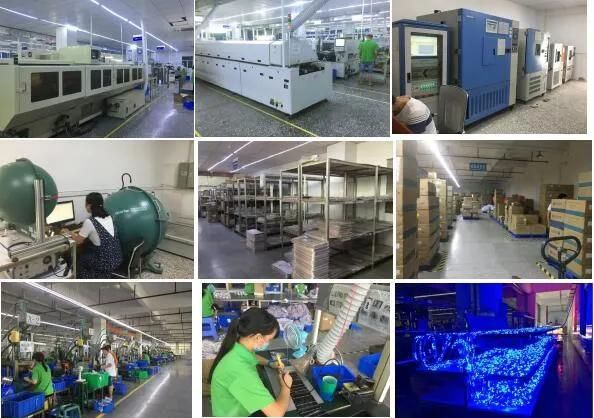

MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products,  and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different  length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
