• Model NO.：PARZOOM 740FIP
• Shell Material：Aluminium Alloy
• Certification：CE, RoHS, EMC
• Application：Stage, Swimming Pool, Fountain, Theme Park, Wedding Party
• Exterior Finish：Black
• Power Consumption：280W
• Transport Package：Carton , Flight Case
• Specification：343(D)*235(W)*200(H)mm
• Trademark：Color-imagination
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. PARZOOM 740FIP Shell Material Aluminium Alloy Certification CE, RoHS, EMC Application Stage, Swimming Pool, Fountain, Theme Park, Wedding Party Exterior Finish Black Power Consumption 280W Transport Package Carton / Flight Case Specification 343(D)*235(W)*200(H)mm Trademark Color-imagination Origin China Production Capacity 50000PCS/Year

Product Description

• Light Source

  Source: 7*40W 4-IN-1 LED, RGBW
  Flicker free operation for broadcast TV and FILM
  Life Span: 50000H
  The life span may vary depending on several following factors but not limited to:
  Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)



  Optics

  High efficiency optic system
  8°-60°Motorized linear zoom
  High output



  Color System

  RGBW
  Smooth and pure color mixing capability



  Strobe Effect

  0-25Hz LED shutter/strobe effect with
  variable speed



  Dimming System

  0-100% Smooth linear LED dimming



  Control System

  5/9 DMX channels USITT DMX-512
  DMX512, master-slave, sound or auto operation
  RDM available (Remote Device Management)
  Multi built-in default programs
  Shielded input signal protection for stable signal without interference
  IP65 3-Pin XLR Connectors IN/OUT





• Display System

  LCD display
  4 Control buttons
  Display auto OFF



  Cooling System

  Advanced cooling system integrated aluminum
  Over temperature protection



  Power Supply

  Electronic supply with active PFC
  AC100-240V 50/60Hz
  IP65 PowerCON connectors IN/OUT
  280W Power consumption



  Housing

  Aluminum die-casting structure
  Exterior finish: Black



  Installation

  1*Safety attachment point



  Operating Condition

  Operating positions: all (device on floor or fixed to a support)
  -25ºC to 45ºC ambient temperature
  IP65 protection rating



  Compliance

  CE
  2014/35/EU - Safety of electrical equipment
  supplied at low voltage (L VD)
  2014/30/EU - Electromagnetic Compatibility
  (EMC)
  2011/65/EU - Restriction of the use of certain
  hazardous substances (RoHS)



  Weight

  N.W.: 7.5kg
  G.W.: 8.3kg

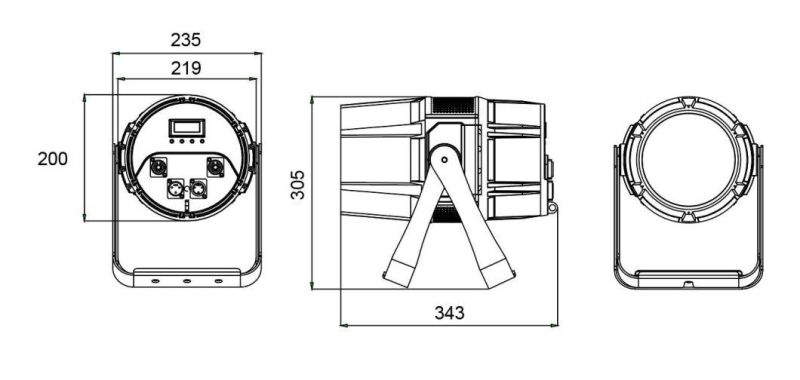

  Dimensions

  Product Dimensions: 343(D)*235(W)*200(H)mm
  Packing Dimensions: 270(D)*270(W)*530(H)mm
