• Model NO.：PL-IP65-1200-20w-005
• Color Temperature：Pure White
• Emitting Color：White
• LED Chips Brand：Epistar
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Transport Package：Export Standard Cartons
• Specification：1200*26cm
• Trademark：PEONYLIGHTING
• Origin：China
• HS Code：940510000
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. PL-IP65-1200-20w-005 Color Temperature Pure White Emitting Color White LED Chips Brand Epistar Certification CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE Transport Package Export Standard Cartons Specification 1200*26cm Trademark PEONYLIGHTING Origin China HS Code 940510000 Production Capacity 500000PCS/Year

Product Description

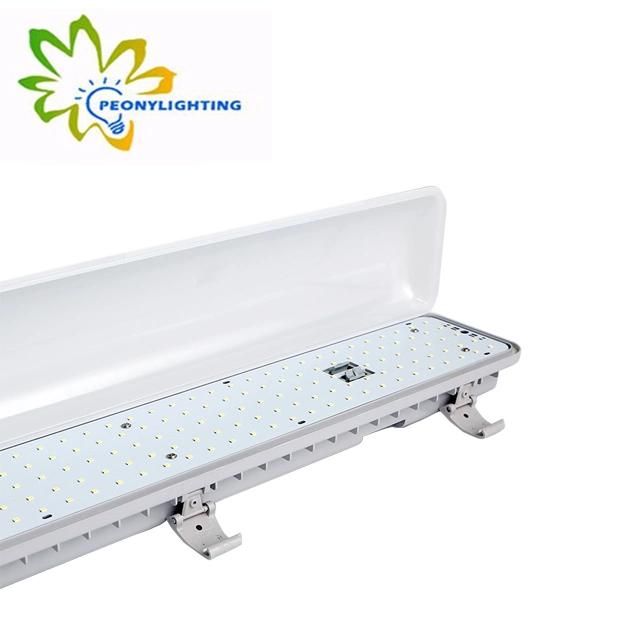

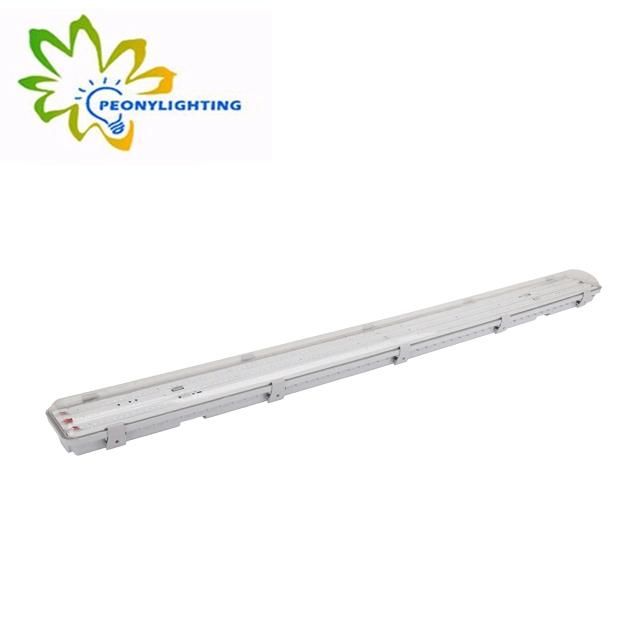

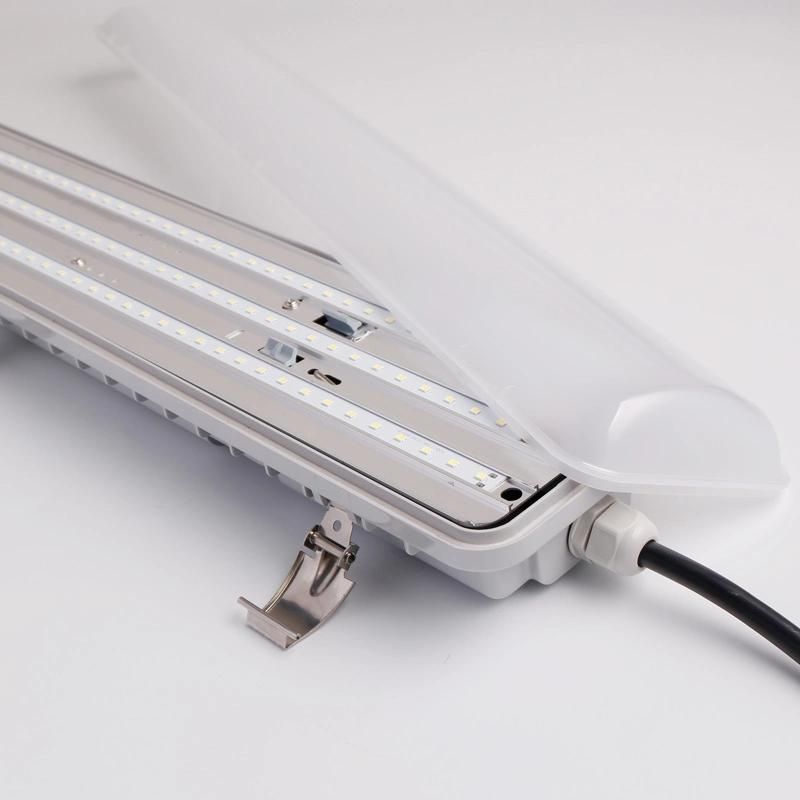

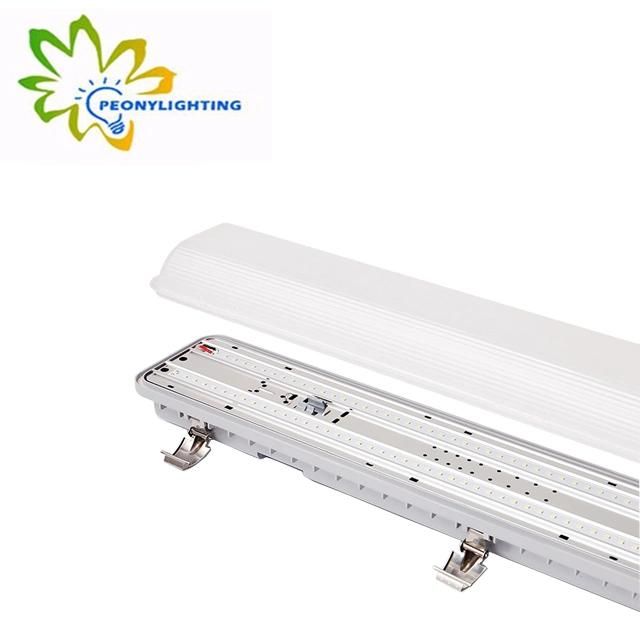

2019 IP65 1200mm 20W led tri-proof light with 5 years warranty

Features:
1.Usage imported chips 3030smd as the source of light, with a unique lighting design made of multiple
chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.
2.Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.
3.Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.
4.Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.
5.High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.
6.Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.
7.Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.

Production Introduction:
High power LED Flood Light a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value



Datesheet

Model	Power (W)	CCT	Luminous (LM)	Ra	Chip	Voltage	Beam Angle	Material	LAMPSize(mm)	Package	PF
PL-IP65-600-20w-005	20W	2700K 3000K 4000k 6000k	2000~2400 LM	80	120pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	662*86*80	Carton Size: 720*275*200mm 6pcs/ctn N.W.: 5.10 kgs/ctn G.W.: 6.5 kgs/ctn	>0.95
PL-IP65-1200-20w-005	20W	2700K 3000K 4000k 6000k	2000~2400 LM	80	120pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	1265*86*80	Carton Size: 1330*275*200mm,  6pcs/ctn N.W.: 8.58 kgs/ctn G.W.: 11.00kgs/ctn	>0.95
PL-IP65-1200-30w-005	30W	2700K 3000K 4000k 6000k	3000~3600 LM	80	240pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	1265*86*80	Carton Size: 1330*275*200mm,  6pcs/ctn N.W.: 8.58 kgs/ctn G.W.: 11.00kgs/ctn	>0.95
PL-IP65-1200-40w-005	40W	2700K 3000K 4000k 6000k	4000~4400 LM	80	180pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	1565*86*80	Carton Size: 1630*275*200mm 6pcs/ctn N.W.: 10.20 kgs/ctn G.W.: 14.5 kgs/ctn	>0.95
PL-IP65-1500-50w-005	50W	2700K 3000K 4000k 6000k	5000~5500 LM	80	360pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	1565*86*80	Carton Size: 1630*275*200mm 6pcs/ctn N.W.: 10.20 kgs/ctn G.W.: 14.5 kgs/ctn	>0.95
PL-IP65-1500-60w-005	60W	2700K 3000K 4000k 6000k	6000~6600 LM	80	360pcs 2835smd	Lifud drfiver AC200~240	180°	PC+Diffuser	1565*86*80	Carton Size: 1630*275*200mm 6pcs/ctn N.W.: 10.20 kgs/ctn G.W.: 14.5 kgs/ctn	>0.95

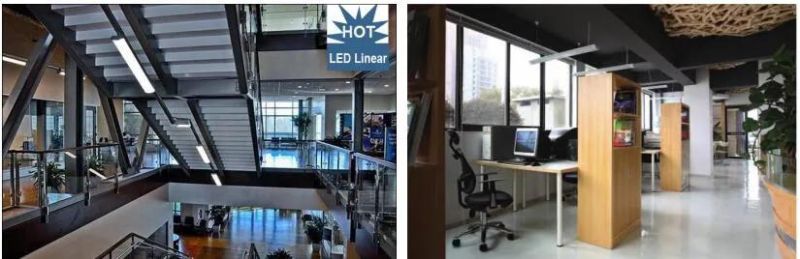

Apply to gas-station , toll station, production workshop, warehouse, sidewalk, public areas such as school, residential, industrial park lighting.Application:

Workshop



FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
