• Model NO.：SD2X2835-096B
• LED Light Source：2835SMD LED Module
• Beam Angle：160
• Wire Length：150mm
• Driver Way：Constant Current
• Warranty：5 Years
• Transport Package：1 Chains(40 Module) Low Volume Electrostatic Bag
• Specification：48 x 18 mm
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：600, 000,Month

Basic Info.

Model NO. SD2X2835-096B LED Light Source 2835SMD LED Module Beam Angle 160 Wire Length 150mm Driver Way Constant Current Warranty 5 Years Transport Package 1 Chains(40 Module) Low Volume Electrostatic Bag Specification 48 x 18 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

2LED 2835 LED Injection High Lumen Sign Module for Channel Letter

Features

1. Constant Current Technology (CCT),40pcs per series2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.

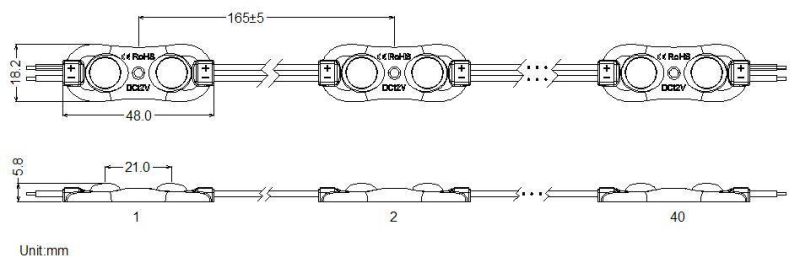

Dimensions



Note: The cable between modules can be customized within a certain range

Technical parameters


Part no.	Color	Wave Length  Or CCT	Operating Voltage	Rated Power per module	Beam  Angle	Lm Flux  per module	IP Rank
SD2W2835-096B	Pure white	6000-7500K	DC12V	0.96W	160°	90lm	IP67
SD2C2835-096B	Cool white	9000-16000K	DC12V	0.96W	160°	90lm	IP67
SD2C2835-096B	Warm white	2700-3200K	DC12V	0.96W	160°	90lm	IP67

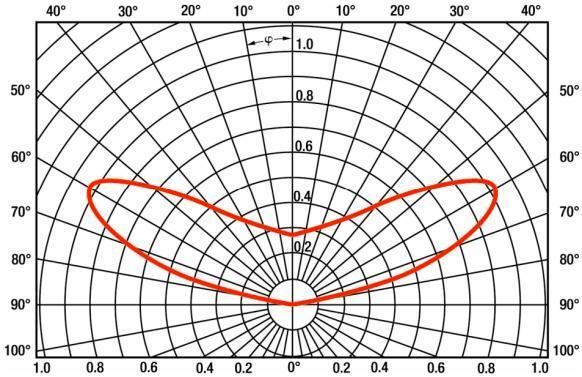

Led module light distribution graph




Attention

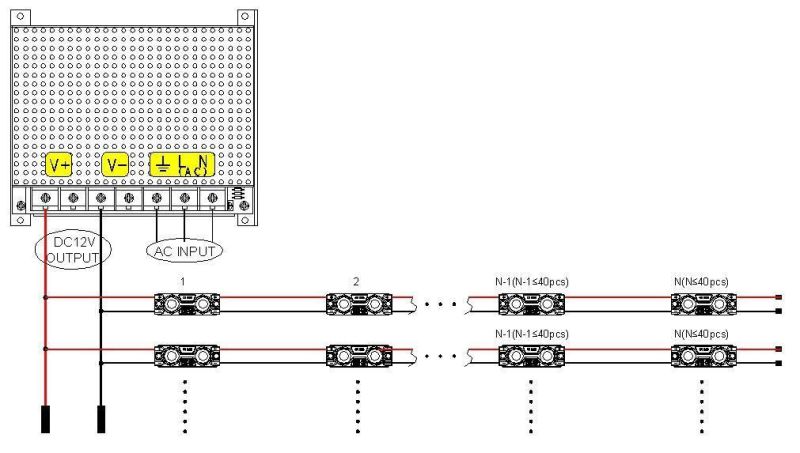

1. Max. number of modules of one chain is 40pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

Packing
 1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.2. 40pcs per chain,4pcs chain in one Anti-static bag . (160 pcs in one Anti-static bag).3. 8 bags in one small carton . ( 1280 pcs in one small carton).4. One outal carton contains two small cartons (2560 pcs in one outal carton).

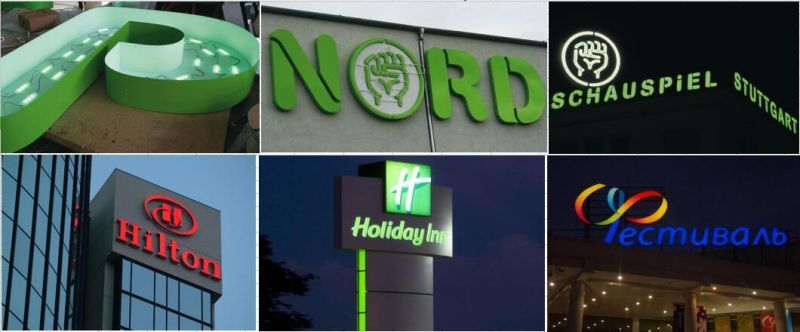

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting

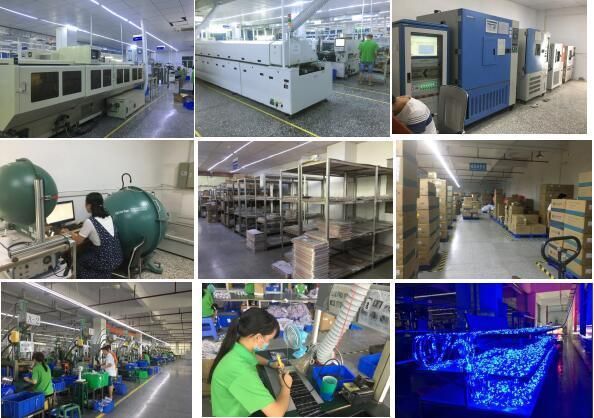

Company Profile :
