• Model NO.：NM3W2835-090B
• Power：0.9W
• Beam Angle：160
• Wire Length：160mm
• Driver Way：Constant Current
• Warranty：5 Years
• Transport Package：1 Chains(40 Module) Low Volume Electrostatic Bag
• Specification：64 x 15 mm
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：600, 000,Month

Basic Info.

Model NO. NM3W2835-090B Power 0.9W Beam Angle 160 Wire Length 160mm Driver Way Constant Current Warranty 5 Years Transport Package 1 Chains(40 Module) Low Volume Electrostatic Bag Specification 64 x 15 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

Three SMD 2835 signage led module for over 8-25CM signs

Features

1. Constant Current Technology (CCT),40pcs per series
2. The exposed Aluminum plate for heat dissipation
3. Injection molding process,Waterproof: IP 67
4. Bigger chip,10% brighter than before
5. Energy saving,Environment friendly
6. Long life span
7. Suitable for channel letters and light boxes back lighting etc.

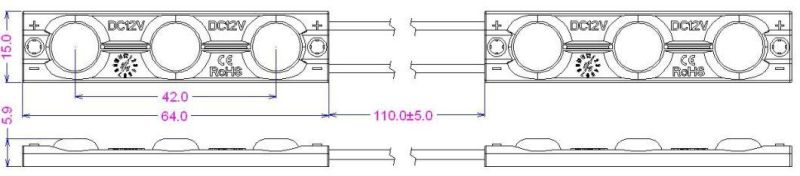

Dimensions




Technical parameters


Part no.	Color	Wave Length  Or CCT	Operating Voltage	Rated Power per module	Beam  Angle	Lm Flux  per module	IP Rank
NM3W2835-090B	Pure white	6000-7500K	DC12V	0.9W	160°	78lm	IP67
NM3C2835-090B	Cool white	9000-16000K	DC12V	0.9W	160°	78lm	IP67
NM3M2835-090B	Warm white	2700-3200K	DC12V	0.9W	160°	78lm	IP67

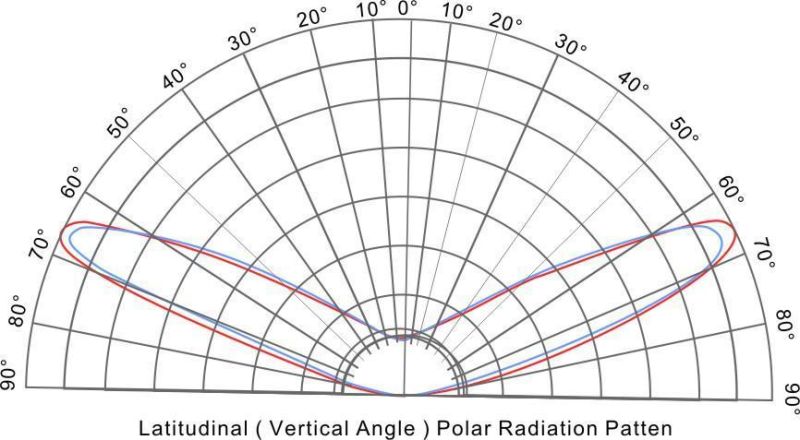

Led module light distribution graph

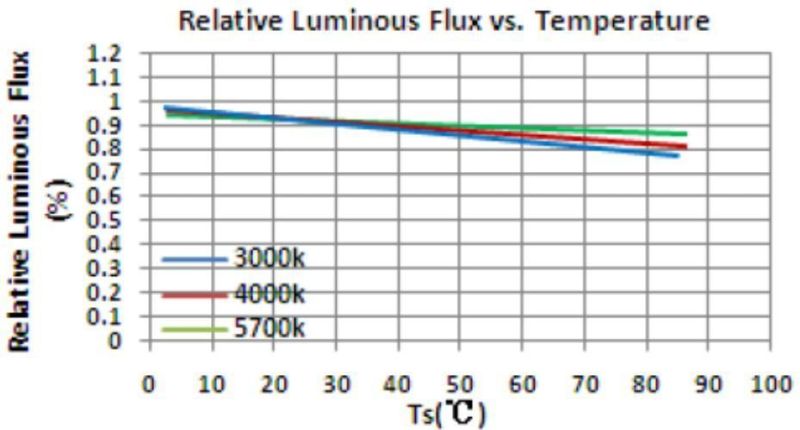

Temperature and luminous flux



Attention

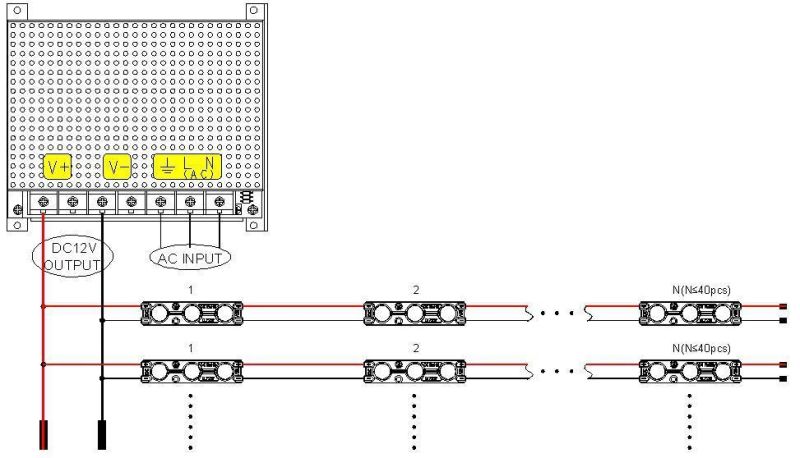

1. Max. number of modules of one chain is 40pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

Packing

1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.
2. 40pcs per chain,3pcs chain in one Anti-static bag . (120 pcs in one Anti-static bag).
3. 7 bags in one small carton . ( 840 pcs in one small carton).
4. One outal carton contains two small cartons (1680 pcs in one outal carton).

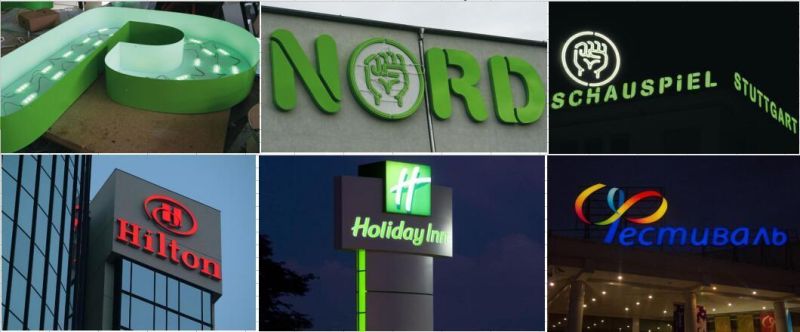

Applications

1. Channel letter lighting
2. Commercial standing lighting
3. Letter background lighting
4. Light box lighting
5. Logo lighting
6. Line/shape lighting

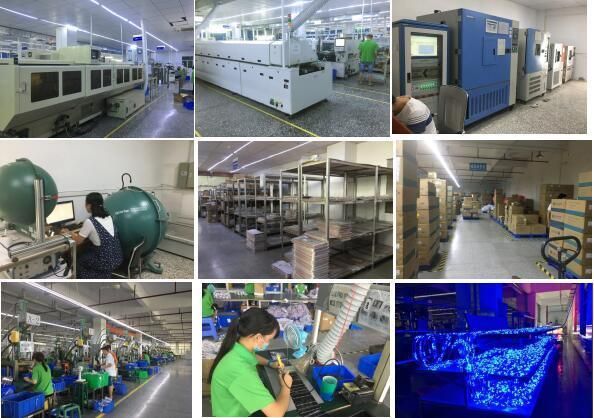

Company Profile :
