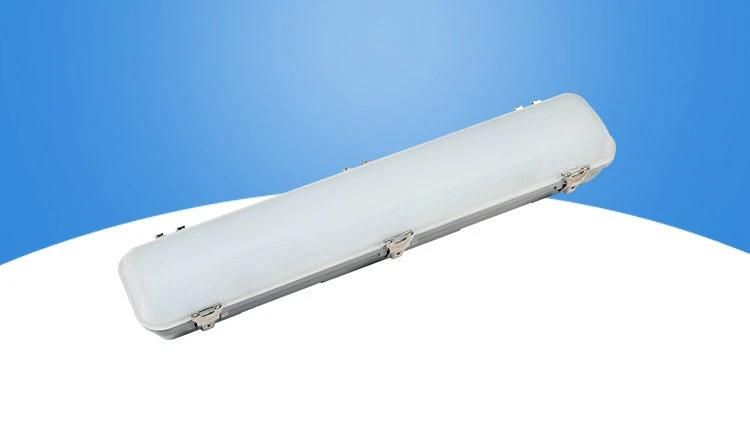

High Corrosion Material GRP Body Waterproof Driver on The Board Dimmable LED Luminaire Light
Cixi Yuanhui Lighting Electric Co., Ltd.- Application：Parking Lot,Market,Tunnel,etc.
- Type：Efficient-Mirror Tri-proof Light
- Feature：Anti-corrosion, Dust-Proof, Waterproof
- Light Body Material：Plastic
- IP：66
- Ik：08
Base Info
- Model NO.：YL16
- Product Size：600,1200,1500*116*100mm
- Voltage：AC220-240V
- Frequency：50,60Hz
- Diffuser：PMMA,PC
- Housing：GRP
- LED Type：SMD 2835 LG
- Beam Angle：120
- CRI：>80
- Power Factor：>0.95
- Ambient：-20 to 35
- Warranty：5-Year
- Power：15W,20W,24W,30W,36W,50W,65W
- Certificated：CE,CB,SAA,ENEC
- Transport Package：Innerbox&Carton
- Specification：600,1200,1500x100x123mm
- Trademark：Default is Yuanhui Can be customized
- Origin：Ningbo, China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. YL16 Product Size 600/1200/1500*116*100mm Voltage AC220-240V Frequency 50/60Hz Diffuser PMMA/PC Housing GRP LED Type SMD 2835 LG Beam Angle 120 CRI >80 Power Factor >0.95 Ambient -20 to 35 Warranty 5-Year Power 15W/20W/24W/30W/36W/50W/65W Certificated CE/CB/SAA/ENEC Transport Package Innerbox&Carton Specification 600/1200/1500x100x123mm Trademark Default is Yuanhui Can be customized Origin Ningbo, China HS Code 9405409000 Production Capacity 10000PCS/MonthProduct Description
| Model No. | Power | Beam Angel(°) | Average ambient temp. | Voltage | Size(mm) |
| YL16GRP-15W-600 | 15W | 120 | 25°C | 220-240V 50/60HZ | 600x100x123mm |
| YL16GRP-24W-600 | 24W | 120 | 25°C | 220-240V 50/60HZ | 600x100x123mm |
| YL16GRP-20W-1200 | 20W | 120 | 25°C | 220-240V 50/60HZ | 1200x100x123mm |
| YL16GRP-36W-1200 | 36W | 120 | 25°C | 220-240V 50/60HZ | 1200x100x123mm |
| YL16GRP-50W-1200 | 50W | 120 | 25°C | 220-240V 50/60HZ | 1200x100x123mm |
| YL16GRP-30W-1500 | 30W | 120 | 25°C | 220-240V 50/60HZ | 1500x100x123mm |
| YL16GRP-50W-1500 | 50W | 120 | 25°C | 220-240V 50/60HZ | 1500x100x123mm |
| YL16GRP-65W-1500 | 65W | 120 | 25°C | 220-240V 50/60HZ | 1500x100x123mm |
