• Model NO.：DY-T5LED24
• Warranty：3 Years
• Certification：UL
• Product Name：Plant Growth Light
• Material：PC
• Color Temperature(CCT)：2700-6500K
• MOQ：500PCS
• PF：0.9
• CRI：Ra>80
• Size：605*330*60mm
• Transport Package：Inner Box and Outside Carton
• Specification：620*410*100mm
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：1000,15 Days

Basic Info.

Model NO. DY-T5LED24 Warranty 3 Years Certification UL Product Name Plant Growth Light Material PC Color Temperature(CCT) 2700-6500K MOQ 500PCS PF 0.9 CRI Ra>80 Size 605*330*60mm Transport Package Inner Box and Outside Carton Specification 620*410*100mm Trademark OEM Origin China HS Code 9405409000 Production Capacity 1000/15 Days

Product Description

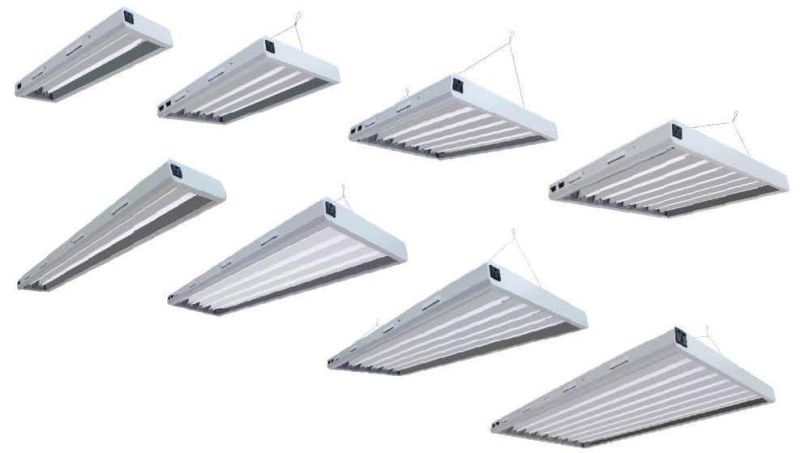

T5 fluorescent grow light system




1.  Overview



T5 Fluorescent Grow Light system delivers performance, flexibility, and high lumen output in any

growing environment.

These T5 fixtures allow you to choose multiple hanging configurations to meet your garden's design.

They combine specular aluminum with energy-efficient/high-output T5 bulbs and

put out double the light energy of normal fluorescent systems.







2. Features



• Variety of sizes to fit many growing needs

• High performance specular aluminum reflectors for highest output

• Low profile

• UL listed for complete light

• Powder coated steel housing

• Hangs 2 ways-- vertical or horizontal for hanging flexibility

• On/off switches on the fixture to regulate light output

• Louvered on sides for cool operation

• 8' grounded power cord

• 5 γears warranty for ballast and fixture







3. Application



• Use with growth chambers and climate controlled growing areas

• Under the bench lighting

• Tissue culture racks

• Limited growing space need





4. Specs



Item	Description	Lumens	AMPS/Watts	Weight	Dimension
DY-FLP22	2ft-2bulb	4000lm	0.46A/48W	2kg	600*195*60mm
DY-FLP24	2ft-4bulb	8000lm	0.95A/96W	3kg	600*330*60mm
DY-FLP26	2ft-6bulb	12000lm	1.20A/144W	5kg	600*465*60mm
DY-FLP28	2ft-8bulb	16000lm	1.60A/192W	6kg	600*605*60mm
DY-FLP42	4ft-2bulb	10000lm	0.90A/108W	4kg	1200*195*60mm
DY-FLP44	4ft-4bulb	20000lm	1.88A/216W	8kg	1200*330*60mm
DY-FLP46	4ft-6bulb	30000lm	2.88A/324W	11kg	1200*465*60mm
DY-FLP48	4ft-8bulb	40000lm	3.75A/432W	12.5kg	1200*605*60mm
DY-FLP412	4ft-12bulb	60000lm	5.40A/648W	18.5kg	1200*1005*60mm

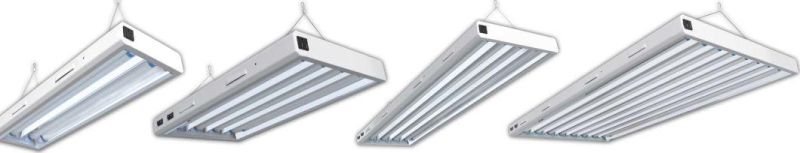

T5 LED Fixture



1. Product Highlights



• Cool-running operation.

• Hanging cable system.

• Low heat and high lumen output.

• Extremely energy efficient.

• Convenient on/off switch.

• Fully assembled.

• 2 Years Limited Warranty

• 8 ground power cord.





2. Specs



Item Code	Description	Product   Dimension	Net Weight	Box Dimension	Gross Weight	CS/Qty
DY-T5LED/22	T5 2x15W 4000K/6500K	23.3x8x2.3cm	7 lbs	24.5x11x4cm	9 lbs	1
DY-T5LED/24	T5 4x15W 4000K/6500K	23.3x 13.3 x 2.3cm	10 lbs	24.5x16.5x4cm	11 lbs	1
DY-T5LED/28	T5 8x15W 4000K/6500K	23.3x 24.3 x 2.3cm	15 lbs	24.5x27x4cm	16 lbs	1
DY-T5LED/44	T5 4x30W 4000K/6500K	47.3x 13 .3 x 2.3cm	16 lbs	48x16x4cm	17 lbs	1
DY-T5LED/46	T5 6x30W 4000K/6500K	47.3x 18.3x 2.3cm	22 lbs	48x21.5x4cm	23 lbs	1
DY-T5LED/48	T5 8x30W 4000K/6500K	47.3x 24.3 x 2.3cm	27 lbs	48x27x4cm	28 lbs	1
