• Model NO.：KLW6LM
• Battery Type：Lithium Ion
• Certification：CE
• Warranty：1 Year
• Name：Klw6lm LED Mining Lamp
• Brand Name：Gm
• Condition：New
• Transport Package：Cartons
• Specification：CE
• Trademark：GM
• Origin：China
• Production Capacity：10000,Year

Basic Info.

Model NO. KLW6LM Battery Type Lithium Ion Certification CE Warranty 1 Year Name Klw6lm LED Mining Lamp Brand Name Gm Condition New Transport Package Cartons Specification CE Trademark GM Origin China Production Capacity 10000/Year

Product Description

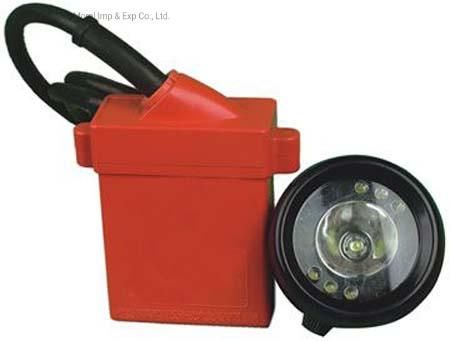

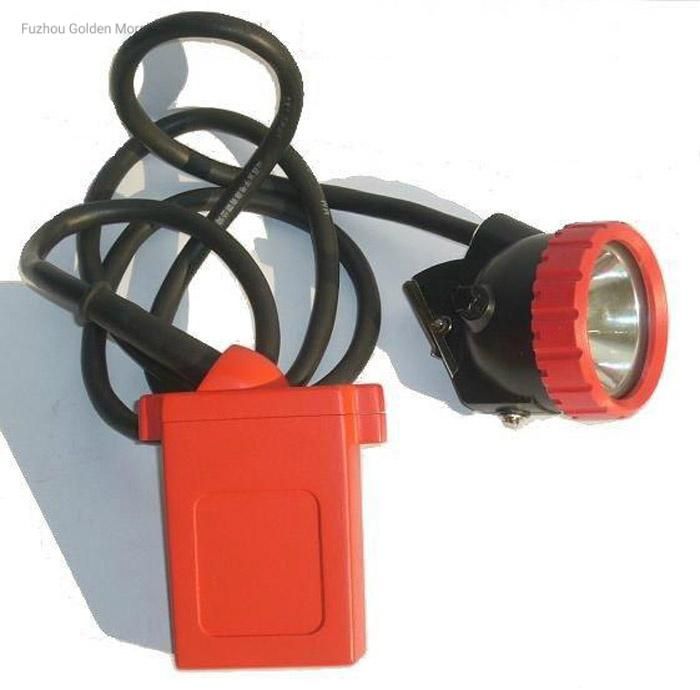

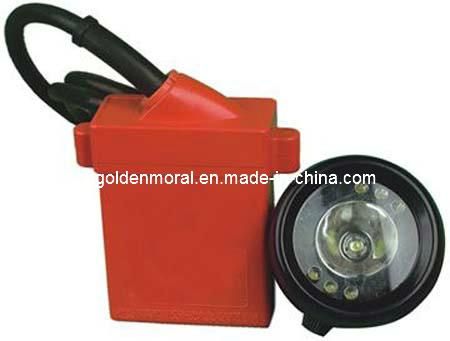

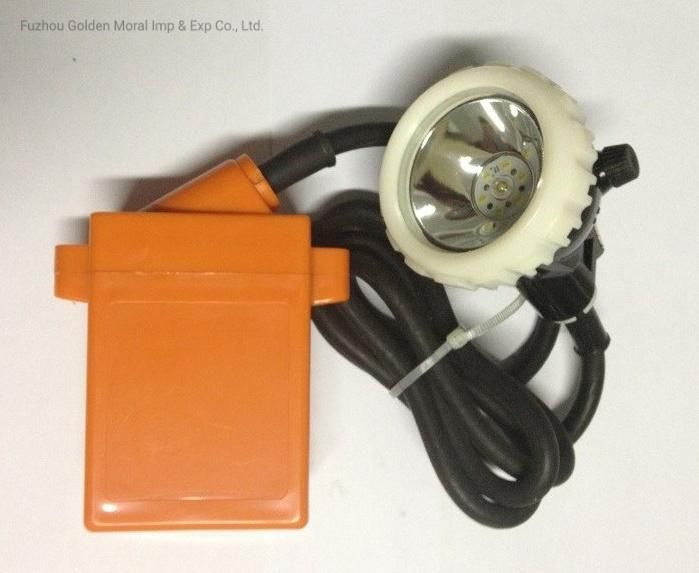

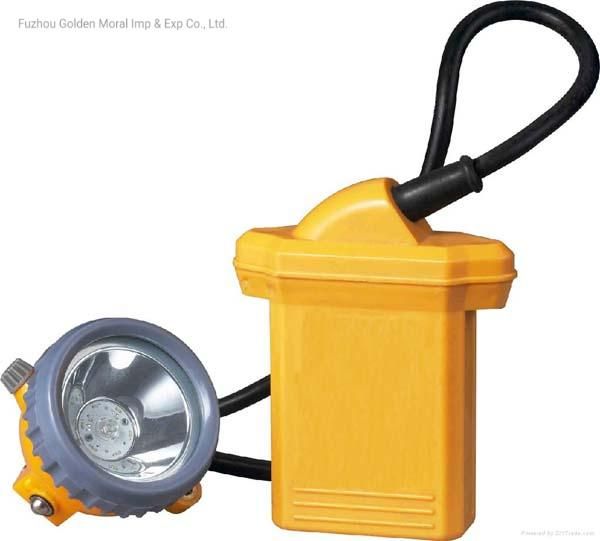

KLW6LM LED mining lamp/OEM /IN FACTORY PRICE
A) SmallLight weightEasy to carry and energy efficientEquipped with specially designed optical system, with primary and secondary pairs of light. When one light source is damaged, the other source can ensure the work in mine and safe evacuation.
B) The produce is portable, made of lamp holder, cable and battery (including lithium battery, security device and the battery slot, etc. ). The lamp is equipped with two light sources, and it can be fixed on mine helmet. The case is made of Bullet-proof ABS Material. Excellent toughness, Anti-static, waterproof, and moisture-proof, .
C) The mines lamp is maintenance-free, no need to replace the light source and add additional acid for the battery. The battery has over-voltage, over-current, over-discharge, over-temperature protection, short circuit protection and other automatic protection function, and use of safe, reliable. The life of LED is long.

NO. Itemparameterunitremark
1Rating voltage3.7V
2Rating capability6Ah
3Lighting duration(main lamp-house)≥ 20HThe real duration is more
4 intensity of illumination(main lamp-house)beginning≥ 3800Lux1 meter from the lamp
After 11 hours≥ 2000
5LED average currentmain lamp-house250MA
Secondary lamp-house110
6Charge protective voltage4.8V
7Discharge protective voltage3.0V
8Battery circular life>1000CIRCLECircular times
9Weight500 g
a) SmallLight weightEasy to carry and energy efficientEquipped
with specially designed optical system,with primary and secondary
pairs of light. When one light source is damaged,the other source
can ensure the work in mine and safe evacuation.
b) The produce is portable, made of lamp holder, cable and
battery (including lithium battery, security device and the
battery slot, etc.). The lamp is equipped with two light sources,
and it can be fixed on mine helmet. The case is made of Bullet-
proof ABS Material.Excellent toughness, Anti-static, waterproof,
and moisture-proof,.
c) The mines lamp is maintenance-free, no need to replace the
light source and add additional acid for the battery. The battery
has over-voltage, over-current, over-discharge, over-temperature
protection, short circuit protection and other automatic
protection function, and use of safe, reliable. The life of LED
is long

KL4.5LM(A)	>5Ah	3.7V	25	≤10(h)	3.3V	300mA	2800Lx	2000Lx	76x31x79	550G
KL4.5LM(B)	>5Ah	3.7V	25	≤10(h)	3.3V	300mA	2800Lx	2000Lx	76x31x79	550G
KL8LM	8Ah	3.65V	12H		4.3V	700mA				880G
KL5LM	5Ah	3.7V	20H		3.3V			8000Lx		500G
