• Model NO.：PAR56SS-252,351,501,558
• Style：Modern Chinese Style
• Base Type：PAR56
• Technics：Drawbench
• Voltage：12V
• Certification：CE
• Bulb Type：PAR56
• Material of The Niche：Stainless Steel+PC
• LED Type：DIP 5mm LED, SMD LED and Power LED
• Warranty：One Year
• Installation Method：Recessed
• Working Life：50,000 Hours
• Transport Package：Neutral Color Box
• Specification：CE
• Trademark：Future Green or OEM
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. PAR56SS-252/351/501/558 Style Modern Chinese Style Base Type PAR56 Technics Drawbench Voltage 12V Certification CE Bulb Type PAR56 Material of The Niche Stainless Steel+PC LED Type DIP 5mm LED, SMD LED and Power LED Warranty One Year Installation Method Recessed Working Life 50,000 Hours Transport Package Neutral Color Box Specification CE Trademark Future Green or OEM Origin Guangdong, China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

Niche fixture details:
Size: 280*160mm
Material: PC+Stainless Steel Cover
The length of the wire: 1 meter
Installing model: Recessed

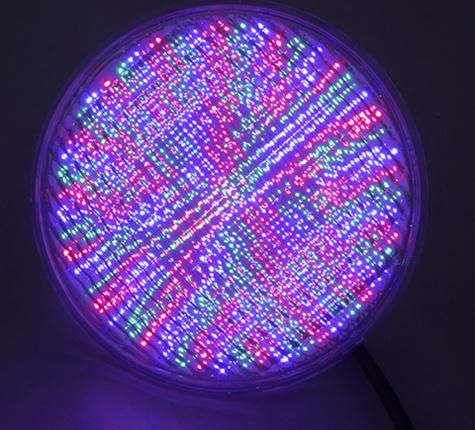

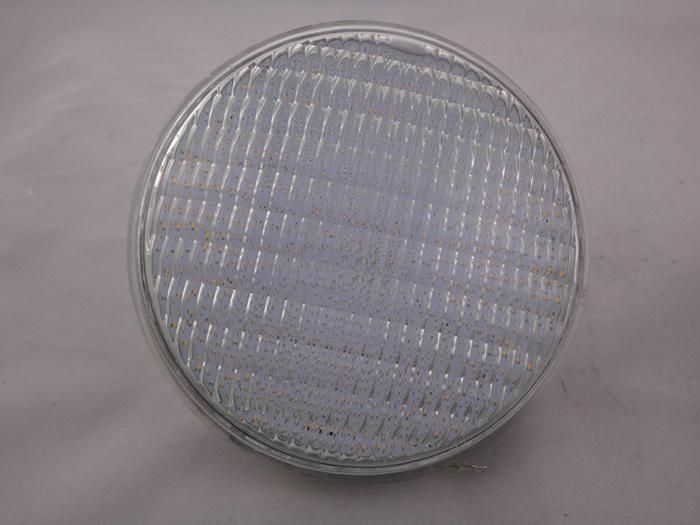

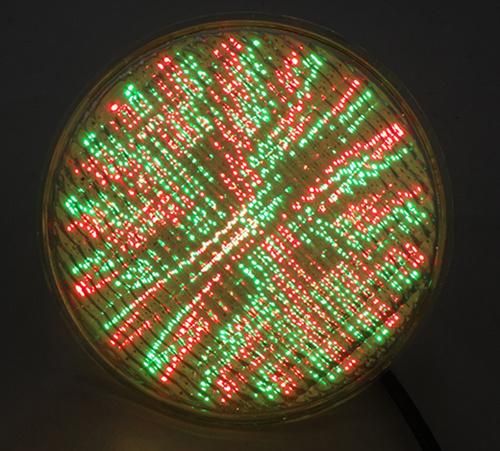

New LED PAR56 light with 3014SMD RGB with Switch on/off controlled

Light source details:
1. Bulb type: PAR56
2. Material: Thick Glass
3. Voltage: AC/DC 12V
4. LED QTY and LED power:
3014SMD LED: 252SMD(18W);333SMD(24W);423SMD(35W)
5. Size: 178*114mm
6. LED Brand: Epistar
7. Color: RGB/White/Green/Blue/Warm White
8. Application: Widely used for the decoration lighting under water or any water view such as the swimming pool, eruptive fountain, man-made lake.

LED Pool light Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.

LED Pool Lamp Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures

LED Pool light Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

LED qty and power:	Dip 5mm LED: 252pc (18W), 351pcs(24W), 501PCS(35W), 558PCS(40W) 5050 3-chip SMD LED: 144SMD (30W) 3014SMD LED: 252pc(18W);333pcs(24W);423pcs(35W) 2835SMD LED: 144pc (24W), 207pc(35W), 252pc(40W) Power LED: 9*1W(9W),12*1W(12W),18*1W(18W),9*3W(27W),12*3W(36W),18*3W(54W)
LED Voltage:	AC12V/24V, DC12V
LED Color:	Single color: Red, Yellow, Blue, Green,Warm White (2700-3500K), Neutral White (4000-4500K), Cool White (6000-6500K), Cold White (8000-12000K) RGB Color: inner controlled, remote controlled, Switch on/off controlled, DMX 512 controlled, external controlled, Wifi Controlled
