• Model NO.：PAR56TG-252S3014
• Style：Modern Chinese Style
• Voltage：12-24V
• Certification：CE, RoHS
• Waterproof Standard：IP68
• Warranty：2years
• Cool White：6000-6500K
• Warm White：2700-3500K
• Single Color：Red Yellow Blue Green White
• Power：18W
• LED Qty：252PCS 3014SMD

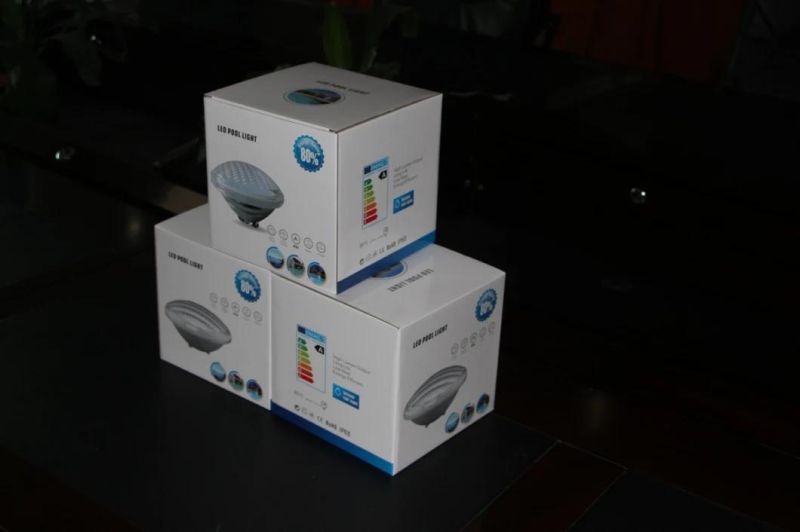

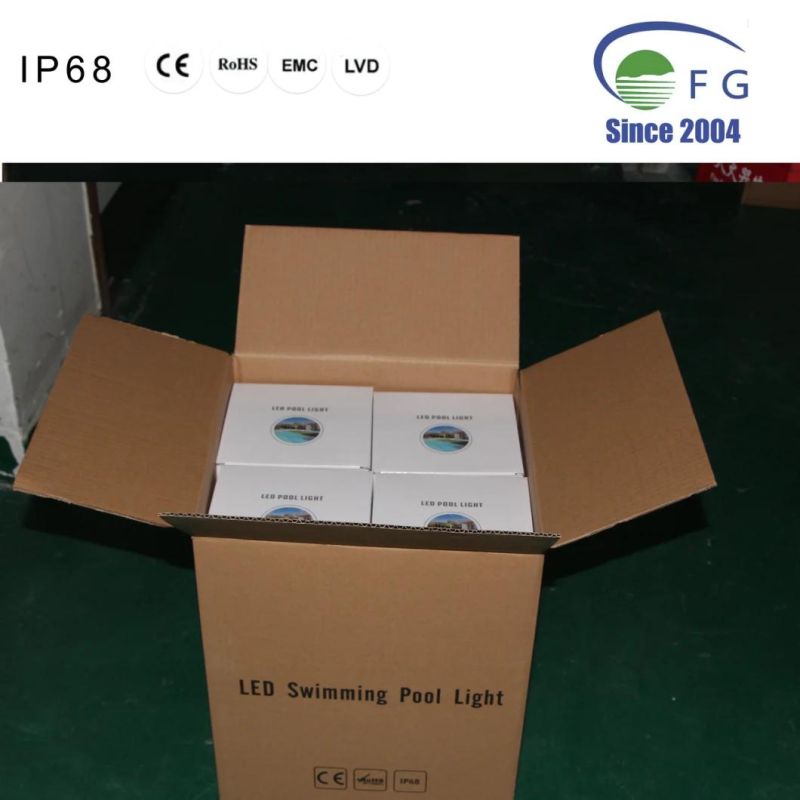

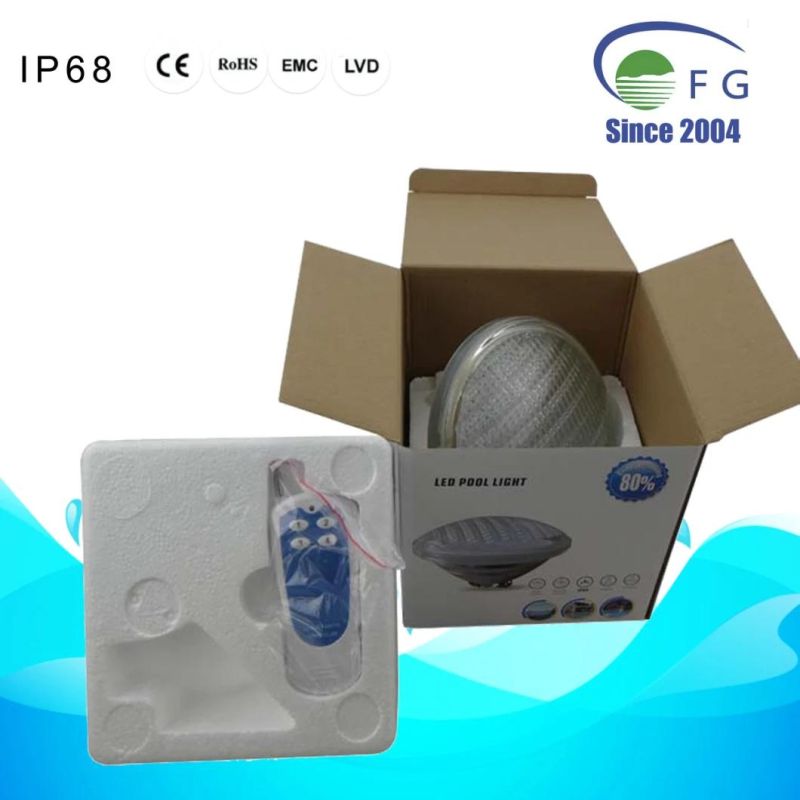

• Transport Package：Neutral Color Box with Foam
• Specification：CE, RoHS
• Trademark：Future Green
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. PAR56TG-252S3014 Style Modern Chinese Style Voltage 12-24V Certification CE, RoHS Waterproof Standard IP68 Warranty 2years Cool White 6000-6500K Warm White 2700-3500K Single Color Red Yellow Blue Green White Power 18W LED Qty 252PCS 3014SMD Transport Package Neutral Color Box with Foam Specification CE, RoHS Trademark Future Green Origin Guangdong, China HS Code 9405409000 Production Capacity 10000PCS/Month

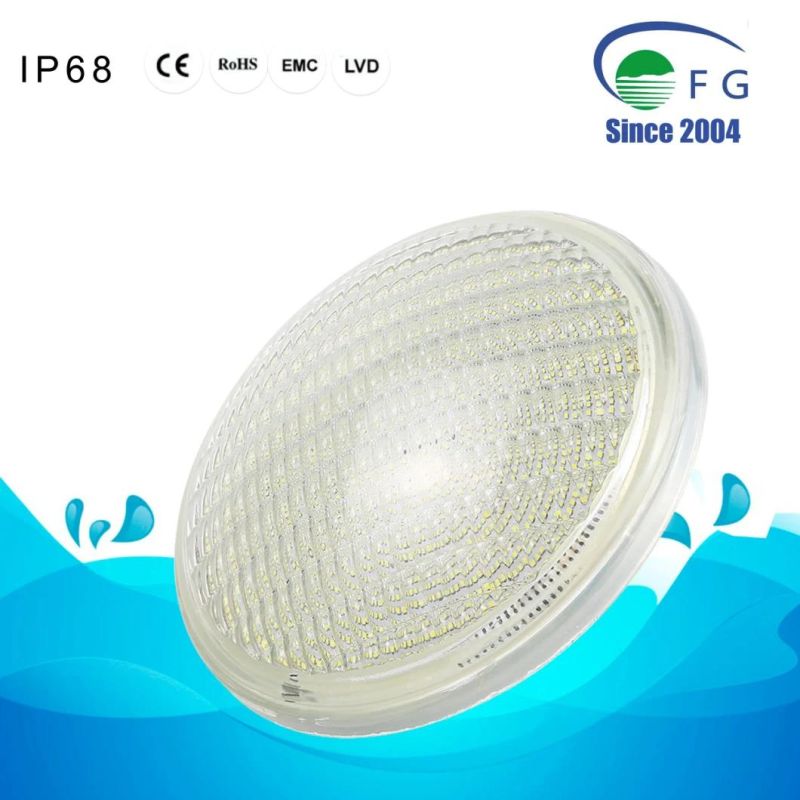

Product Description

16 colors model 18W 24W 35W 40W LED PAR56 light AC12V IP68
To replace traditioanl PAR56 halogen bulb directly
Single color or RGB Color changed synchronously

Size:178*114mm
Voltage:AC12V
LED qty: 2835SMD
Power: 18W 24W 35W
Color: single color or RGB
Waterproof grade: IP68


Applications:

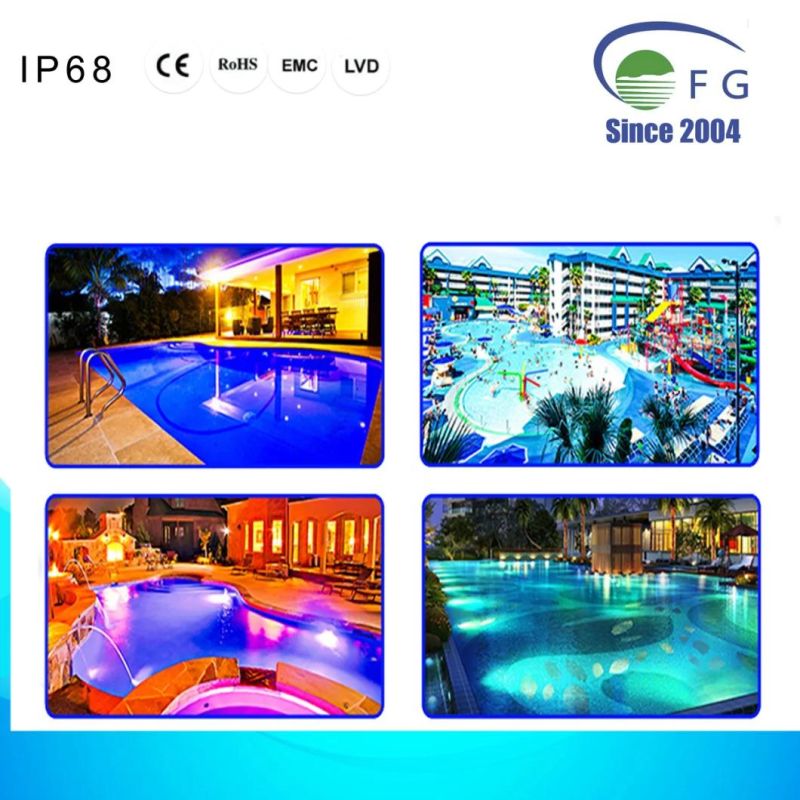

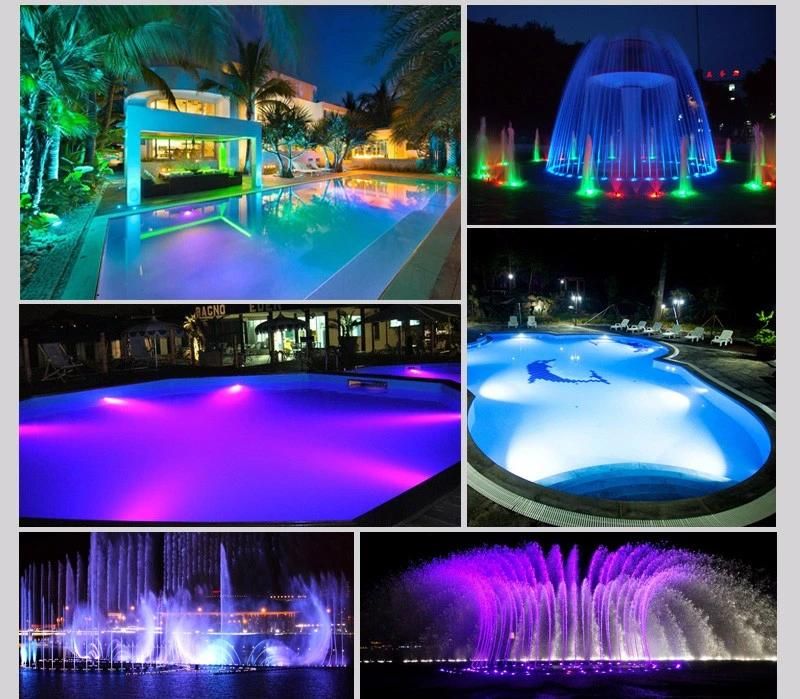

It is used in swimming pools, fountains, scenic ponds' illumination and decoration.



Voltage details:
Single color: R/Y/B/G/CW/WW         (AC/DC12V)
RGB on/off controlled                   (AC12V)
DMX512 Controlled 4wires              (DC12v)
External controlled 4wires               (DC12V)
RGB 2wires PLC controlled             (AC12V)

Color Program details for RGB on/off controlled with memory (totally 16models:
1. White (Red+Green+Blue)
2.RED
3. Green
4.Blue
5. Skyblue(Green+blue)
6. Orange(Red+green)
7.Purple(red+blue)
8. static Blue color, Red gradually changing
9. static Green, Red gradually changing
10. static Blue, Green gradually changing
11. static white(Cool white)
12.G→B→GB→RG→RB→RGB→R Slow gradually changing in circulation
13.R→G→B→GB→RG→RB→RGB→RG→G→GB→B→RB→R gradually changing in circulation
14.R→G→B Jumpy changing from fast to Slow→R→(R→B→G) Jumpy changing from fast to Slow→(R→RB→RG→G→GB→RB→RG→GB)fast  gradually changing,then changed circulation
15,RG→G→GB→B→RB→R  Slow gradually changing in circulation
16. Program 14 +13 in Slow gradually changing in circulation

Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.

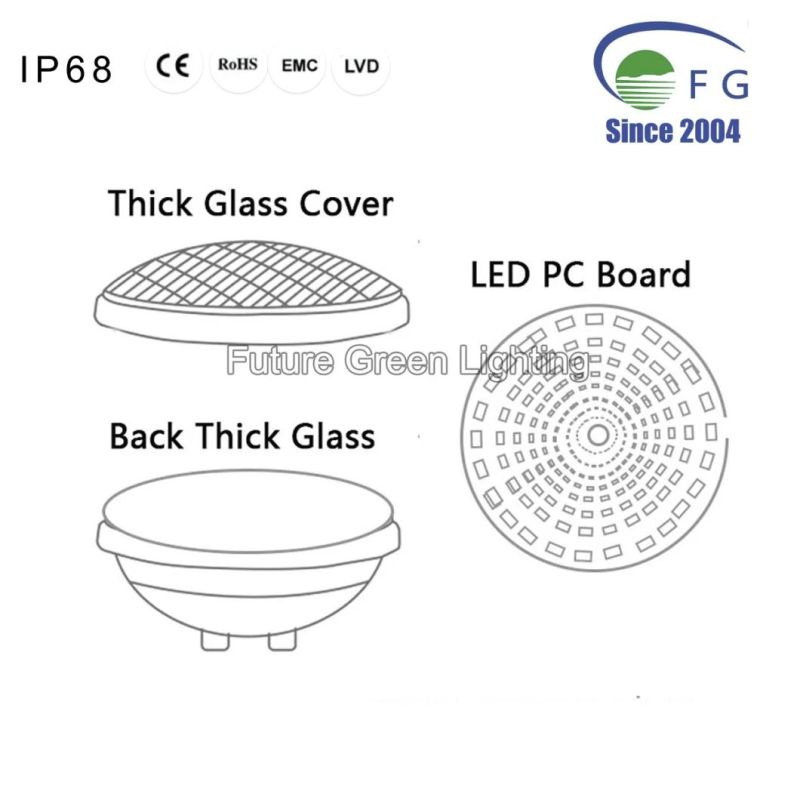

2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6.The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7.The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.

Cautions:
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

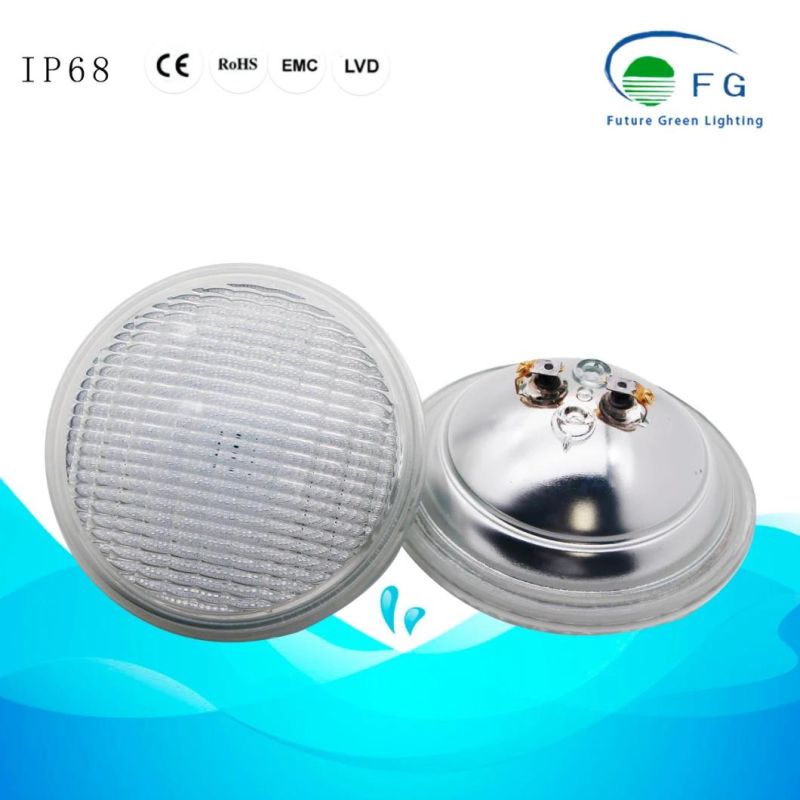

PAR56 type:	Thicker glass, PC,Stainless steel 316
LED qty and power:	3014SMD: 252SMD (18W); 333SMD(24W); 441SMD(35W) 2835SMD: 144SMD (24W); 207MD(35W); 252SMD(40W) Dip 5mm led: 252LED(18W), 351LED(24W), 501LED(35W), 558led(40W) 5050 3-chip SMD LED: 144SMD (30W) Power LED: 9*1W(9W), 12*1W(12W), 18*1W(18W), 9*3W(27W), 12*3W(36W), 18*3W(54W)
LED Color:	Single color: Red, Yellow, Blue, Green, Warm White (2700-3500K), Neutral White (4000-4500K), Cool White (6000-6500K), Cold White (8000-12000K) RGB Color: inner controlled, remote controlled, Switch on/off controlled, DMX 512 controlled, external controlled
PAR56 fixture shell:	PC, Stainless steel

(10)IP Rate: IP68, completely waterproof
Energy saving, Eco-friendly, little heat while working, long life, safe in use

LED qty and power:	Dip 5mm LED: 252pc (18W), 351pcs(24W), 501PCS(35W), 558PCS(40W) 5050 3-chip SMD LED: 144SMD (30W) 3014SMD LED: 252pc(18W);333pcs(24W);423pcs(35W) 2835SMD LED: 144pc (24W), 207pc(35W), 252pc(40W) Power LED: 9*1W(9W),12*1W(12W),18*1W(18W),9*3W(27W),12*3W(36W),18*3W(54W)
LED Voltage:	AC12V/24V, DC12V
LED Color:	Single color: Red, Yellow, Blue, Green,Warm White (2700-3500K), Neutral White (4000-4500K), Cool White (6000-6500K), Cold White (8000-12000K) RGB Color: inner controlled, remote controlled, Switch on/off controlled, DMX 512 controlled, external controlled, Wifi Controlled
