• Model NO.：ES-XL-X9
• Powered by：2xcr123A
• Color：Matte Black
• Brand：OEM
• Sort：Tactical LED Flashlight, LED Torch, Tactical LED L
• Transport Package：Packing: 1 Unit,Gift Box, 50 Units,Master Carton
• Specification：Police standard
• Trademark：Buyer′s logo
• Origin：China
• Production Capacity：1000 Per Month

Basic Info.

Model NO. ES-XL-X9 Powered by 2xcr123A Color Matte Black Brand OEM Sort Tactical LED Flashlight, LED Torch, Tactical LED L Transport Package Packing: 1 Unit/Gift Box, 50 Units/Master Carton Specification Police standard Trademark Buyer′s logo Origin China Production Capacity 1000 Per Month

Product Description

Strobe LED flashlight with 225 lumens CREE LED
1. Buyer's LOGO printed.
2. Pistol mount integrated
3. OEM &ODM serivce offered

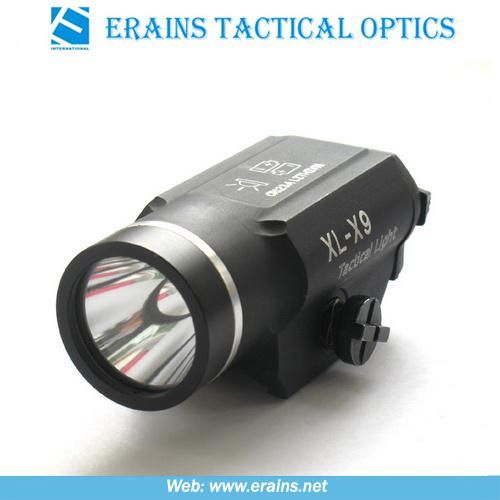

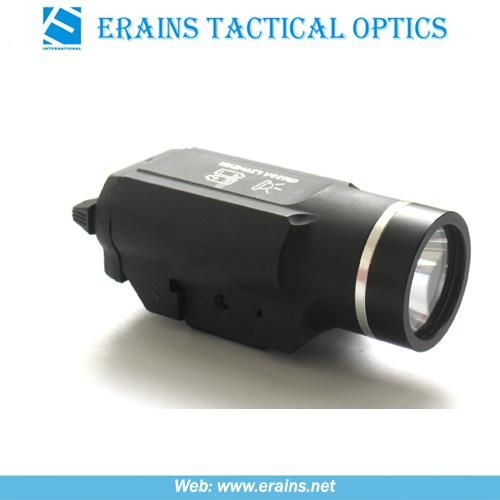

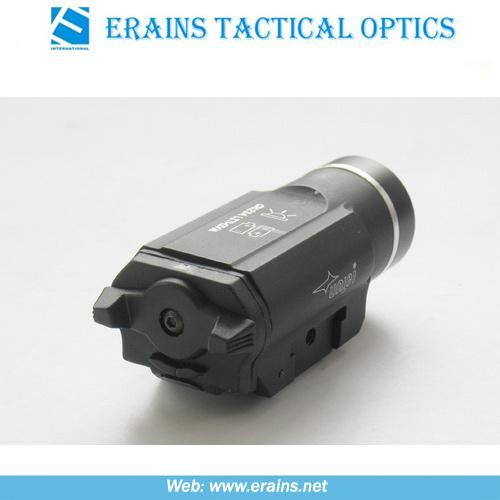

Model: ES-XL-X9
Name: Weapon-mounted Tactical LED Flashlight and LED Torch, tactical LED light, tactical LED torch with strobe function





TECHNICAL DESCRIPTION
Power Output: 3 W
Battery: Two CR123 Lithium Batteries
Battery Life: 2.5 hours of runtime

LED detailed information
LED model: LED-003 CREE Q5 LED
Power: 3W
Diameter: Ø 8 mm
Length: 85 mm
LED brightness: Up to 200 or 225 lumens blinding beam, Bright sidelight
LED radiation Angle: 120 degree
Light color: Cold white
Max electric current: 750mA
Working Temperature: -40 ~ +80
Light attenuation: Less than 3% after 10k hours
Life time: ≤ 50000 hours
Weight with Battery: 4.72 oz, 133.8g
Warranty: Extended Warranty
Construction: Aircraft aluminum 7061-T6
Finish: Anodic oxidation/ V' r3 black
Operation: Ambidextrous Momentary/Steady on-off Switch
Rail Mount: Integrated mount

KIT INCLUDES
Tactical LED Flashlight integrated mount
Calibration tools
2 CR-123A lithium batteries
User manual
Tail wire pressure pad switch with plug hole battery end cover (optional)

PACKING
Packing: 1 unit/gift box, 50 units/master carton
Unit package: Gift paper box or white box
Master Carton: Top cardboard carton

FEATURES
Lightweight
Compact
Safe and adjustable
Dust and Shockproof
Ambidextrous Momentary/Steady on-off Switch
Machined anodized aluminum housing
Fits existing light bearing holsters

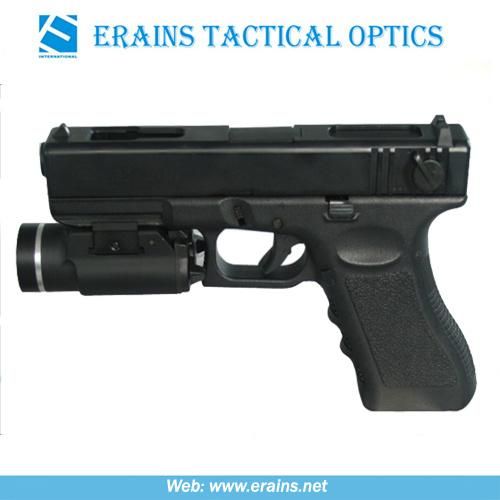

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

BATTERY ASSEMBLY
The ES-XL-X9 LED flashlight uses 2 CR-123 (6V) batteries. The CR-123s negative and positive pole has been indicated on the mount.

DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.

To access the battery compartment you must first remove the flashlight from the firearm. Follow the XL removal procedure instructions to remove the flashlight from the firearm.

1. Unclip the door latch, the latch is tight, it may help to use a coin.
2. Slip the batteries from the flashlight.
3. Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.
4. Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.
5. Firmly push and hold the door closed against the flashlight body.
6. Swing the door latch over the door and snap it into place.

MAINTENACE
The XL rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (XL-2LL) can be cleaned with a Q-tip 9or similar item) and mild detergent.
Note: Always avoid aggressive cleaning solutions as they may damage the XL.

XL PARTS
Note: The XL rail key can be changed to accommodate several varieties of mounting rails. Remove the rail key screw with a 7/64th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the rail key screw.
