• Light Body Material：Plastic
• Cover：PS,PC
• Body：PC,ABS
• IP：65
• Ik：08
• Lifespan：50000hours
• Cable Gland：PC or Brass or Stainless Steel
• Lock：PC or Stainless Steel Clips
• Warranty：5years
• Length：2FT,4FT,5FT
• Width：Single,Double T8
• Transport Package：Carton
• Specification：ABS,PC+PC,PC
• Trademark：longlux
• Origin：China
• HS Code：9405920000
• Production Capacity：1000000

Basic Info.

Light Body Material Plastic Cover PS/PC Body PC/ABS IP 65 Ik 08 Lifespan 50000hours Cable Gland PC or Brass or Stainless Steel Lock PC or Stainless Steel Clips Warranty 5years Length 2FT/4FT/5FT Width Single/Double T8 Transport Package Carton Specification ABS/PC+PC/PC Trademark longlux Origin China HS Code 9405920000 Production Capacity 1000000

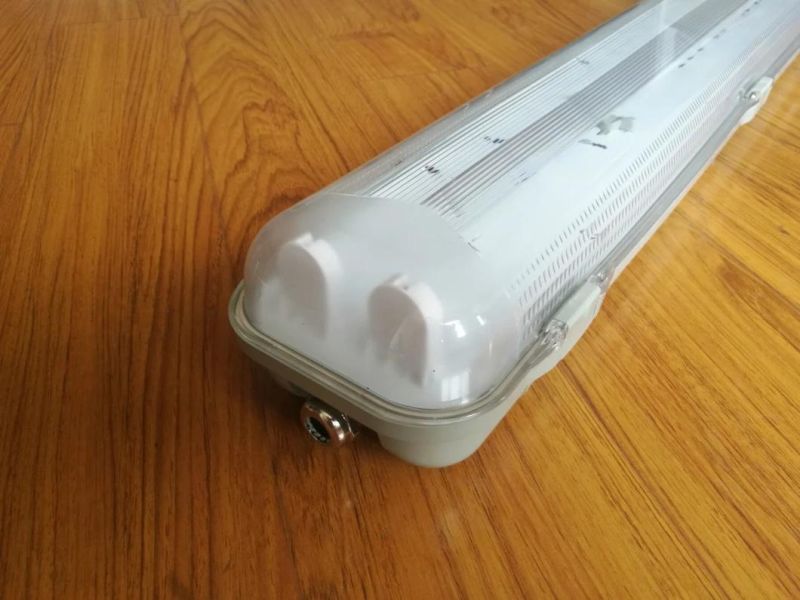

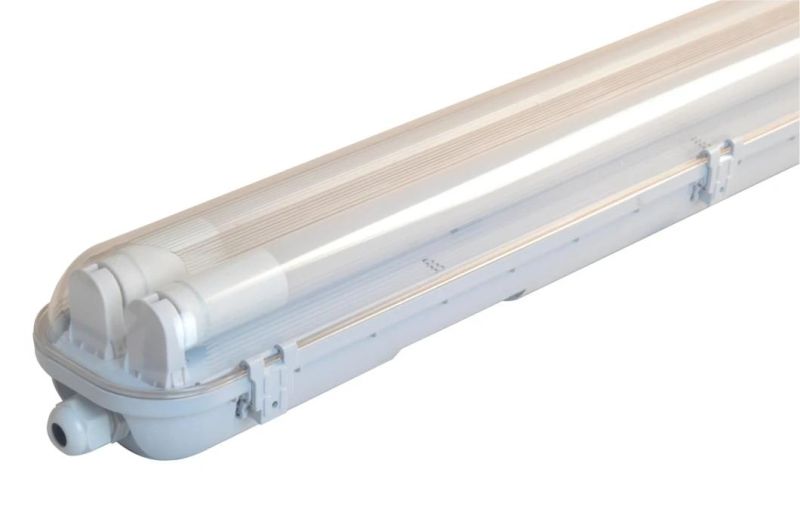

Product Description

Feature1. Unique design,CE, ROHS listed.
2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement

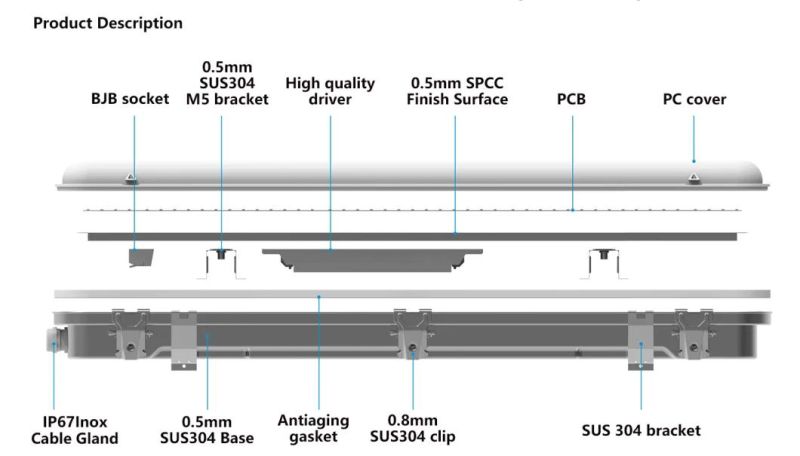

4. ABS/PC body, PS/PC Transparent diffuser & Micky diffuser, PC & stainless steel clips for your option

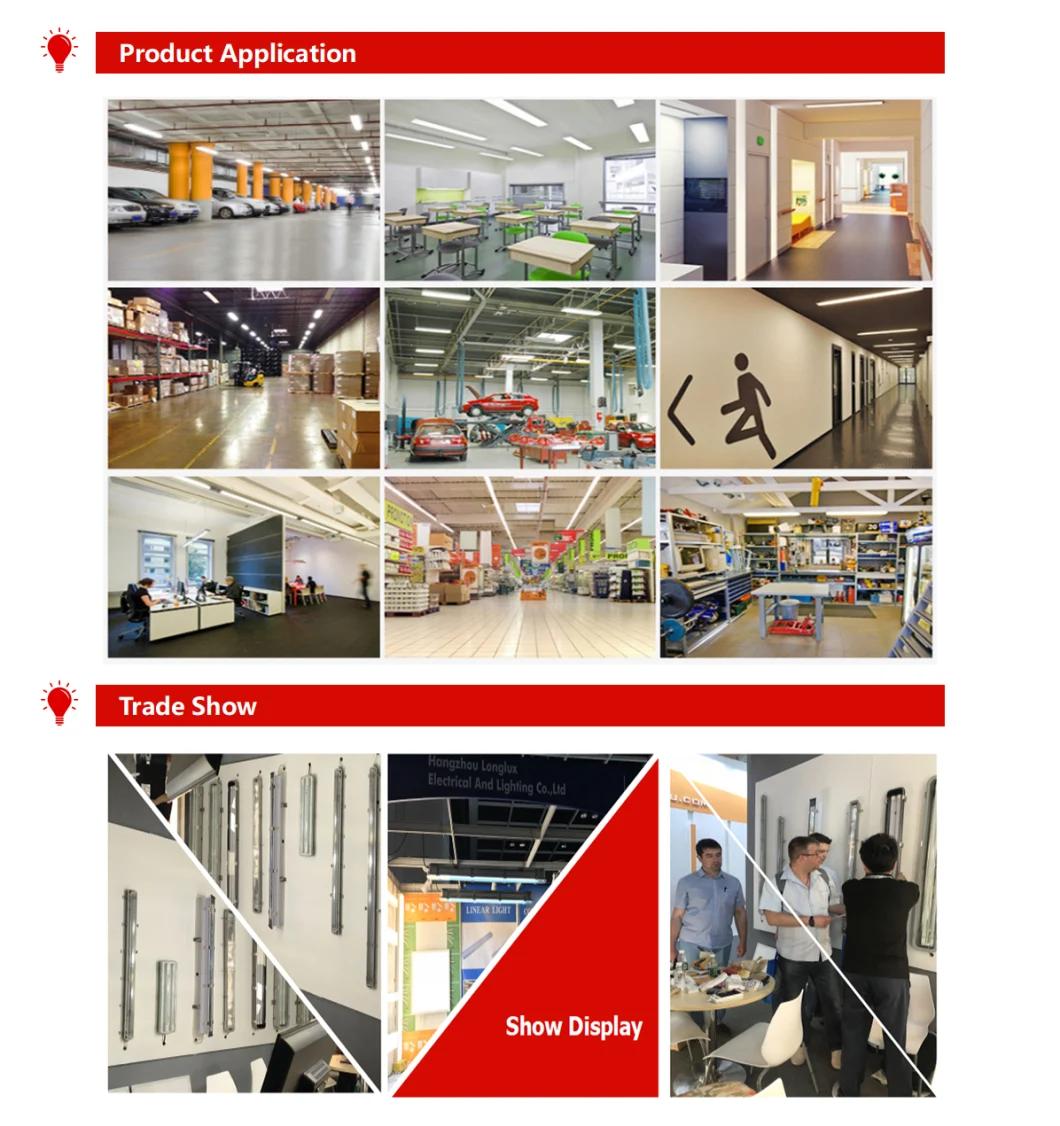

5. Application: Parking place, Tunnel, Railway Station,Warehouse.

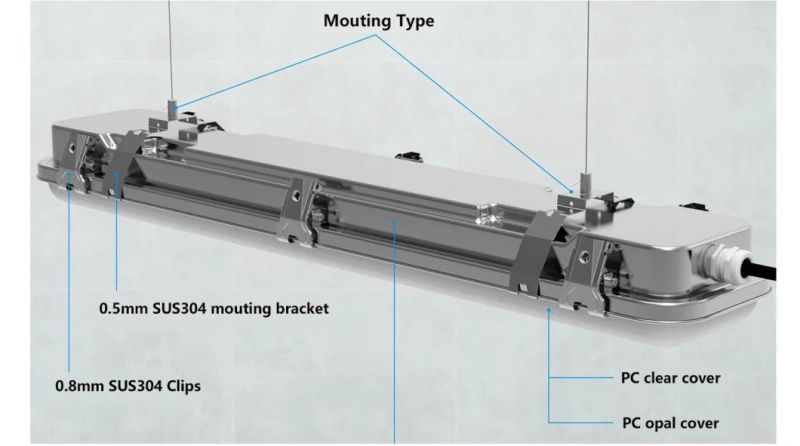

6. Easy and fast ceiling installation
7. Suitable for electronic ballast and tube according to client's requirements
 Specification

Model	LLX-TriProof-118C	LLX-TriProof-218C	LLX-TriProof-136C	LLX-TriProof-236C	LLX-TriProof-158C	LLX-TriProof-258C
Watt(W)	1*18	2*18	1*36	2*36	1*58	2*58
IP Rating	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
N.W.(Kg/Ctn)	9	8	16	15	18	17
G.W.(Kg/Ctn)	10	9	17	16	19	18
Dim(L*W*H)	665*70*80	665*100*80	1265*70*80	1265*100*80	1565*70*80	1565*100*80
Carton Dim(L*W*H)	685*220*285	685*240*285	1285*220*285	1285*240*285	1585*220*285	1585*240*285
Qty/Carton(PCS)	12	8	12	8	12	8

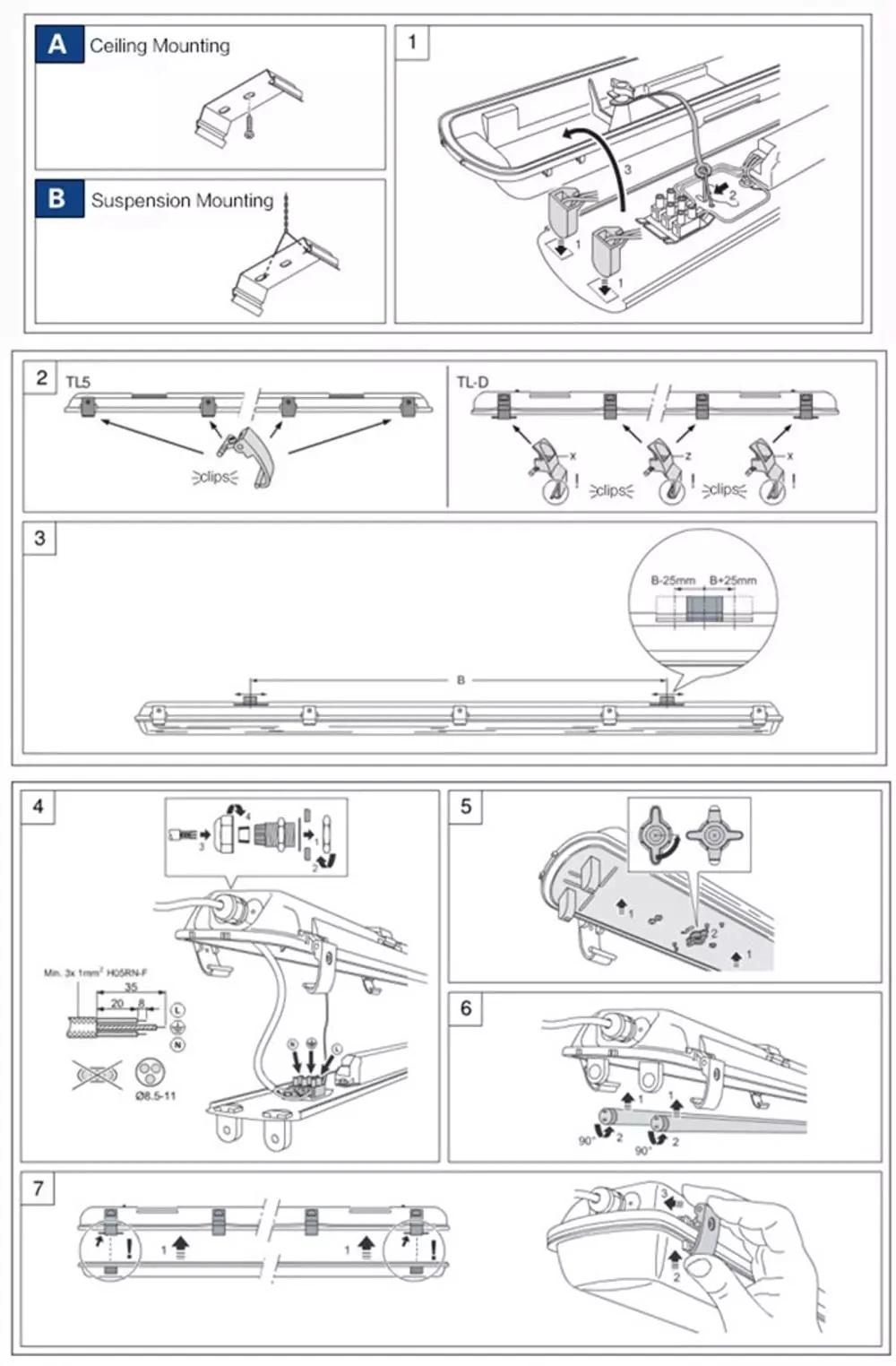

Manual Instruction
