• Model NO.：LED B114H
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE, EMC, LVD
• Color：9*10W RGBW 4in1 Multi-Color
• Battery Using Time：5-6hours (Chargeable Battery)
• Transport Package：Carton,Flycase
• Specification：Dimensions: 30*30*19cm Weight: 6.00kg
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

Specification:ModelLED B114H (9*RGBW 4-IN-1 MULTI-CHIP LED)DMX Channel7CH/4CHControl panelDigital 4 characters alphanumericHousing ColorBlackOperating voltage100-230V ACControl ModesDirect DMX 512, Master/slave. Stand alone. Sound ActivityConnector3-PinXLR (In and Out)NO. of LED9*10W RGBW 4-IN-1 MULTI-CHIP LE D LAMPLED Life Time80000-100, 000 hoursBeam Angle25° /30°Power Consumption90WLight Projecting Distance5-30MIP RatingIndoorBattery using time5-6hours (Chargeable Battery)Packing Dimension30*30*19cm/ 67*39*37cm (6pcs)Gross Weight6.00KGS /30.00kg(6pcs)Compatibility:1. Color Range: 16.7 million  additive  RGBW  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, flash, speed/luminance the adjustable5. 7channel Mode and 4channel Mode would change each other in every light6. 7CH Mode DMX ValueCH 1 General dimmer      (1-255, from dart to light)CH 2 Red                  (1-255, Dimmer, from dart to light)CH 3 Green                (1-255, Dimmer, from dart to light)CH 4 Blue                  (1-255, Dimmer, from dart to light)CH 5 White                 (1-255, Dimmer, from dart to light)CH 6 Strobe & Color change/ color gradual change openCH 7 Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)7. 4CH Mode DMX ValueCH 1 Red                   (1-255, Dimmer, from dart to light)CH 2 Green                 (1-255, Dimmer, from dart to light)CH 3 Blue                   (1-255, Dimmer, from dart to light)CH 4 White                  (1-255, Dimmer, from dart to light)8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8. Adjustingcolor' s gradual change manual9. Adjustinggradual change' s speed

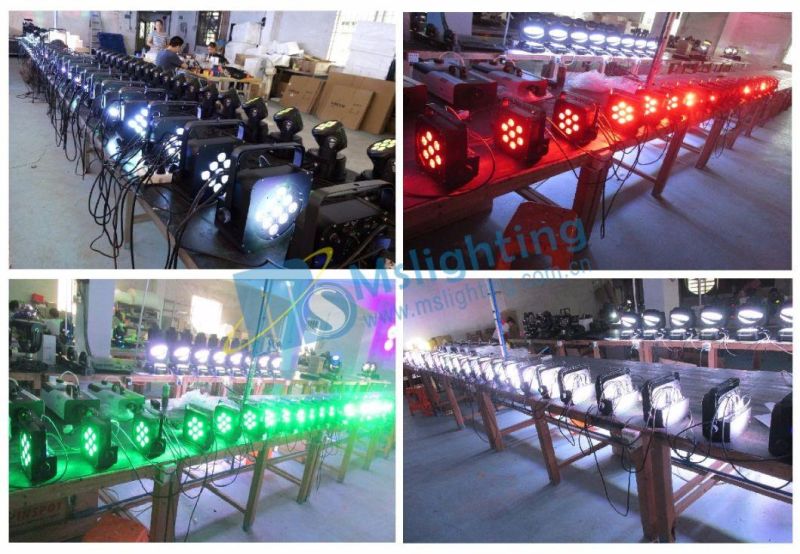

Production Line:
