• Model NO.：NM3X2835-072B
• LED Chips：Epistar, CREE, Osram, Luminiled, Samsung, Sanan
• Beam Angle：160
• Wire Length：110mm
• Driver Way：Constant Current , Constant Voltage
• Warranty：5 Years
• Product Type：LED Sign Module
• Applications：LED Module for Light Box, Sign Box, Channel Letter
• Transport Package：40PCS,Chain LED Module
• Specification：63 x 15 mm
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：600, 000,Month

Basic Info.

Model NO. NM3X2835-072B LED Chips Epistar, CREE, Osram, Luminiled, Samsung, Sanan Beam Angle 160 Wire Length 110mm Driver Way Constant Current / Constant Voltage Warranty 5 Years Product Type LED Sign Module Applications LED Module for Light Box, Sign Box, Channel Letter Transport Package 40PCS/Chain LED Module Specification 63 x 15 mm Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 600, 000/Month

Product Description

Best Selling 0.72W LED Backlight Module SMD 2835 LED Module for 8cm-25cm Light Box and Channel Letters

Features

1. Constant Current Technology (CCT),40pcs per series2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.
Dimensions



Technical parameters


Part no.	Color	Wave Length  Or CCT	Operating Voltage	Rated Power per module	Beam  Angle	Lm Flux  per module	IP Rank
NM3W2835-072B	Pure white	6000-7500K	DC12V	0.72W	160°	66lm	IP67
NM3C2835-072B	Cool white	9000-16000K	DC12V	0.72W	160°	63lm	IP67
NM3M2835-072B	Warm white	2700-3200K	DC12V	0.72W	160°	63lm	IP67
NM3R2835-072B	Red	620-630nm	DC12V	0.72W	160°	18lm	IP67
NM3G2835-072B	Green	520-530nm	DC12V	0.72W	160°	36lm	IP67
NM3B2835-072B	Blue	460-470nm	DC12V	0.72W	160°	10.5lm	IP67
NM3Y2835-072B	Yellow	588-594nm	DC12V	0.72W	160°	15lm	IP67

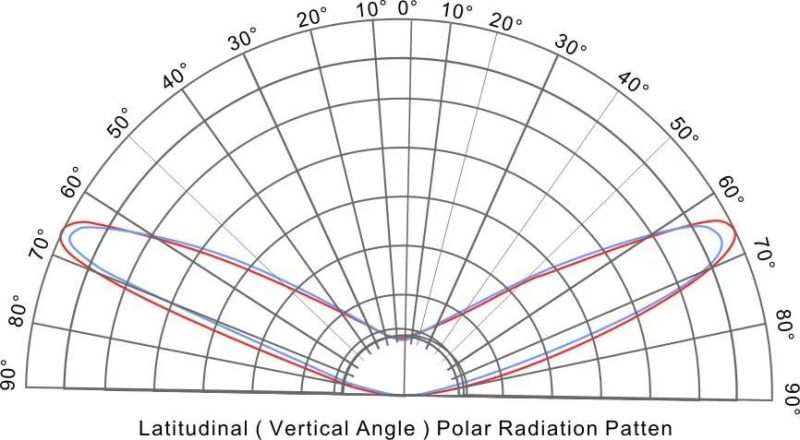

Led module light distribution graph

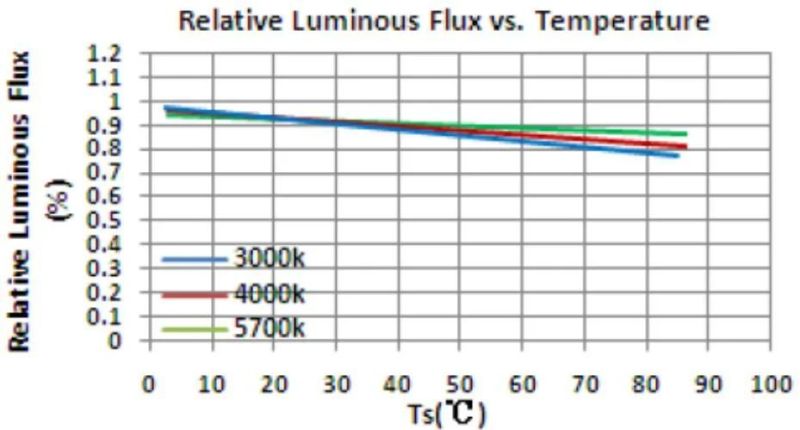

Temperature and luminous flux






Attention

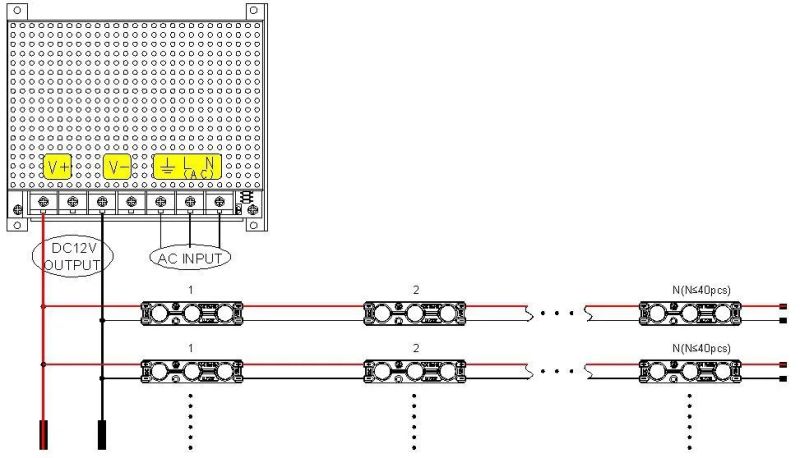

1. Max. number of modules of one chain is 40pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

Packing
 1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.2. 40pcs per chain,3pcs chain in one Anti-static bag . (120 pcs in one Anti-static bag).3. 7 bags in one small carton . ( 840 pcs in one small carton).4. One outal carton contains two small cartons (1680 pcs in one outal carton).

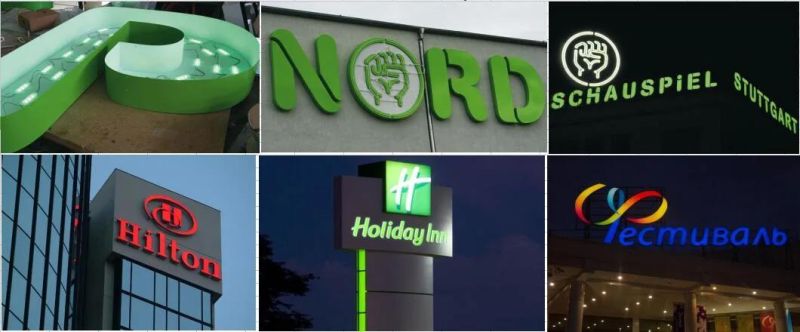

Applications
1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lighting

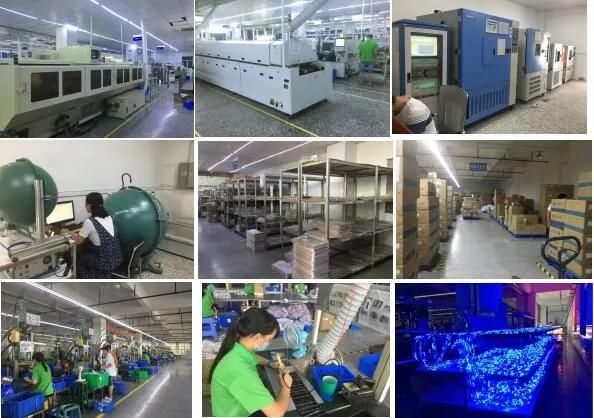

Company Profile :
