• Model NO.：LED 3001,LED 3001A,3001B,3001C,3001D,3001E
• Electric Current Type：AC
• Input Voltage：220V
• Diffuser：Tempered Glass
• Shell Material：Aluminium Alloy
• LED Chips：CREE
• Certification：CE, EMC, LVD
• Color：RGB,RGBW,RGBA,UV,Wa
• Transport Package：Carton,Flycase
• Specification：260*260*370mm
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500pcs,week

Specification:ModelLED 3001 (36*1W)LED 3001A (36*3W)LED 3001B (54*1W)LED 3001C (54*3W)LED 3001D 30*RGB 3-IN-1)LED 3001E (33*5W)ColorRGB/RGBW/RGBA/UV/WARGB 3IN1RGB/RGBW/RGBA/UV/WALED current320mA680mA320mA680mA680mA680mANO.of LED36*1W LEDS (12R/12B/12G)36*3W LEDS (12R/12B/12G)54*1W LEDS (16R/16B/16G)54*3W LEDS (16R/16B/16G)30*3-IN LEDS33*5W LEDS (11R/11B/11G)Power Consumption40W120W60W160W108W165WLight Projecting Distance5-25M5-35M5-35M5-35M5-35M5-35MOperating voltage90-130V AC / 176-254V ACHousing MaterialAluminumHousing ColorBlack/WhiteAperture CoverAluminumControl ModesDirect DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronizationDMX Channel6CH/3CH,7CH/4CHControl panelDigital 4 characters alphanumericConnector3-PinXLR (In and Out)LED Life Time80000-100,000 hoursBeam Angle15° ( The other angle would order)IP RatingIndoorOperating Temperature-20 ºC -+45 ºCDimensions25.5*253.5*36.5CM (1PCS);  79*56*41CM (6PCS)Packing Dimension27*27*40CM (1PCS);  82*55*43CM (6PCS)Weight4.5KGS (1PCS);  27KGS (6PCS)Gross Weight5.0KGS (1PCS);  28.5KGS (6PCS)Compatibility:1.  Color Range:16.7 million  additive  RGB  colors; continuously  variable  intensity (256×256×256=16777216)2. Dimming 0-100%with regulated constant color control3.Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function.5. 6channel Mode and 3channel Mode would change each other in every light6. 6CH Mode DMX ValueCH 1_General dimmer   (1-255, from dart to light)CH 2_Red                 (1-255, Dimmer,from dart to light)CH 3_Green               (1-255, Dimmer,from dart to light)CH 4_Blue                 (1-255, Dimmer,from dart to light)CH 5_Strobe & Color change/ color gradual change openCH 6_Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)7. 3CH Mode DMX ValueCH 1_Red               (1-255, Dimmer,from dart to light)CH 2_Green             (1-255, Dimmer,from dart to light)CH 3_Blue               (1-255, Dimmer,from dart to light)8. Control Mode0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8. Adjustingcolor's gradual change manual9. Adjustinggradual change's speed

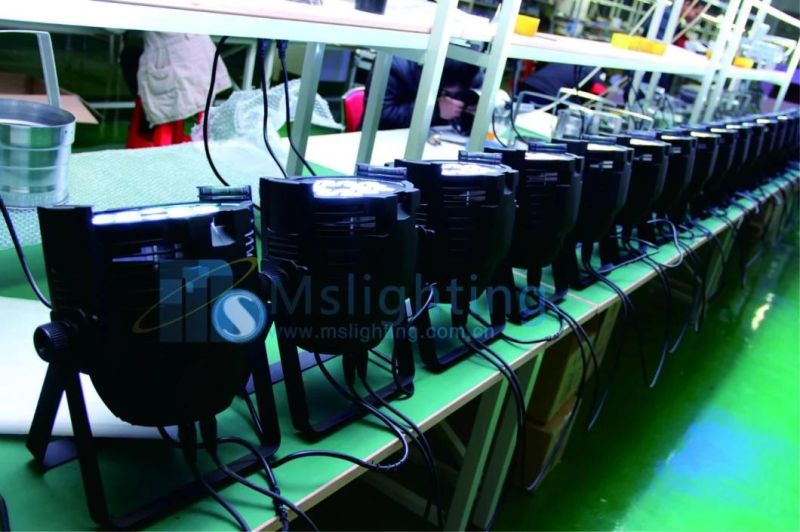

Production Line:

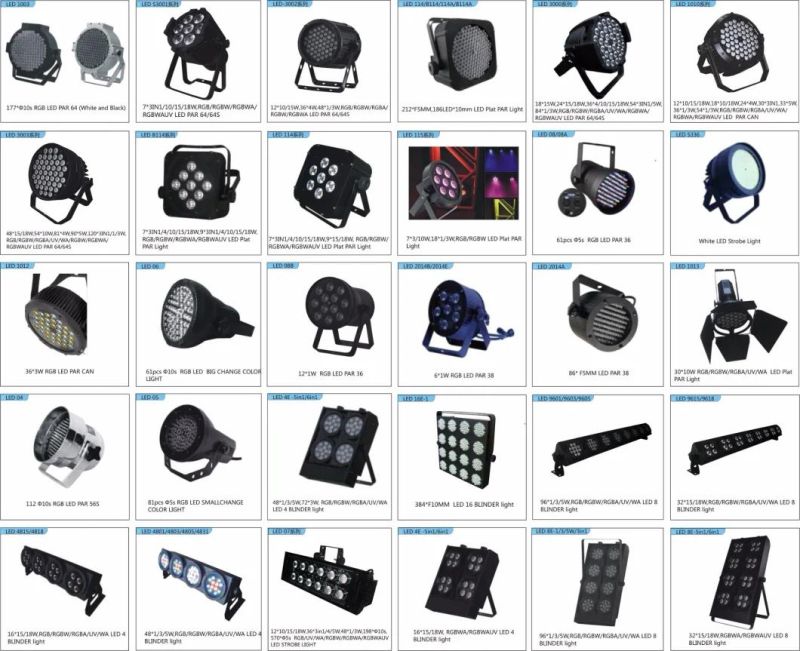

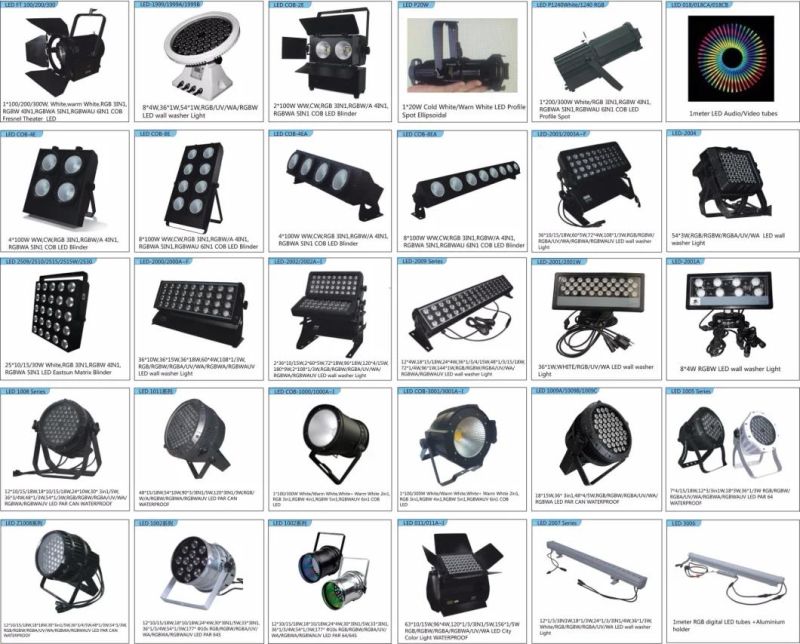

LED Catalog:


 FAQ1. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
2. Payment:
Actually, payment would be preferred,We accept by T/T (Transfer / Payment), Western Union/Money gram, Pay pal, Cash,L/C...and so on.
3. Delivery time:
The goods need 2-3 days to be made after receive deposit.
4. Why choose us?
a. We are China Leading manufacturer. We are confident that with our products Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. OEM is available.
 After service1.24 months warranty
2. If there is a problem with the product, please contact us and sent us the pictures or video for analyzing.Then we will guide you to fix it and provide the replacement parts for free if needed.Our service1. Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3. OEM&ODM service.
4. Special discount are offered based on order quantity.
5. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6. Your sales area, design and all your private information will be protectedContact usMS LIGHTING CO.,LTD
Gold Member of ALIBABA,MADE IN CHINA,SGS Audited Supplier (SGS No.:QIP-ASR141102)
Mobil: 008613246884800


Web.: mslighting.en.made-in-china.com
