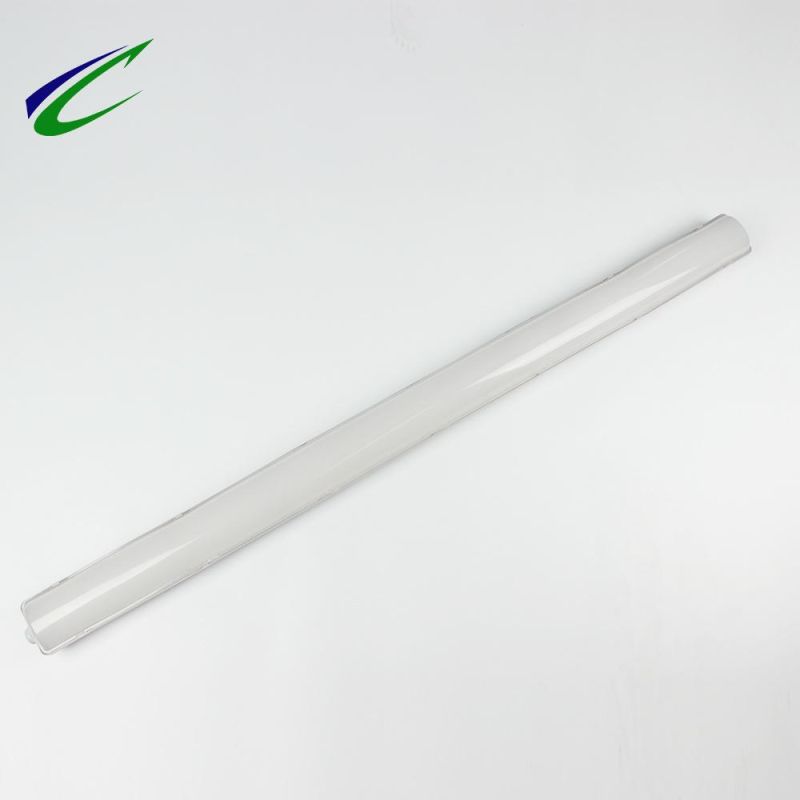

LED Outdoor Wall Light Triproof LED Lighting 0.6m 1.2m 1.5m LED Strip SMD Plate Outdoor Wall Light
Changzhou D & Y Electrical Lighting Co., Ltd.- Application：Parking Lot
- Type：Tri-Proof Light
- Feature：Anti-corrosion, Dust-Proof, Waterproof
- Light Body Material：Plastic
- Product Name：LED Tri-Proof Light
- Material：PC
Base Info
- Power：36W
- Color Temperature(CCT)：2700-6500K
- MOQ：500PCS
- PF：0.9
- CRI：Ra>80
- Transport Package：Inner Box and Outside Carton
- Specification：114*7.5*6.6cm
- Trademark：OEM
- Origin：China
- HS Code：9405409000
- Production Capacity：1000,15 Days
Description
Basic Info.
Power 36W Color Temperature(CCT) 2700-6500K MOQ 500PCS PF 0.9 CRI Ra>80 Transport Package Inner Box and Outside Carton Specification 114*7.5*6.6cm Trademark OEM Origin China HS Code 9405409000 Production Capacity 1000/15 DaysProduct Description

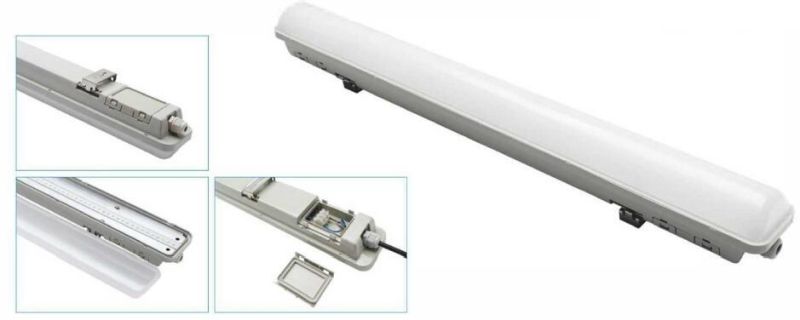

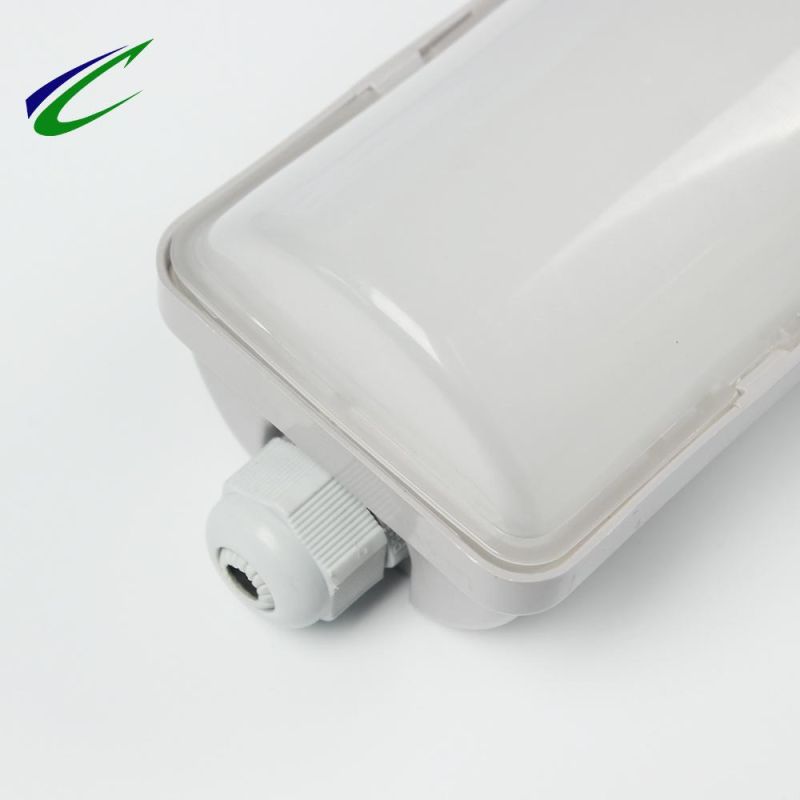

1. Injection for PC housing(round) and PC cover offering IP65 protection against moisture and dust, and an impact rating of IK08,inside 6063 aluminium reflector.
2. No closing clips for cover and housing, cost saving , installation easy.
3. Easy for wire connection at back side of the housing.
4. LED based provides energy efficient solution and reduces maintenance cost.
Application
Car parks, Industrial areas, Offices, corridors, Supermarkets and shops, Bakeries, Storage areas etc.
Specification
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-LED3109P/G | 220-240V ~ 50/60Hz | 10W | 2700-6500K | 900lm | 580 | 60 | 66 | 290 |
| DY-LED3209P/G | 220-240V ~ 50/60Hz | 18W | 2700-6500K | 1620lm | 580 | 75 | 66 | 290 |
| DY-LED3118P/G | 220-240V ~ 50/60Hz | 18W | 2700-6500K | 1620lm | 1140 | 60 | 66 | 700 |
| DY-LED3218P/G | 220-240V ~ 50/60Hz | 36W | 2700-6500K | 3240lm | 1140 | 75 | 66 | 700 |
| DY-LED3125P/G | 220-240V ~ 50/60Hz | 24W | 2700-6500K | 2160lm | 1480 | 60 | 66 | 1040 |
| DY-LED3225P/G | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 4500lm | 1480 | 75 | 66 | 1040 |
