• Model NO.：G630
• Warranty：3 Years
• Housing Material：Alluminum
• Life：50000h
• LED Chips：Samsung
• Certification：CE, RoHS, UL, FCC, Dlc
• Ppf：1700umol,S
• Efficiency：2.7umol,J
• LED Type：Samsung 301b
• Dimming：0-10V
• Beams Angle：120 Degrees
• HPS Equivalent：1000W HPS Lamp
• Designing：Patented
• Driver Brand：Sosen,Inventronics
• Equivalent：Fluence Spydr′s
• Package：Super Thick Carton+EPE
• Transport Package：Carton
• Specification：L1175*W580*H155mm
• Trademark：CSNJ
• Origin：China
• HS Code：9405409000
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. G630 Warranty 3 Years Housing Material Alluminum Life 50000h LED Chips Samsung Certification CE, RoHS, UL, FCC, Dlc Ppf 1700umol/S Efficiency 2.7umol/J LED Type Samsung 301b Dimming 0-10V Beams Angle 120 Degrees HPS Equivalent 1000W HPS Lamp Designing Patented Driver Brand Sosen/Inventronics Equivalent Fluence Spydr′s Package Super Thick Carton+EPE Transport Package Carton Specification L1175*W580*H155mm Trademark CSNJ Origin China HS Code 9405409000 Production Capacity 5000PCS Per Month

Product Description

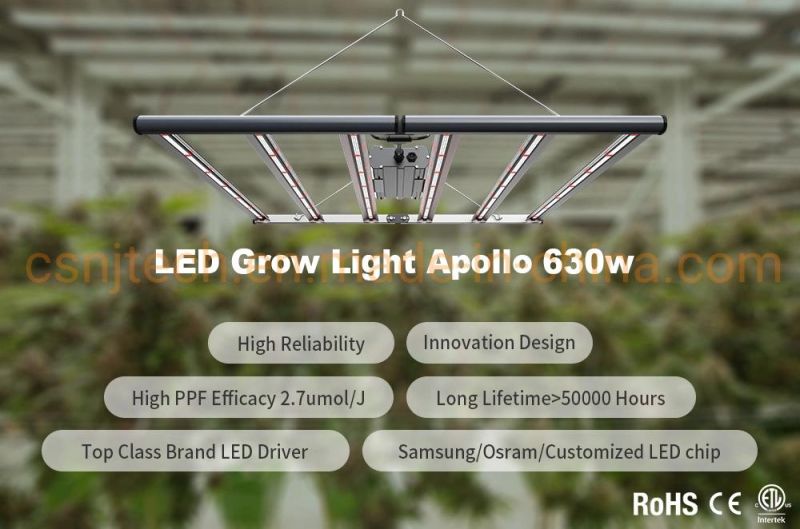

led grow light 6 bars full spectrum 630w replacing HPS 1000W HPS grow light
G600 630W LED Grow light with high performance(PPF:1700umol/s, eff: 2.7umol/J)can replace Fluence Spydr series grow lights totally. it has competitive price and more cost-effective.Specially for  Cannbis growing, and multilayer planting.

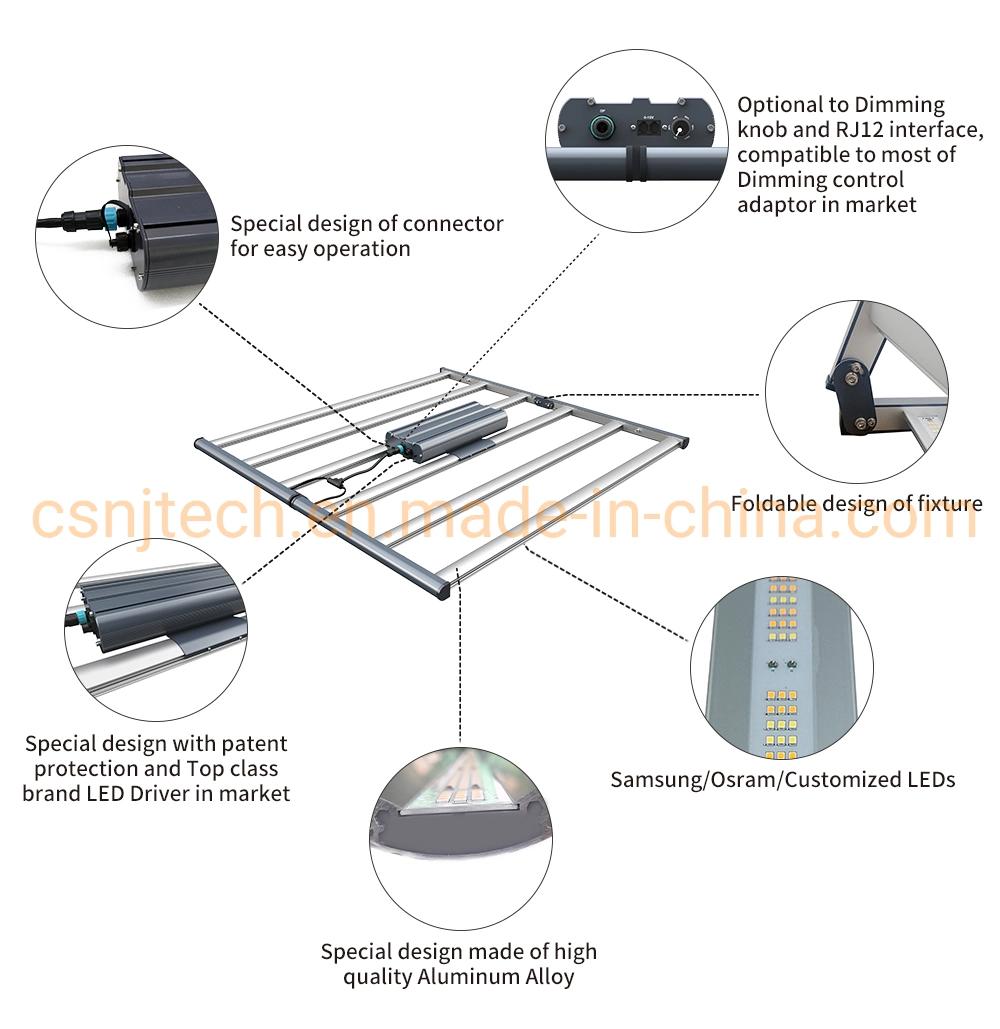

Advantages:
1. The lamp body is formed by aluminum alloy extrusion process. Anodizing surface, consistent, simple and beautiful;
2. Flexible modules structure design, each module can be easily replaced, convenient after-sales maintenance
3. Unique folding structure design(180 degree foldable), which is conducive to installation and transportation, and applied to various indoor plant growth lighting;
4. The light spectrum conforms to the physiological requirements of plants, especially in the effective spectral region of photosynthesis;
5. Choose high brightness LED as the light source, long life, low energy consumption, under normal circumstances can reach more than 50,000 hours, green environmental protection;

Specification:

Item Name	G630 Grow Light	Item NO.	CSNJ-G630
Input Voltage	100-277vAC	Power	630W
LED Type	Samsung301b	Efficiency	2.7umol/s/w
PPF	1700umol/s	Driver Eff.	90%
Dimming	0-10V/PWM/Timer Dimmable	PF	>0.9
CRI	85	R1-R15	85
Materials	Aluminum	Beams angle	120°
Demension(mm)	1125*1084*88(mm)	Color	Dark Grey +Silver
wire length	500mm	Installation type	Hanging optional
Package info	L1175*W580*H155(mm)	Qty per carton	1 piece
G.W.	14KG	N.W.	11.6KG
Operating TMPT	-20° -- +45°	Operating humidity	10%-80%
Lifespan	50000 Hours	Warranty	5 years

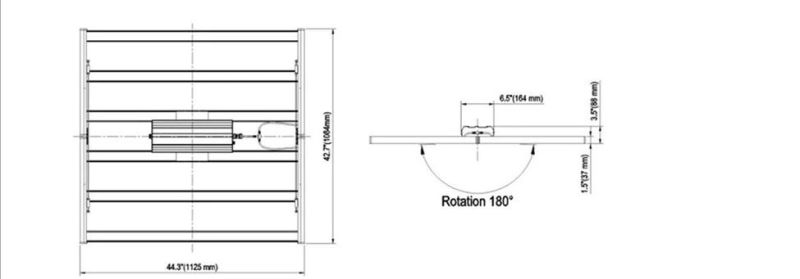

Dimension:

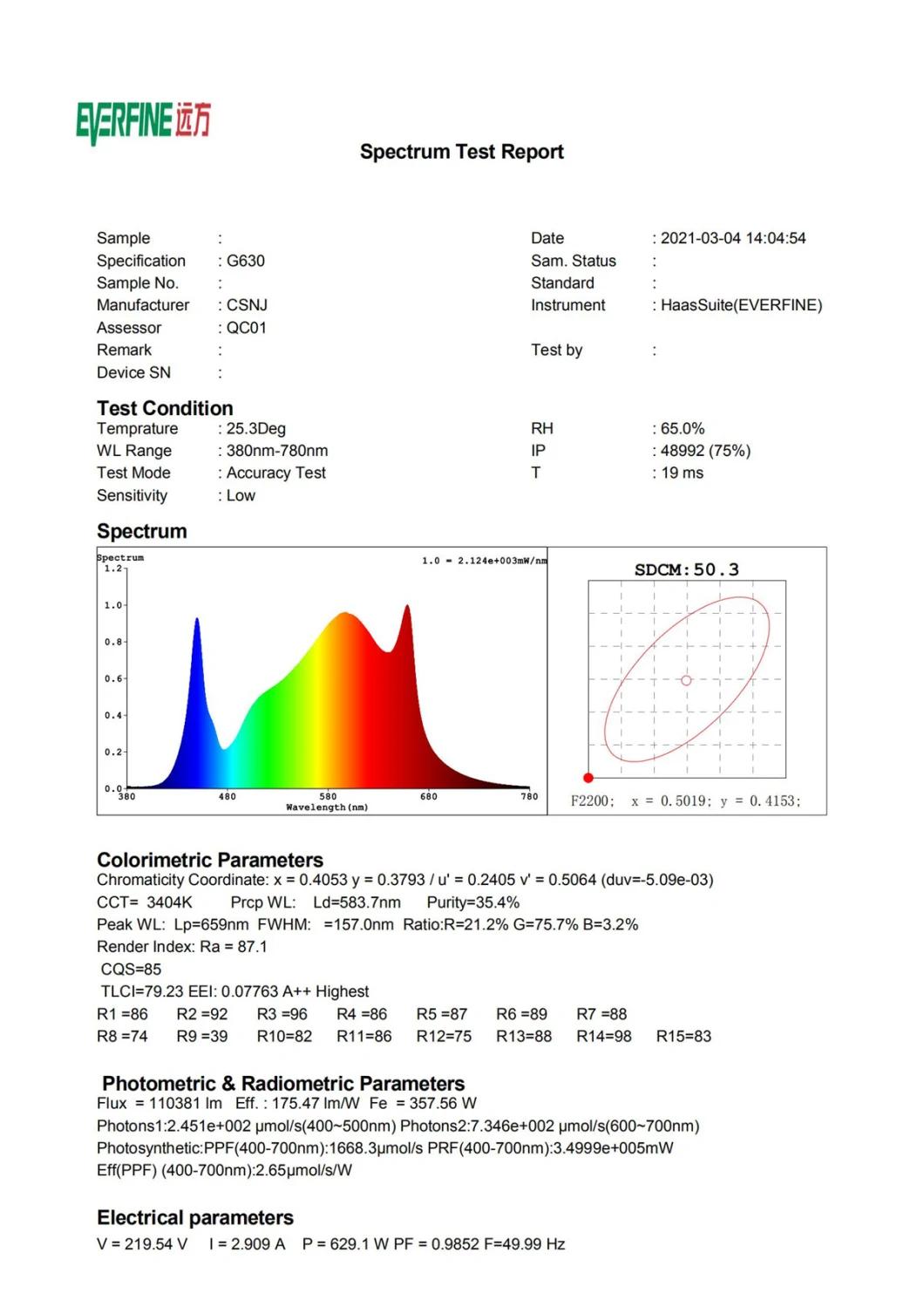

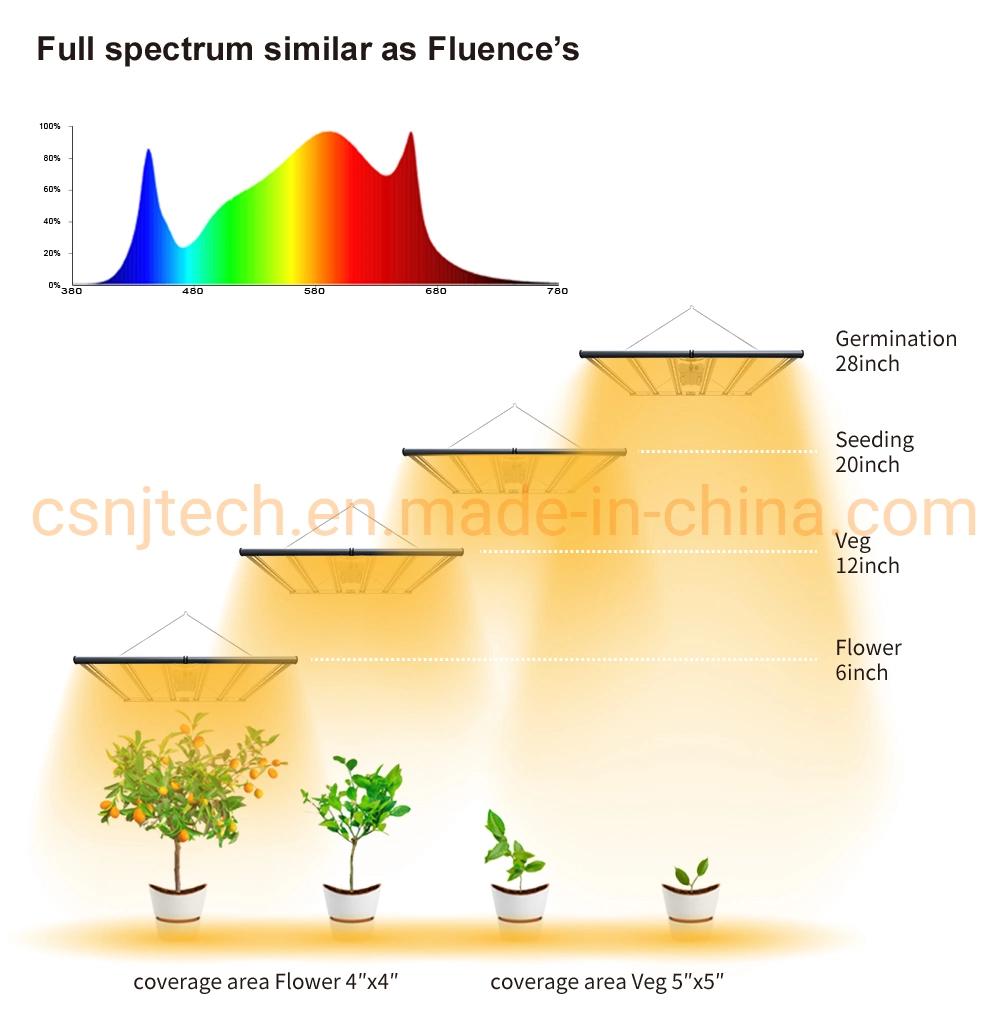

Spectrum:



Testing Report:
1.  PPF Testing: High performance and the PPF is 1668umol/s, 2.7umol/J.

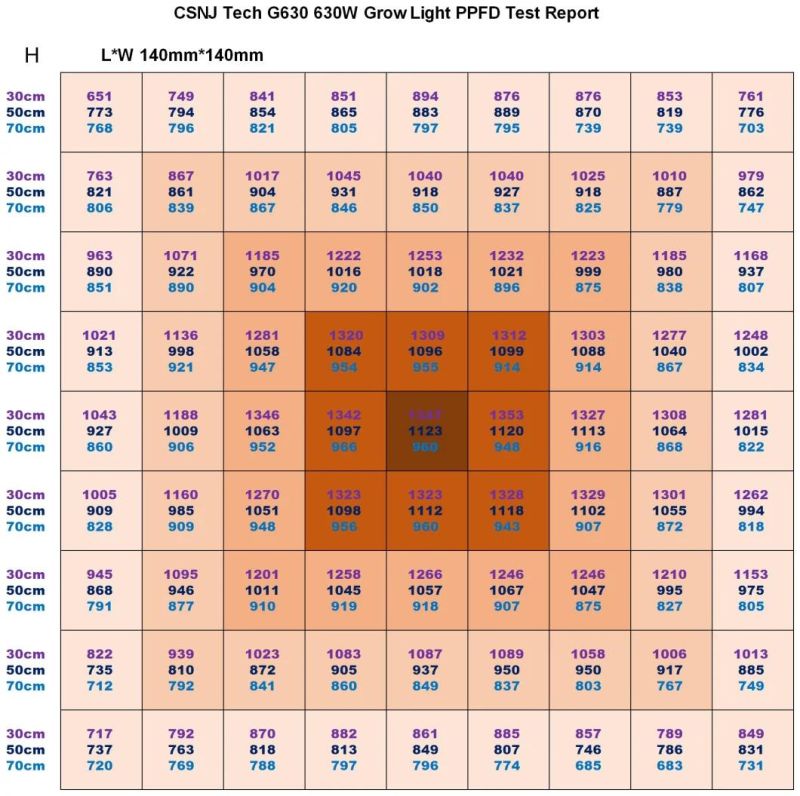

2.PPFD Testing: it is over 1400umol/s/m2 in the central area at the height of 15cm

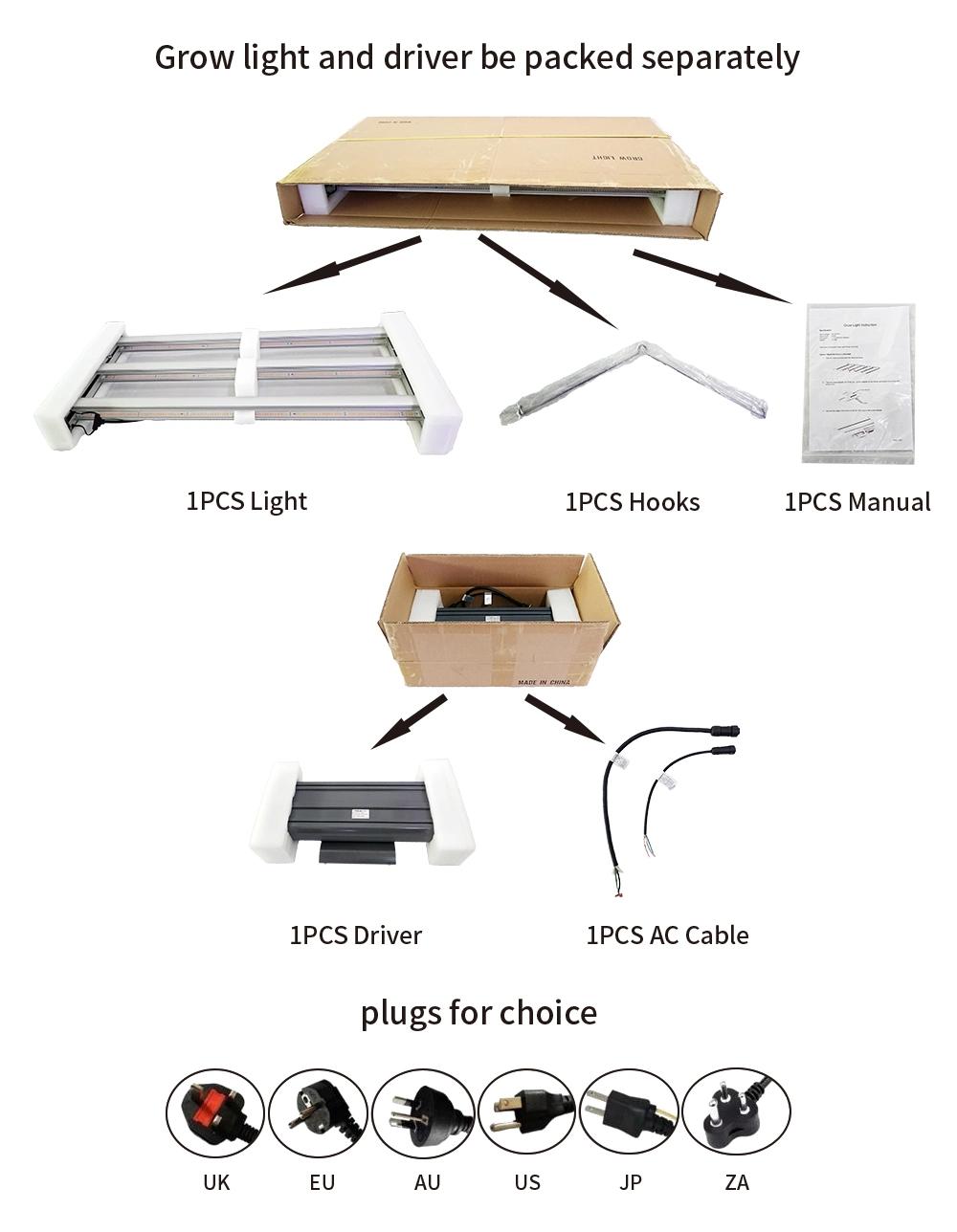

Package:

Super thick carton +EPE to make sure the safety of the products during transportation.
Lights Carton dimension: 119*33*62(cm), 2pcs /carton.
Driver Carton dimension: 50*28*25(cm), 2pcs/carton.

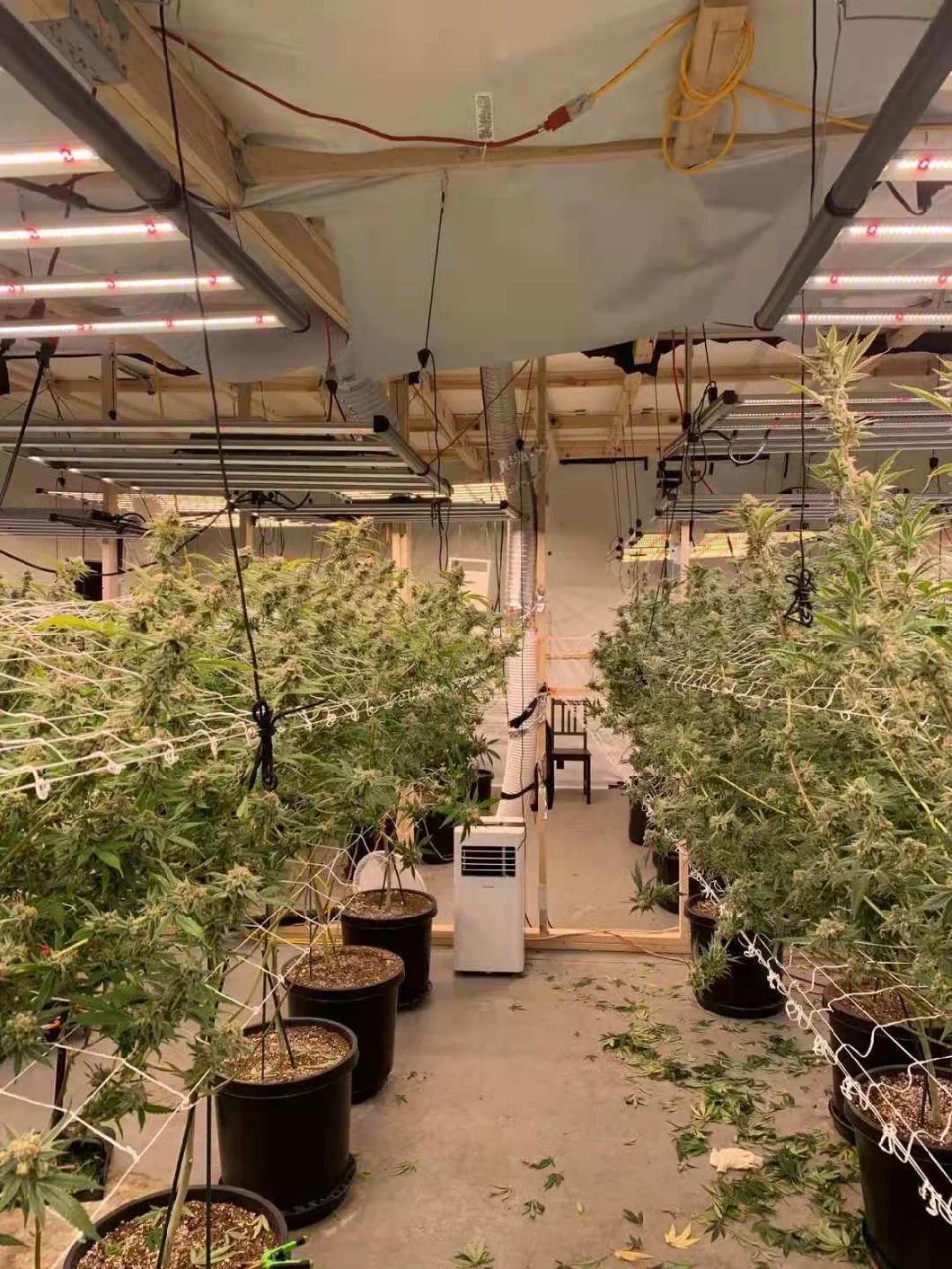

Application:

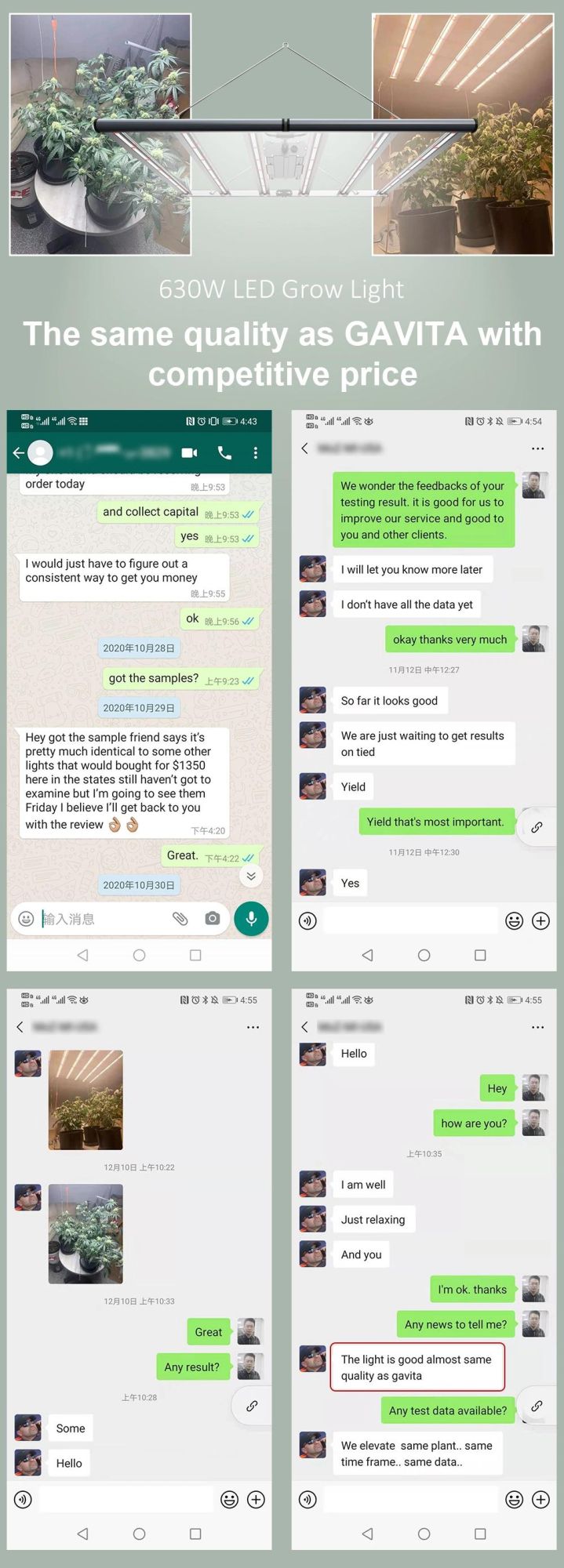

Customer Feedback:

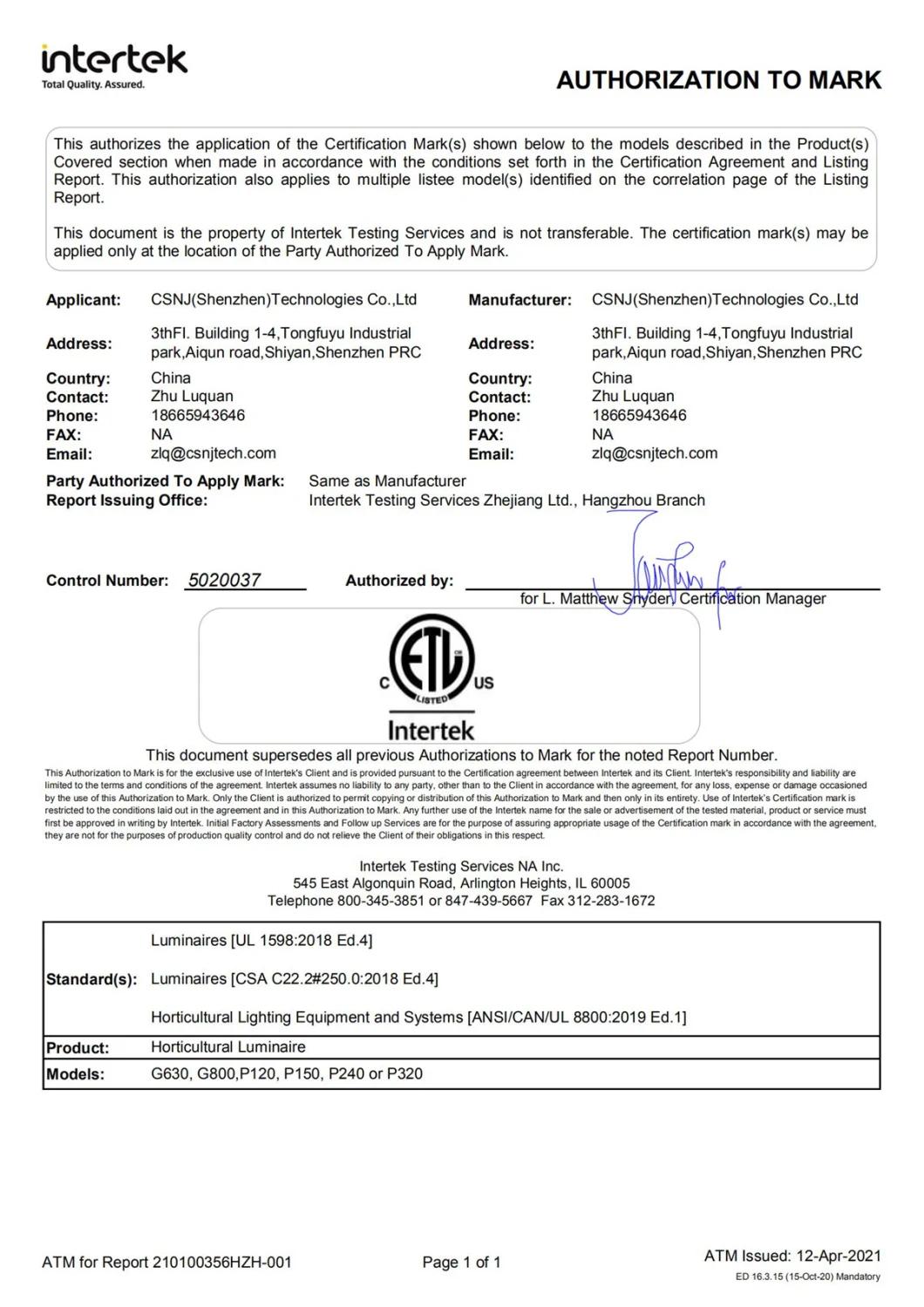

Certificates:

Company Information:
Shenzhen CSNJ Technologies Co.,Ltd is a Hi-tech enterprise and specialized in  researching , designing and manufacturing led lights and lighting products. Our main products including led grow light, wall washer, linear light, flood light and pixel point lighting products. And covers led grow lights, municipal projects,landscape lighting and lighting projects.

The Management team have over 10 years experience in led lighting industry field, adhere to innovative research and quality oriented guideline for management and being flexible and efficient to provide customers with high quality products and service.

The company owns complete lab devices to ensure the quality,performance and reliability of the products. Including Light-distribution Photometer, Integrating Sphere,High and low temperature reliability test box, Hi-pot Tester, Vibrostand, Salt Spray Tester, Waterproof Test Equipment and and some other related testing devices. These devices ensure that we have the ability to respond to customer requests at any time, while ensuring that every product we develop is validated and of high quality.




The company has passed the ISO9001 system certification, in strict accordance with the requirements of the ISO9001 system to establish the company's quality, production, research, supply chain and customer service standards and strict implementation.In addition to the above mentioned equipment, the company also set up an independent temperature and humidity controlled electronic warehouse and aging workshop to ensure the quality of our products

Since the establishment of CSNJ, the company adhering to the flexible and efficient, innovative enterprise philosophy;Keep improving, slow and steady, use advanced product design technology, flexible and diverse ways of cooperation, from technical consulting, plan implementation to installation and debugging, after-sales service and other aspects, to provide customers with zero-distance one-to-one service.

The company has established close cooperative relationship with Cree, OSRAM and Samsung, and also cooperate with high reliability power suppliers closely to provide customers with customized solutions to meet special requirements.


Shenzhen CSNJ Technologies Co.,Ltd is committed to innovation, and strives to become a leading enterprise in LED lighting industry by providing customers with high-quality services with high efficiency and cost-effective products.
