• IP：65
• Ik：08
• Lifespan：50000hours
• Cable Gland：PC Brass or Stainless
• Lock：PC or Stainless Steel Clips
• Warranty：5years
• Length：2FT,4FT,5FT
• Width：Single,Double T8
• Transport Package：Carton
• Specification：PC PC
• Trademark：longlux
• Origin：China
• Production Capacity：1000000

Basic Info.

IP 65 Ik 08 Lifespan 50000hours Cable Gland PC Brass or Stainless Lock PC or Stainless Steel Clips Warranty 5years Length 2FT/4FT/5FT Width Single/Double T8 Transport Package Carton Specification PC PC Trademark longlux Origin China Production Capacity 1000000

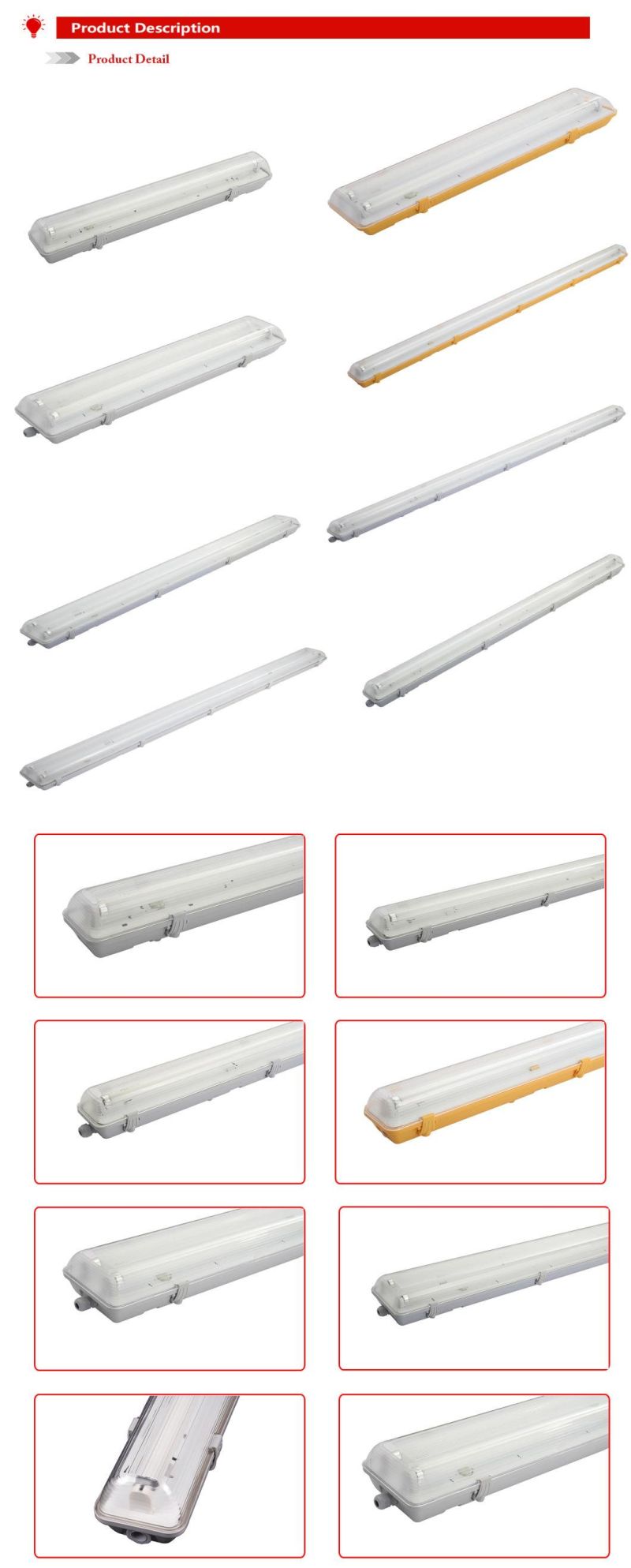

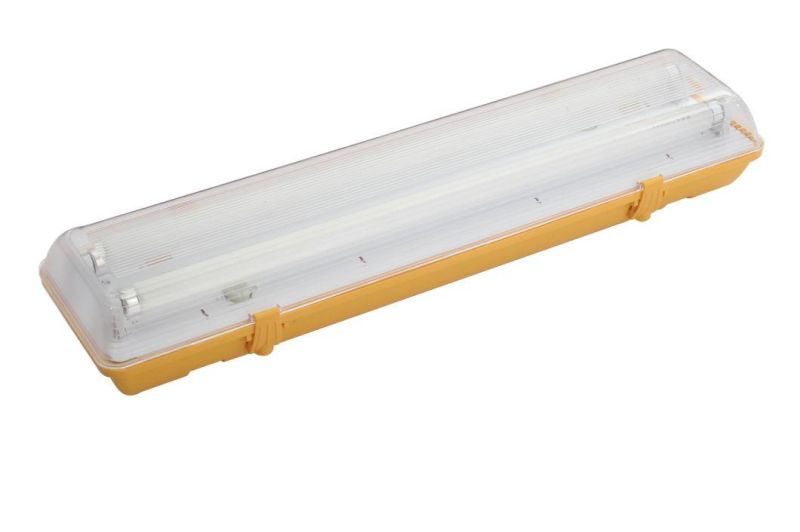

Product Description

Feature1. Unique design,CE, ROHS listed.
2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement
4. PC Transparent diffuser & Micky diffuser, PC & stainless steel for your option

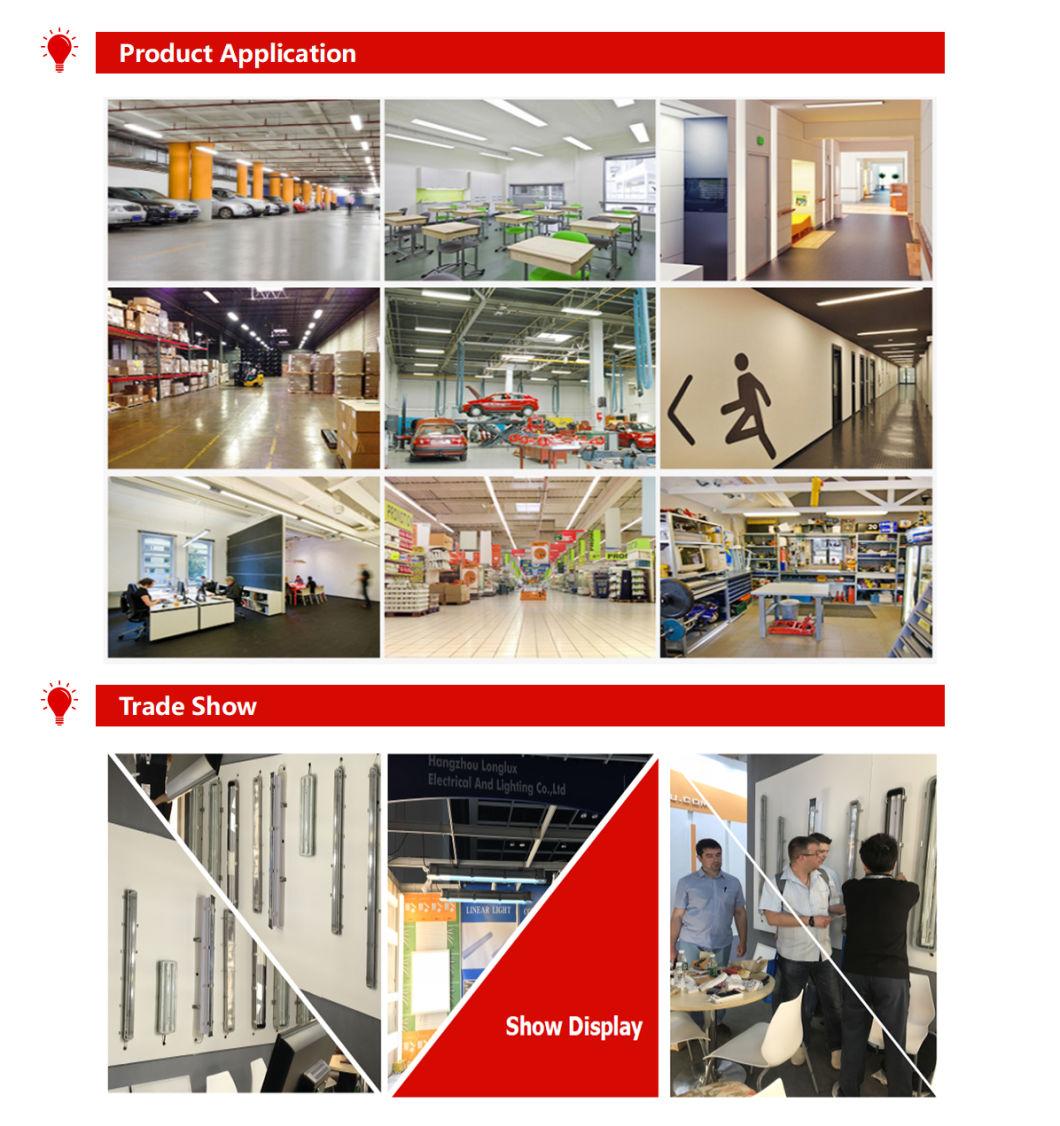

5. Application: Parking place, Tunnel, Railway Station,Warehouse.
6. Easy and fast ceiling installation, no dark area, no noise.
7. Also suitable for different ballast and tube according to client's requirements
8. Long life electronic or magnetic ballast for fluorescent tube.
9. High luminous efficency, low power consumption.
 Specification

Model	LLX-TriProof-118G	LLX-TriProof-218G	LLX-TriProof-136G	LLX-TriProof-236G	LLX-TriProof-158G	LLX-TriProof-258G	LLX-TriProof-170G	LLX-TriProof-270G
Max Watt(W)	1*18	2*18	1*36	2*36	1*58	2*58	1*70	2*70
Lamp	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube	T8 Fluorescent Tube
Clip Q'ty(pcs)	4	4	8	8	10	10	12	12
Dimensions(MM)	655*105*110	655*165*110	1265*105*110	1265*165*110	1565*105*110	1565*165*110	1865*105*105	1865*159*105
Installation size(MM)	478	478	907	907	907	907	1170	1170
