Rechargeable LED Strobe Shoulder Light

ZHEJIANG STARS PLASTIC SAFETY DEVICE CO., LTD.
  • Color Temperature：Pure White
  • Emitting Color：Blue
  • IP Rating：IP65
  • Power：≤5W
  • Application：Industrial
  • LED Chips Brand：Osram

Base Info

  • Model NO.：PSL-001
  • Voltage：12V
  • Voltage Type：DC
  • LED Type：SMD 3020
  • Certification：CQC, CE, RoHS
  • Size：80X30X26mm
  • LED Quantity：6PCS
  • Function：Red Blue Flash Together
  • Rechargeable：Yes
  • Bulb Type：LED
  • Emergency Time：6-7h
  • Installation Mode：Metal Clip
  • Operation Mode：Maintained
  • Usage：Traffic lights
  • Charging type：Rechargeable
  • Battery Type：Ni-MH Battery
  • Material：Plastic
  • Transport Package：Carton
  • Specification：packed by box
  • Trademark：SP
  • Origin：China
  • HS Code：85308000
  • Production Capacity：5000PCS,Month

Description

Basic Info.

Model NO. PSL-001 Voltage 12V Voltage Type DC LED Type SMD 3020 Certification CQC, CE, RoHS Size 80X30X26mm LED Quantity 6PCS Function Red Blue Flash Together Rechargeable Yes Bulb Type LED Emergency Time 6-7h Installation Mode Metal Clip Operation Mode Maintained Usage Traffic lights Charging type Rechargeable Battery Type Ni-MH Battery Material Plastic Transport Package Carton Specification packed by box Trademark SP Origin China HS Code 85308000 Production Capacity 5000PCS/Month

Product Description

Police shoulder light
Rechargeable shoulder light
Police flashing light
Flashing warning light
Police shoulder led light
Police shoulder warning light
Police shoulder protector

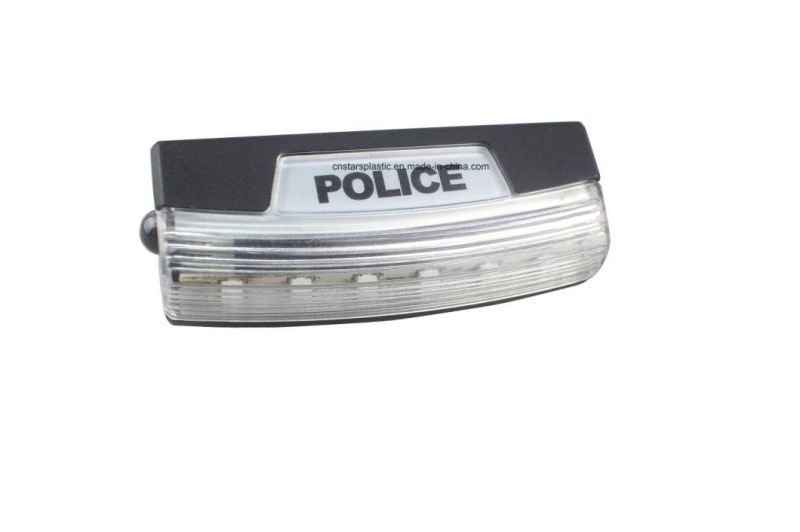

Rechargeable LED Strobe Shoulder Light
SPECIFICATION
Size: 80x30x26mm
Weight: 45g
LED number: 6pcs
Rated voltage: 3.7-4.2(VDC)
Rated current: Red Blue flash together= 175mA, Illuminating light= 61mA
Working frequency: Slow=3HZ, Medium=4.5HZ, Fast=8.4HZ
Charging time: 2 hours
Working time: Red/blue flash > 8 hours
White light: > 9 hours
Power supply: AC110V - 200V turn to DC5V1000MA charger
Battery capacity: 600mAH
Work temperature: -20°C- +60°C
Visible distance: 800m
Rechargeable LED Strobe Shoulder Light

Rechargeable LED Strobe Shoulder Light
Rechargeable LED Strobe Shoulder Light

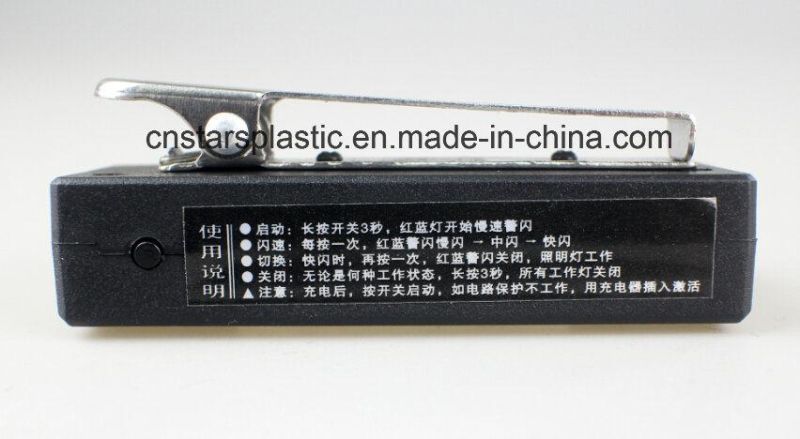

INSTRUCTION
1,Keep pressing the switch for 3 seconds to turn on the power, first function with red and blue slow flash
2,Press the switch to change the function to red and blue middle speed flash
3,Press the switch again to change the function to red and blue quick flash
4,Press the switch again to change the function to white lighting
5,Keep pressing the switch for 3 seconds to turn off the power in any functions

FEATURE
1. Multifunctional, 3 kinds of blinking speed, emergency white lighting
2. Visual range 800m
3. Light-weight, small size, metal clip
4. Rechargeable, after a full charge can work more than 9 hours
5. Can be caught in the shoulder or collar on the safety warning role
