• Model NO.：FG-UWL260-B-252P
• Style：Modern Chinese Style
• Base Type：Wall Mounted

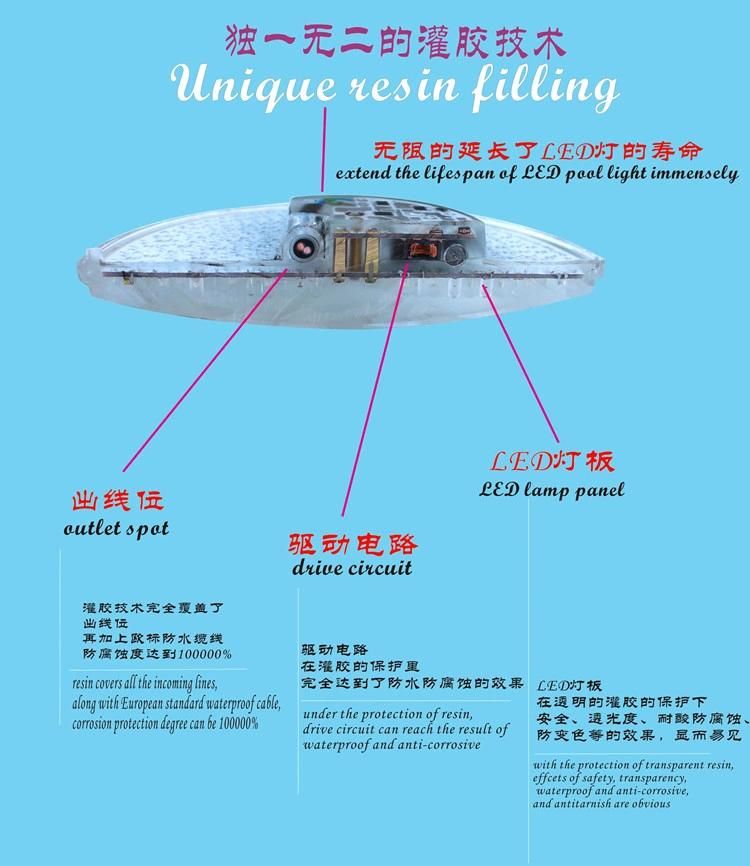

• Technics：Epoxy Resin Filling
• Voltage：12V
• Certification：CE, LVD
• LED Qty：252PC 3014SMD,2835SMD
• Power：18W
• Single Color：Warm White; Cool White, Yellow, Red, Blue, Green
• Installation：Surface Mounted
• Warranty：2years
• Beam Angle：120degree
• Size：260*40mm
• Waterproof：IP68
• The Length of The Cable：2meters
• RGB Model：Inner Controlled, on,off Switch, Remote
• Transport Package：Neutral Color Box
• Specification：CE, RoHS
• Trademark：Future Green or OEM
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. FG-UWL260-B-252P Style Modern Chinese Style Base Type Wall Mounted Technics Epoxy Resin Filling Voltage 12V Certification CE, LVD LED Qty 252PC 3014SMD/2835SMD Power 18W Single Color Warm White; Cool White, Yellow, Red, Blue, Green Installation Surface Mounted Warranty 2years Beam Angle 120degree Size 260*40mm Waterproof IP68 The Length of The Cable 2meters RGB Model Inner Controlled, on/off Switch, Remote Transport Package Neutral Color Box Specification CE, RoHS Trademark Future Green or OEM Origin Guangdong, China HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

IP68 18W 24W 30W 35W 42W  Wall Mounted LED Pool light

1. Item No.: FG-UWL260*40-252P
2. Dimension(mm): 260*40mm
3. Material: PC
4. Color: RGB/White/Green/Blue/Warm White
5. Voltage(v): AC 12V
6. LED Qty(PCS): 252pcs(333pcs 441pcs 531pcs 630pcs optional)
7. Power(w): 18W (24W 30W 35W 42W optional)
8. Viewing angle: 120degree
9. Net Weight (kg): 1.25
10. Packing: 10PCS per exported carton

Voltage Details:
Single color: R/Y/B/G/CW/WW         (AC/DC12V)
RGB on/off controlled                   (AC12V)
DMX512 Controlled 4wires              (DC12v)
External controlled 4wires               (DC12V)
RGB 2wires PLC controlled             (AC12V)

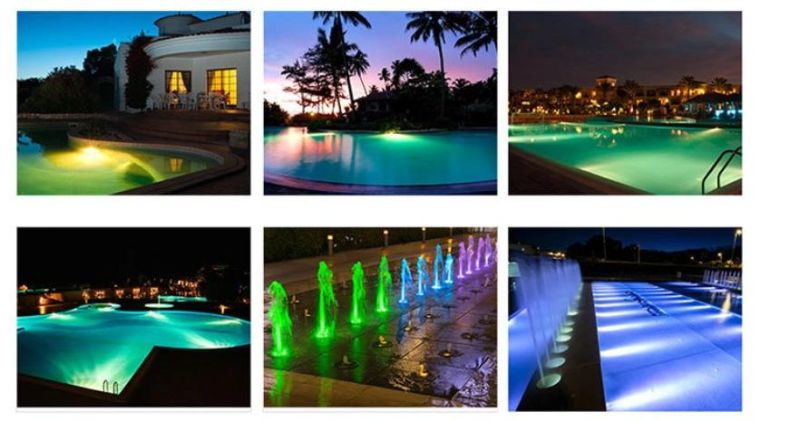

Applications:
1.Swimming pool
2.water-fall, park
3.fountain spring
4.garden
5.park
6.other outdoor place...

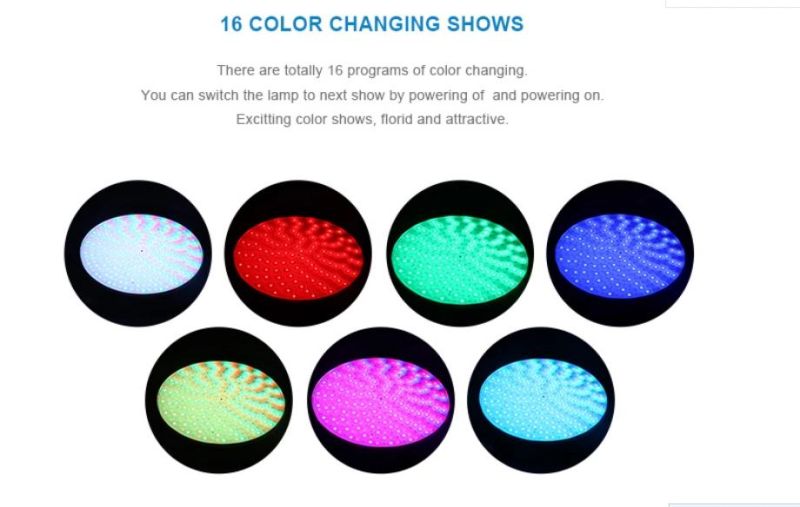

Colors changing details: (Can be customized)
for RGB on/off controlled with memory (totally 16models:
1. White (Red+Green+Blue)
2.RED
3. Green
4.Blue
5. Skyblue(Green+blue)
6. Orange(Red+green)
7.Purple(red+blue)
8. static Blue color, Red gradually changing
9. static Green, Red gradually changing
10. static Blue, Green gradually changing
11. static white(Cool white)
12.G→B→GB→RG→RB→RGB→R Slow gradually changing in circulation
13.R→G→B→GB→RG→RB→RGB→RG→G→GB→B→RB→R gradually changing in circulation
14.R→G→B Jumpy changing from fast to Slow→R→(R→B→G) Jumpy changing from fast to Slow→(R→RB→RG→G→GB→RB→RG→GB)fast  gradually changing,then changed circulation
15,RG→G→GB→B→RB→R  Slow gradually changing in circulation
16. Program 14 +13 in Slow gradually changing in circulation


Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.


Installation procedure:
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures

Cautions:
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

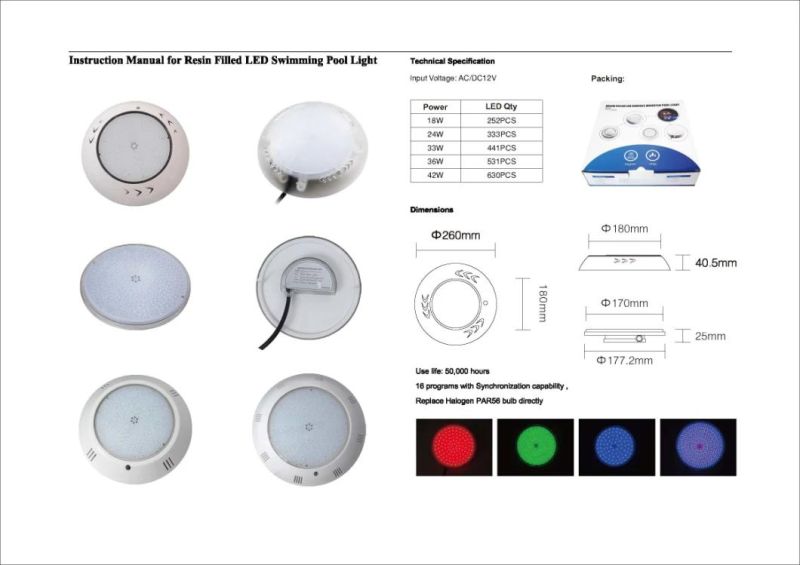

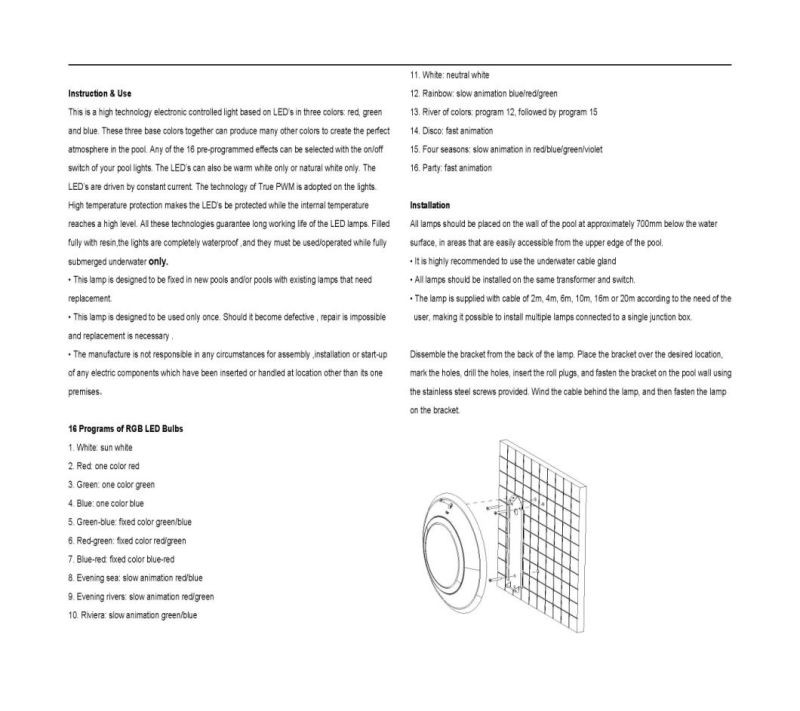

Manuel:








Technology:








About Us:

We are the most professional LED Swimming Pool Light, Wall-mounting Pool Lamp, Par56 Pool Light, High Power Par56 Lights Par56 Light, Underwater light, high power underwater, LED In ground Light, Flood lamp, Underground lightHigh power underground manufacturers and suppliers in China.

Our swimming pool lights is sale or export to Australia, New Zealand, Thailand, Indonesia, Malaysia, Philippines, Singapore, Vietnam, UAE, Sandi Arabia, South Africa, Poland, Sweden, Spain, Greece, Italy, Russia, Netherland, Danmark, Belgium, USA, Canada, Braizil, Maxico,UK etc.

 Welcome to further discussion.
