• Model NO.：94631
• Style：Modern simplism style
• Base Type：LED+MPCB
• Technics：Stainless Electrolytic Polishing
• Voltage：12V,24V
• Certification：CE, EMC, RoHS
• Lens：Optional Lens, Efficiency ≥ 85%
• Beam Angle：8,15,25,30,45,60,90 Degrees,Asymmetrical Lens
• LED Chip：Optional CREE,Osram,Bridgelux
• Working Temperature：-20-40 Centigrade
• Glass：Tempered Glass T=8mm
• Transport Package：Shockproof Carton Box
• Specification：8PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 94631 Style Modern simplism style Base Type LED+MPCB Technics Stainless Electrolytic Polishing Voltage 12V/24V Certification CE, EMC, RoHS Lens Optional Lens, Efficiency ≥ 85% Beam Angle 8/15/25/30/45/60/90 Degrees/Asymmetrical Lens LED Chip Optional CREE/Osram/Bridgelux Working Temperature -20-40 Centigrade Glass Tempered Glass T=8mm Transport Package Shockproof Carton Box Specification 8PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

LED Swimming Pool light Super Waterproof Lamp Safe Colorful Underwater Light Device

Our LED underwater light 9463 series have all passed waterproof IP68, CE, RoHS certifications, 3 lamp beads, watts and angles are optional according to your requirements. Lens can be normal and asymmetrical, working voltage is standard safe voltage.

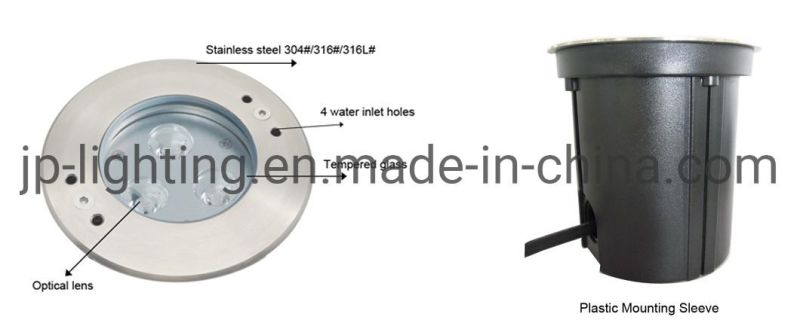

1. 304# or 316# stainless steel, high light transmittance tempered glass, anti-aging silicone ring.
2. Waterproof grade: IP68.
3. The imported BRIDGELUX/CREE/OSRAM chips, high brightness, low energy consumption, low heat, long life.
4. Lens: Made of PMMA, also known as Acrylic or Plexiglas optical lens, light efficiency ≥ 85%. Beam angles optional at clients' request.
5. Cable gland: IP68 waterproof rating, brass material.
6. Power cord: European standard H05RN-F rubber cable, wear resistance, corrosion resistance, heat resistance and not easily deformed. The Default length is 2m, for convenient maintenance and repair.
7. Multiple light color options: cold white, warm white, neutral white, red, green, yellow, blue RGB, RGBW etc.
8. Multiple control methods are supported: constant light, RGB simple control, DALI, DMX512 parallel external control.
9. Long life, up to 50,000 hours.

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
94631(AS)	3x1W	8°/15°/25°/30°/45°/60°/90°	3.3	DC12V/DC24V	08
94632(AS)	3x2W	8°/15°/25°/30°/45°/60°/90°	7	DC12V/DC24V	08
94633(AS)	3x1W RGB	8°/15°/25°/30°/45°/60°/90°	3.1	DC12V/DC24V	08
94634(AS)	3x2W RGB	8°/15°/25°/30°/45°/60°/90°	6.5	DC12V/DC24V	08
94636(AS)	3x3W RGB3in1	25°/30°/45°/60°	9.2	DC12V/DC24V	08

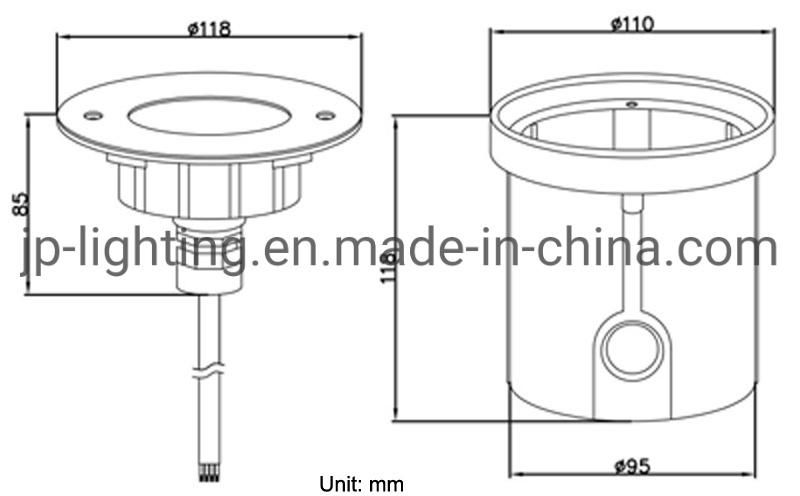

Product Dimension

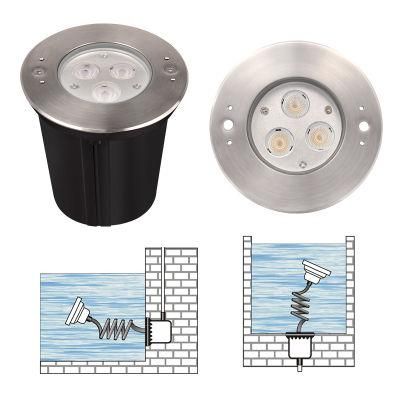

Product Image

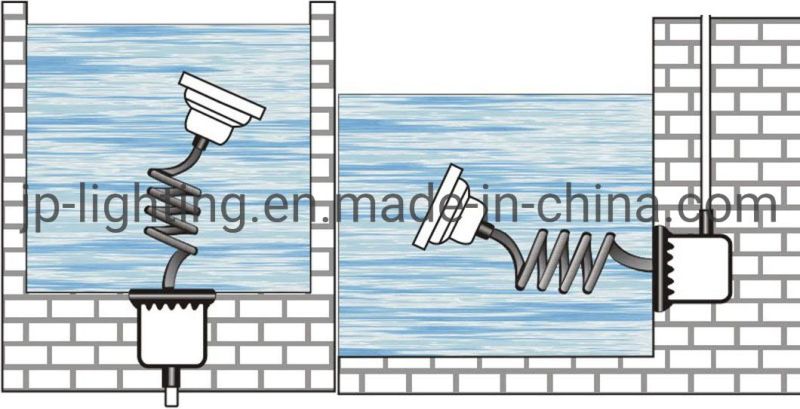

Product Installation
Water must be allowed to go inside and outside sleeve freely without leaking to the other side.
*Warning:
Must be installed under the water to prevent the lights from being burnt off because of the over-heating.

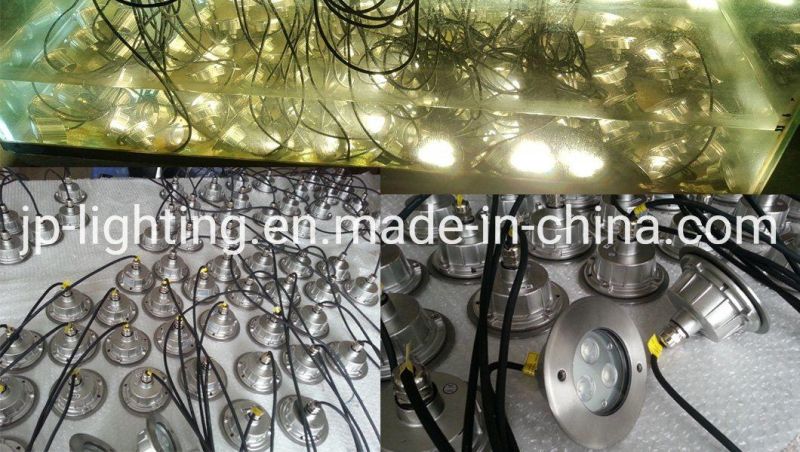

Production and Test

Product Application
LED underwater lights are widely used in fountains, pools, swimming pools, gardens, public squares, project lights, buildings, stages and many other landscapes.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
