• Model NO.：LED 025
• Shade Direction：Up
• Input Voltage：220v
• Shade Type：PC
• LED Chips Brand：Natural
• Certification：RoHS, LVD, EMC, CE
• Power Consumption：Max. 5W
• Luminosity：400lm at 120°
• Service Life：60,000h at +20°c (+68°f)
• Casing：Plastic, Transparent
• Weight：0.2kg
• Transport Package：Sea, Land and Air Transportation, Carton Packaging
• Specification：LED 025
• Trademark：Natural
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：10000,Week

LED 025Power consumption max. 5WLuminosity 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb)Lamp typeLED, angle of radiation 120°
light color: daylight, color temperature: 6,000K to 7,000KService life60,000h at +20°C (+68°F)Connection2-pole connector with snap lock
AC: max. 2.5A / 240VAC, color: white
DC: max. 2.5A / 60VDC, color: blueMounting magnet fixing or screw fixing (M5), clip fixing (M6),

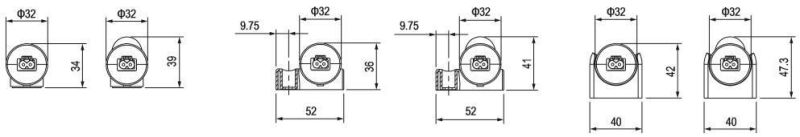

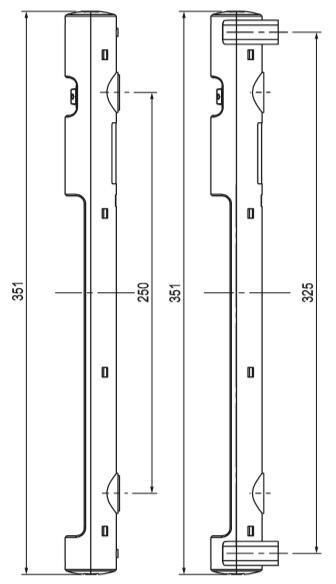

torque 2Nm max.Casing plastic, transparentDimensions see drawingsWeight 0.2kgOperating/Storage temperature -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)Operating/Storage humidtymax. 90% RH (non-condensing)Protection type/Protection classIP20 / II (double insulated)

Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure.
A classic is the LED 025-C with screw fixing. The clip holders exclusively designed for clip fixing of the LED 025-C can
be positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip
holders and can be turned in both directions. With a total rotation angle of 180° it provides perfect illumination within
the cabinet or enclosure.



Note: The lamp must not be used for household lighting.


Art. No. Fixing type Switch  Operating voltage862769Magnet fixingon/off light switch100-240VAC, 50/60Hz (min. 65VAC, max. 265VAC)862770Screw fixingon/off light switch100-240VAC, 50/60Hz (min. 65VAC, max. 265VAC)



¹ approx. 5 min. fixed switch-on duration
