• Model NO.：LEK02-3NC
• Battery Type：Ni-Cd Battery
• Emitting Color：Cool White
• Material：Aluminum
• Certification：CE, RoHS, CB
• Transport Package：Color Box
• Specification：40mm Cutout hole
• Trademark：flolite
• Origin：China
• HS Code：8504401400
• Production Capacity：3000PCS,Day

Basic Info.

Model NO. LEK02-3NC Battery Type Ni-Cd Battery Emitting Color Cool White Material Aluminum Certification CE, RoHS, CB Transport Package Color Box Specification 40mm Cutout hole Trademark flolite Origin China HS Code 8504401400 Production Capacity 3000PCS/Day

Product Description

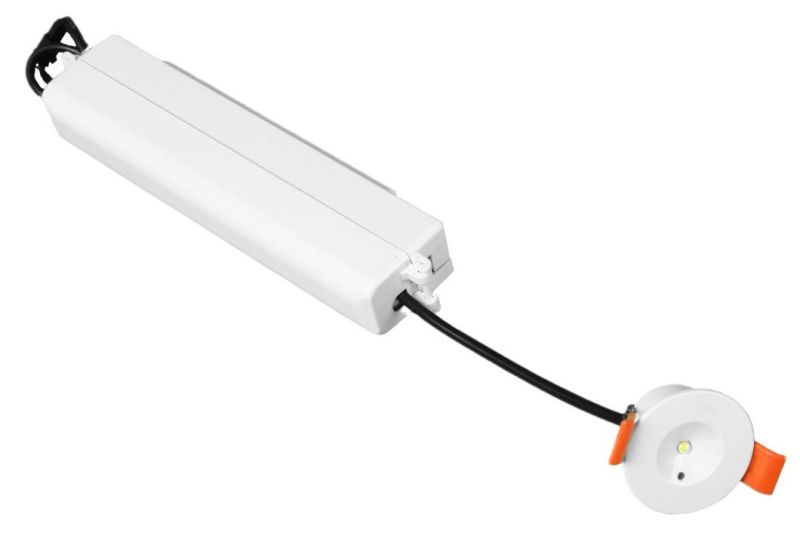

CB Approved 3W LED Emergency light with Ni-Cd batteries 3Hours Backup

Relevant Standard

EN 60598-1	EN 61000-3-2	IEC 60598-1	IEC61000-3-2
EN 60598-2-22	EN 61000-3-3	IEC 60598-2-22	IEC 61000-3-3
EN 61347-1	EN 62471	IEC 61347-1	IEC 62471
EN 61347-2-13	EN 62493	IEC 61347-2-13	IEC 62493
EN 61347-2-7	EN 55015	IEC 61347-2-7	IEC 55015
EN 62778	EN62031	IEC 62778	IEC62031



Product Parameter

Model No.:	LEK02-3NC	Battery:	Ni-Cd, 3.6V 2000mAh
LED Chips:	CREE XT-E	Luminous Flux:	150lm
Power Consumption:	3W	Input Voltage:	AC220-240V~50/60Hz
Charge time:	24Hours	Emergency duration:	3Hours
ta:	0~35ºC	Max. Case Temp.:	70ºC
Protection Class:	II	IP Rating:	IP20
Operation:	Non-maintained	Function:	AUTO test

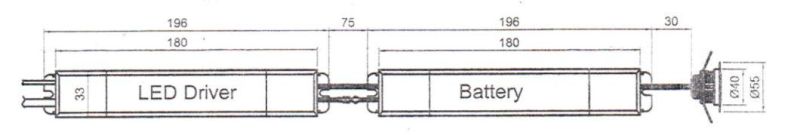

Dimension

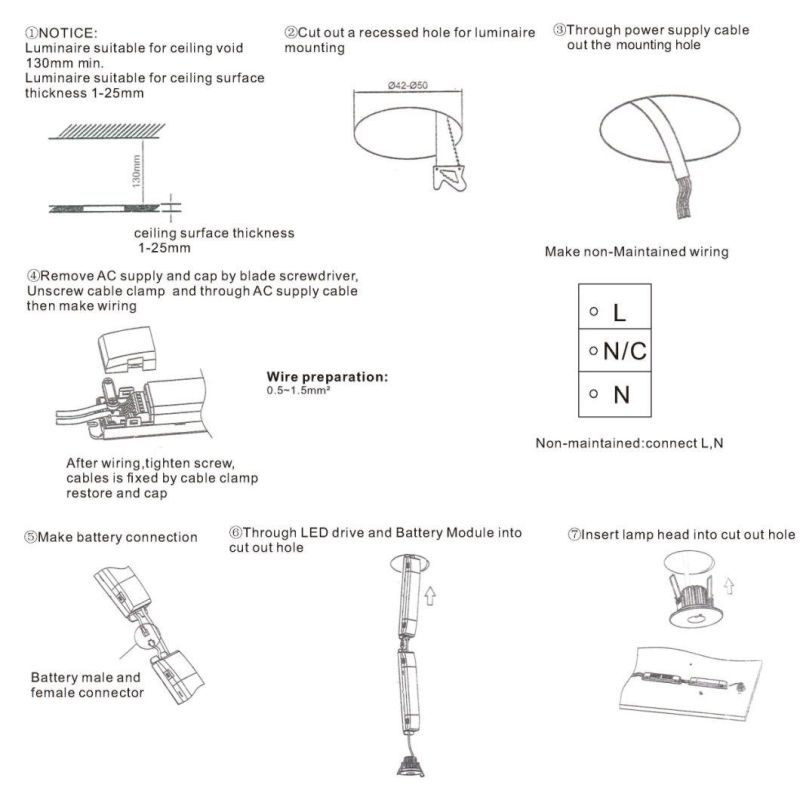

Installation Diagram

                                   Wire preparation:

                                   0.5~1.5mm²

AUTO Test

∷ Commissioning test-

Connection of the mains supply will initiate commissioning where the battery will remain on charge for an uninterrupted 24 hours; An interruption of the mains supply will reset the counter to zero.

After 24hours, the luminaire will be put into a duration test for the rated period, immediately followed by another 24hr charge period.



∷ Function test-

A 5 second functional test is carried out at 1 week interval.



∷ Duration test-

A full rated duration test is carried out at 13 weeks intervals.

System status is indicated by a bi-color LED.



LED indication	Status	Commentary
Permanent green	Everything works correctly
One flashed 4 seconds pause	Battery failure	Battery is not connected
Two flashed 4 seconds pause	Battery failure	Battery short or low battery   Voltage
Three flashed 4 seconds pause	Load failure	LED failure
Green and Red off	DC mode	Battery operation (Emergency   mode)



Special Notes

∷ This product should be installed by a registered electrician in accordance with local standards and electrical regulations;

∷ Take care to ensure the mains supply is isolated before installation;

∷ The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced;

∷ The whole luminaire should be replaced when they no longer meet their rated duration of operation after the corresponding recharge period.
